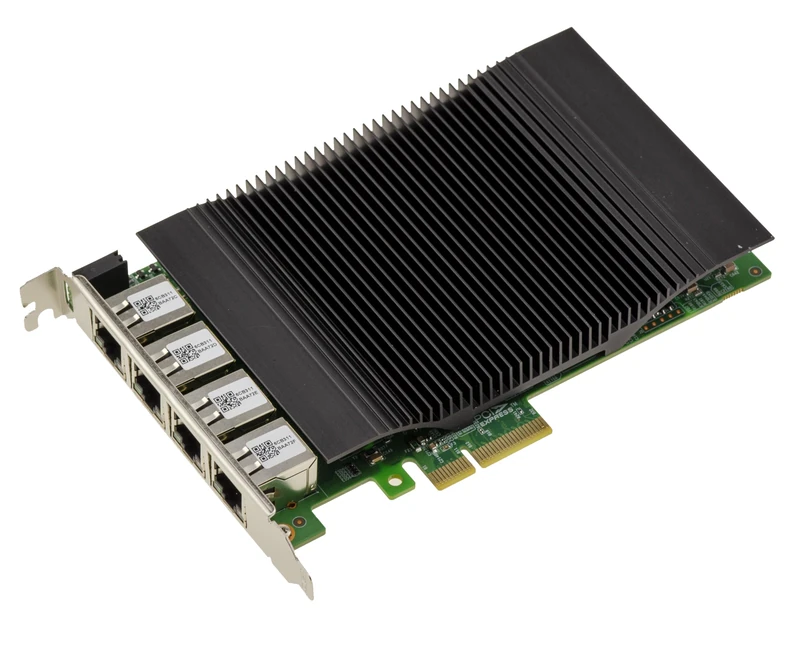

KALEA-INFORMATIQUE Realtek RTL8126 PCIe x4 Network Controller Card with 4 Ports 5 Gigabit RJ45 Power Over Ethernet PoE+ 30W by Port Chipset

High Performance Controller: Based on the Realtek RTL8126 controller, this card incorporates four independent 5Gbps Ethernet ports with PoE+ power up to 30W per port

Wide compatibility: PCI Express Gen3 x4 for Gen 3.0 or higher ports in x4, x8 or x16. Supported operating systems Windows, Linux. Supports IEEE 802.3 / 802.3u / 802.3ab / 802.3bz / 802.3x. IEEE 802.3at PoE (PoE+) standard. CAT6 / CAT6A / CAT7 network wiring up to 100 m

Technical specifications: Realtek RTL8126 controller with 4 independent RJ45 ports. 100 Mbps / 1 Gbps / 2.5 Gbps / 5 Gbps per port. PoE power up to 30W per port, total PoE power up to 90W

Advanced management and protection: PoE management control hardware + software. Programmable PoE management software tool + real-time monitoring. PoE protection by resettable electronic fuse (eFuse). Electric protection ESD 8KV/4KV surge. PCIe power connection + 12V ATX input

Professional networking features: Multi-queue network functionality, traffic shaping, advanced management. PXE and Jumbo frame support. LED indicators link status and activity. Operating temperature 0°C to 50°C. Card dimensions 156.7 × 104.4 mm
