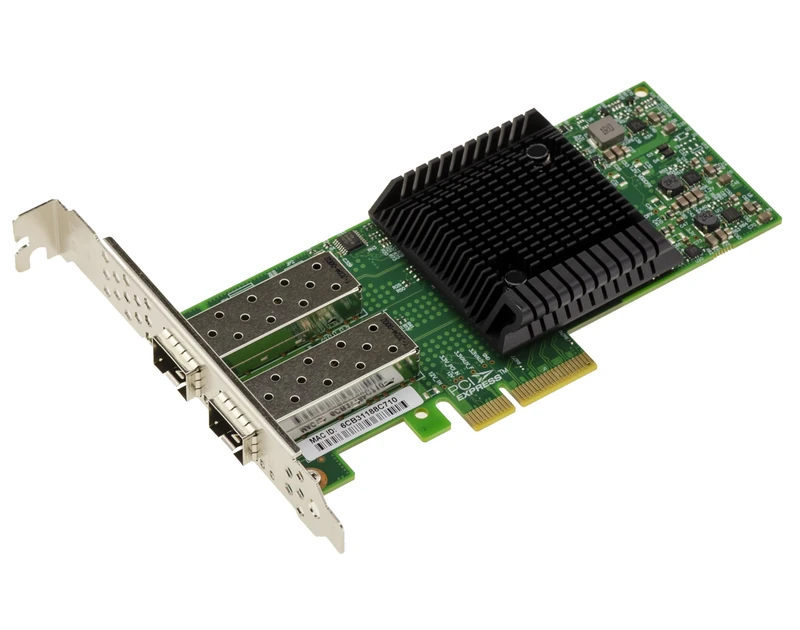

KALEA-INFORMATIQUE PCIe x4 Controller Card for 10G LAN Fiber SFP+ with 2 Ports, MELLANOX ConnectX-4 Chipset, Support for RDMA, SR-IOV, PXE

Dual Port 10 Gigabit Ethernet Card: PCIe x4 format, based on the Mellanox ConnectX-4 controller. It also integrates advanced technologies such as RDMA, PXE and SR-IOV, optimizing performance, virtualization and resource management

Comprehensive Compatibility Compatible with Windows, Windows Server, Ubuntu, Debian, RHEL/CentOS, SUSE, Rocky, FreeBSD, VMware ESXi, Mikrotik, OpenEuler, Kylin OS, UOS, Fusion OS etc. It supports key IEEE network standards (802.3, VLAN, QoS, etc.) and ensures seamless integration with most existing network architectures

ADVANCED TECHNICAL SPECIFICATIONS Mellanox ConnectX 4 Chipset PCIe Gen 3.0 x4 Compatible with x4, x8 and x16 ports. Two SFP+ ports with data rates of up to 10Gb/s per port. Supports DAC connections as well as SR/LR optical modules. Supported protocols: IEEE 802.3ae 10 Gigabit Ethernet, IEEE 802.3az Energy Efficient, IEEE 802.3ap, IEEE 802.3ad, IEEE 802.1AX, IEEE 802.1Q, 802.1P VLAN, IEEE 802.1Qaz (ETS), IEEE 800 2.1Qb1Qb (PFC), IEEE 802.1Qbg, IEEE 1588v2

Virtualization technologies and performance: RDMA compatible (direct data transfer between storage without CPU load). SR-IOV compliant (virtualization into multiple independent network interfaces). PXE / UEFI (system startup and provisioning over the network). End-to-end QoS for optimized network traffic management. Jumbo frames (up to 9.2 KB)

Physical and energetic properties: power consumption between 5.9W and 9.3W depending on usage. Operating LEDs Supplied with low profile and full height brackets. Recommended operating temperature between -10°C and 60°C. Dimensions: 142.3 x 68.7 x 10 mm
