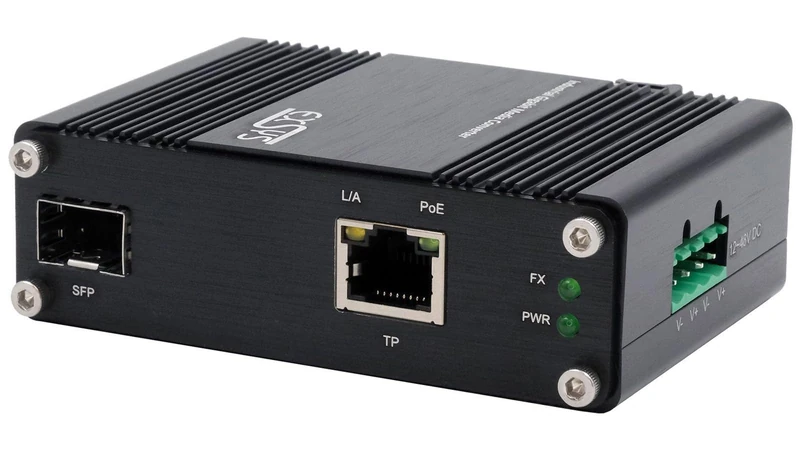

EXSYS EX-60340 Industrial Media Converter 60W SFP -40°C to +75°C

Reliable conversion between copper and optical fiber The compact EX-60340 media converter, suitable for industrial use, offers reliable conversion between copper and fiber optic environments. It is compatible with 10/100/1000Base-T with 60W PoE+ and dual mode 100/1000Base-X SFP (automatic detection). The Ethernet port supports half duplex and full-duplex modes. Depending on the requirement, different types of optional SFP modules can be used. Thanks to its robust metal housing and extended operating temperature range from -40°C to 75°C, it is suitable for a multitude of applications, even in harsh environments. Power supply is supplied by terminal block (12~48 VDC). The EX-60340 supports Auto-MDI/MDI-X and Auto-Negotation. A DIN rail kit (pre-assembled) and a wall mounting bracket are included. • 1 x 10/100/1000T RJ45 port, 1 x 100/1000X SFP slot, automatic detection • Fully compliant with IEEE 802.3af/at Power Over Ethernet (PoE) • Maximum Power Delivery (PD): Type 1 = 12.95 W / Type 2 = 25.50 W / 4PPoE+ = 60 W • Fully compliant with IEEE 802.3af/at Power Over Ethernet (PoE) • Auto-MDI/MDIX makes crossover cables superfluous • Supports auto-negotiation and full-duplex half-duplex • Power via 12 V to 48 VDC terminal block • The Power Booster generates a PoE voltage range of 46 to 57 VDC • Robust and very compact metal housing, IP40 • DIN rail kit and wall mounting bracket included • Extended operating temperature range from -40°C to +75°C
