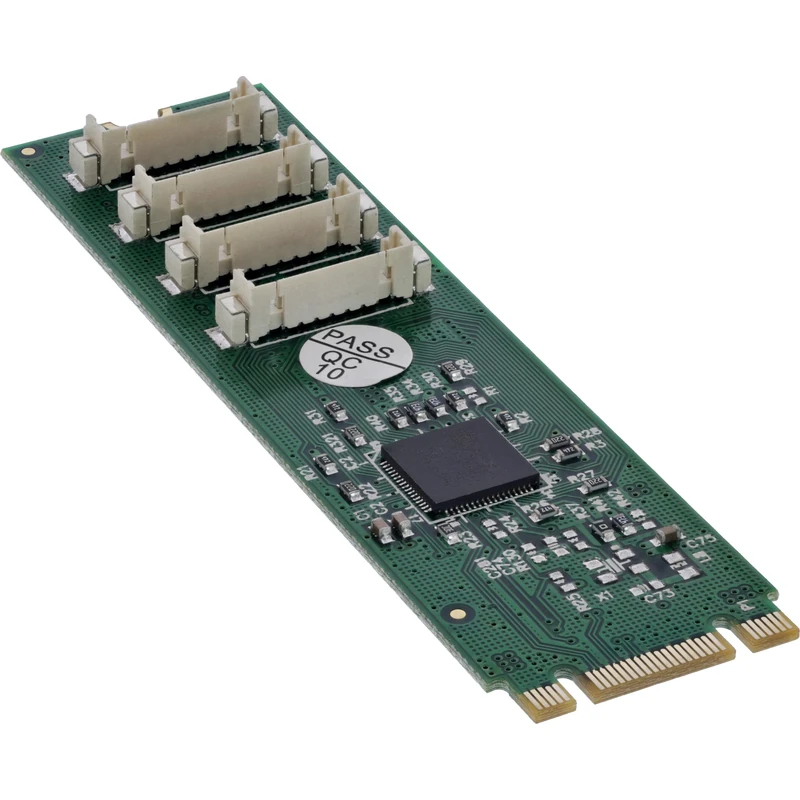

InLine Interface Card M.2 to 4X Serial 9-Pin Connector with Low Profile Bracket 76660W

The InLine® interface card M.2 to 4x serial 9pin connector allows the use of up to four serial ports (DB9-9pin) and offers a powerful conversion from M.2 to serial communication. The card is equipped with a PCIe 3.0 x4 interface and supports data rates of up to 4 Gb/s. Automatic lane detection at boot ensures seamless system integration. The card is powered directly from the PCIe bus (3.3 V). Low-profile brackets are also included in the scope of delivery, so that the card can be used in more compact systems. Technical data: Bus type & PCIe: PCIe 3.0 x4 (maximum bandwidth up to 4 Gb/s) Controller/chipset: ASIX AX99100 Connectors - Interfaces: 1 x M.2 slot (key M) for module connection. 4 x serial 9-pin connector (DB9-9pin). Compatible module sizes: 2230, 2242, 2260, 2280 Dimensions: 22 mm x 80 mm (M.2 board). Operating temperature: -40°C to +85°C. Functions: Automatic lane detection during boot process. LED indicator to indicate read/write activity Powered by PCIe bus (3.3V) No driver installation required. System Requirements Hardware: Free PCIe x4 slot (also compatible with x8 or x16 slots). Motherboard with PCIe 3.0 or higher Operating System Compatibility: Windows: 11, 10, 8.1, 8, 7. Windows Server: 2012 R2 Linux: from kernel version 2.6. Package includes: 1 x InLine® interface card M.2 to 4x serial 9-pin connector. 4 x low-profile slot brackets. 2 x high-profile slot brackets. 4 x DB9-9pin serial cable (20 cm). 10 x screws. 1 x Driver CD 1 x user manual (German/English).
