£72.29

KALEA-INFORMATIQUE MCIO 8i PCIe 5.0 to 2 Port Adapter Controller Card for NVMe M2 M3 U2 U3 SSD or PCIe Plates

Name: KALEA-INFORMATIQUE MCIO 8i PCIe 5.0 to 2 Port Adapter Controller Card for NVMe M2 M3 U2 U3 SSD or PCIe Plates
Brand: KALEA-INFORMATIQUE
Price: 60.52 GBP
Availability: InStock

Green, 11867926

RAID Controllers

Price History & Forecast

Last 8 days • 8 data points (No recent data available)

Historical

Generating forecast...

Price Distribution

Price distribution over 8 days • 3 price levels

Days at Price

Price Analysis

Most common price: £54 (5 days, 62.5%)

Price range: £54 - £72

Price levels: 3 different prices over 8 days

Description

Low dielectric loss high performance interface conversion board. For NVMe SSD or PCIe connectors via two MCIO 8i 74-pin connectors. Supports up to 4 PCIe or NVMe SSD devices. Compatibility: The adapter does not require a driver for operation or communication with connected NVMe drives. Disks are presented natively to the host and use native NVMe drivers. Compatible with Windows, Mac, Linux, DOS.... Features: PCIe 5.0 x16 type card. Compatible with PCIe Gen5, Gen4, Gen3, Gen2, Gen1. The bandwidth of the card is the bandwidth that the PCIe slot on the motherboard can support. Two MCIO connectors (74 Pin, x8 PCIe Gen 5). Supports up to 4 PCIe or NVMe SSD devices if support via motherboard from bifurcation (x16) to 2x (x8) or 4x (x4) mode. Support for a single NVMe or PCIe device when bifurcation mode is not supported. Direct connection to U2 or U3 NVMe SSD via MCIO 8i cable to SFF-8639. Operating temperature 5 to 50 °C. Dimensions 146.5 mm x 39.4 mm, weight 70.5 g. Card supplied with high and low profile brackets.

Key Features

Low dielectric loss high performance interface conversion board. For NVMe SSD or PCIe connectors via two MCIO 8i 74-pin connectors. Supports up to 4 PCIe or NVMe SSD devices.

The adapter does not require a driver for operation or communication with connected NVMe drives. Disks are presented natively to the host and use native NVMe drivers. Compatible with Windows, Mac, Linux, DOS....

PCIe 5.0 x16 type card. Compatible with PCIe Gen5, Gen4, Gen3, Gen2, Gen1. The bandwidth of the card is the bandwidth that the PCIe slot on the motherboard can support.

Two MCIO connectors (74 Pin, x8 PCIe Gen 5). Supports up to 4 PCIe or NVMe SSD devices if support via motherboard from bifurcation (x16) to 2x (x8) or 4x (x4) mode. Support for a single NVMe or PCIe device when bifurcation mode is not supported.

Direct connection to U2 or U3 NVMe SSD via MCIO 8i cable to SFF-8639. Operating temperature 5 to 50 °C. Dimensions 146.5 mm x 39.4 mm, weight 70.5 g. Card supplied with high and low profile brackets.

Product Specifications

Brand: KALEA-INFORMATIQUE
Model: 11867926
Colour: Green
Format: Personal Computers
ASIN: B0DM9JY7QB
Category: Computers & Accessories > Components & Replacement Parts > I/O Port Cards > RAID Controllers
Domain: Amazon UK
Release Date: 06 November 2024
Listed Since: 10 November 2024

Barcode

No barcode data available

KALEA-INFORMATIQUE MCIO 8i PCIe 5.0 to 2 Port Adapter Controller Card for NVMe M2 M3 U2 U3 SSD or PCIe Plates

Price History & Forecast

Price Distribution

Price Analysis

Description

Key Features

Product Specifications

Barcode

Similar Products You Might Like

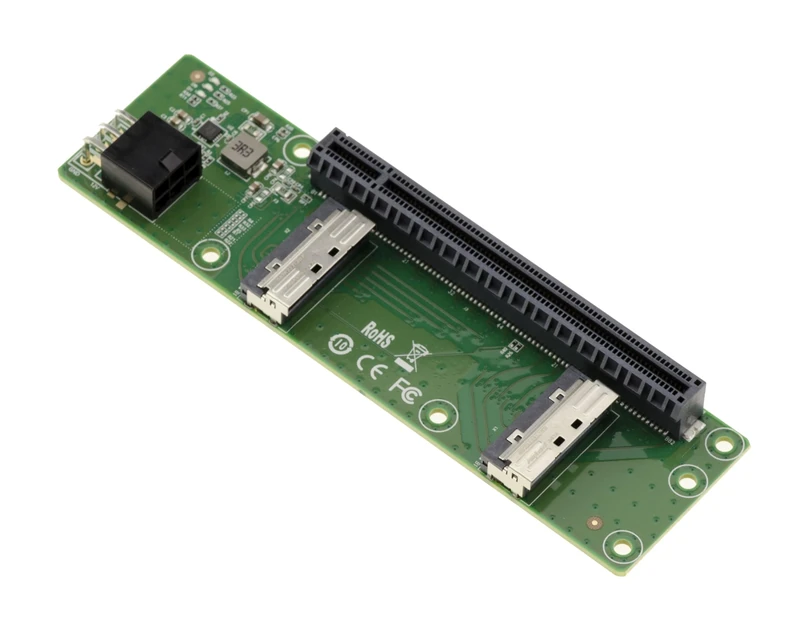

KALEA-INFORMATIQUE 2 Port MCIO 8i Card to PCIe Gen 5.0 x8 or x16 to relocate a PCI Express Port

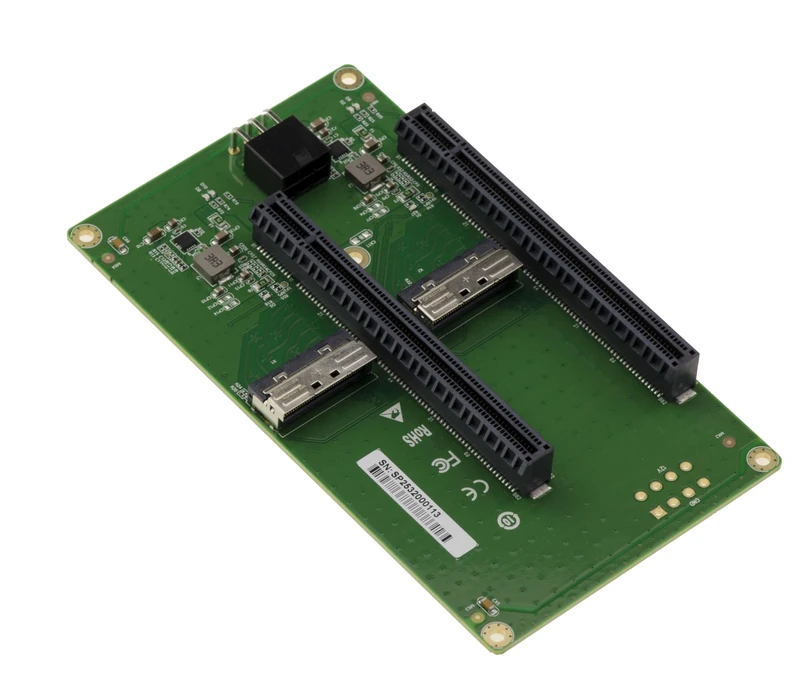

KALEA-INFORMATIQUE Riser Adapter 2X MCIO 8i to PCIe Gen 5.0 for Offsetting One PCI Express Port in 2 Outputs x16 (x8 Effective)

KALEA-INFORMATIQUE PCIe 3.0 x8 Controller Card for 2 SSD M.2 NVMe M Key HARWARE Raid 0 1, JBOD with Pull-Out Drawer Racks and Hotplug

KALEA-INFORMATIQUE M2 PCIe 3.0 x8 controller card for 4 M.2 NVMe M Key SSDs. PLX PEX 8747 chipset

KALEA-INFORMATIQUE M2 PCIe x16 controller card for 4 M.2 NVMe M Key SSDs with PLX PEX 8747 chipset - 32GB for each SSD, 128G total.

KALEA-INFORMATIQUE M2 PCIe x16 controller card for 4 M.2 NVMe M Key SSDs with PLX8747 chipset - 128GB Max bandwidth 16000MB/s

KALEA-INFORMATIQUE Original BROADCOM LSI 9440-8i - Ref 05-50008-02 PCIe 3.1 SAS SATA NVMe 12GB 8 Ports Internal Raid Card 0 1 5 10 50

KALEA-INFORMATIQUE PCIe 3.0 x8 Controller Card for 4 SSD M.2 M2 NVMe M Key HARWARE Raid 0 1, with Marvell 88NR2241B0 Chipset

KALEA-INFORMATIQUE M2 PCIe 3.0 x8 controller card for 4 M.2 NVMe M Key SSDs. Chipset PLX8724 - Bandwidth 64GB Max 12000MB/s

KALEA-INFORMATIQUE PCIe 3.0 x16 controller card for 4 M.2 NVMe SSDs with PLX PEX8747 chipset - Protected by ventilated aluminium enclosure

KALEA-INFORMATIQUE PCIe 3.1 SAS + SATA + NVMe 12GB 16-port internal controller card. OEM model 9400-16i

KALEA-INFORMATIQUE PCIe 3.0 x8 2 Port 25G Ethernet LAN Network SFP28 Controller Card with Broadcom Mellanox ConnectX-4 LX Chipset

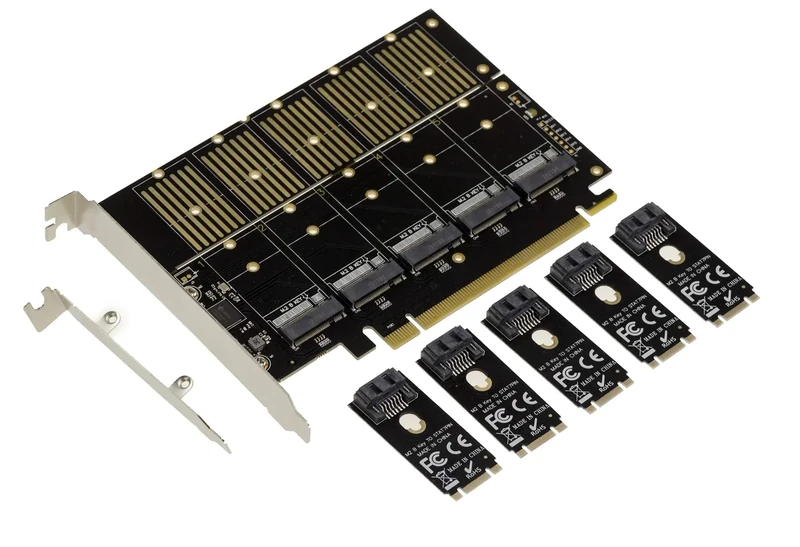

KALEA-INFORMATIQUE PCIe 3.1 x16 controller card for 5 M2 SSDs (M.2 NGFF B Key or B+M Key SATA) or SATA hard drives. High Low Profile with JMB585 Chipset

KALEA-INFORMATIQUE PCIe 3.0 SAS 12GB 8 Internal Ports Controller Card with 1GB DDR3 Cache and Raid 0 1 5 6 10 50 60. Model LSI 9361-8i

KALEA-INFORMATIQUE M.2 (M2 NGFF) PCIe M or B+M Key 4 SATA 6G RAID 0 1 10 HYPERDUO card with MARVEL 88SE9230 chipset

KALEA-INFORMATIQUE Lan ethernet 10G 5G 2.5G 1G 2 PORTS PCIe controller card - RJ45 connectors with Intel X550AT2 chipset

KALEA-INFORMATIQUE PCIe 4.0 x16 Card for 8 M.2 NVMe Chipset Broadcom PEX88048 SSD - Ventilated Aluminium Formwork Protection

KALEA-INFORMATIQUE PCIe 3.0 16x Double Sided Controller Card for 4 M.2 NVMe M Key SSD (M2 NGFF) with Forced Ventilation CHIPSET ASM2824

KALEA-INFORMATIQUE M2 RJ45 10G LAN 10 GIGABIT ETHERNET Network Controller Card for M2 Port PCIe Type M or B+M Key with AQUANTIA AQC113 CHIPSET

KALEA-INFORMATIQUE 10G 10G 10 GIGABIT ETHERNET Fiber SFP+ Network Card for M.2 PCIe Type Port, M Key or B+M with Intel Chipset JL82599EN

KALEA-INFORMATIQUE PCIe 2.5 x4 LAN Gigabit ethernet card with 4 RJ45 ports. Quad Chipset Intel I225 - NIC 10 100 1000 2500 1G 2.5G - High Low Profile

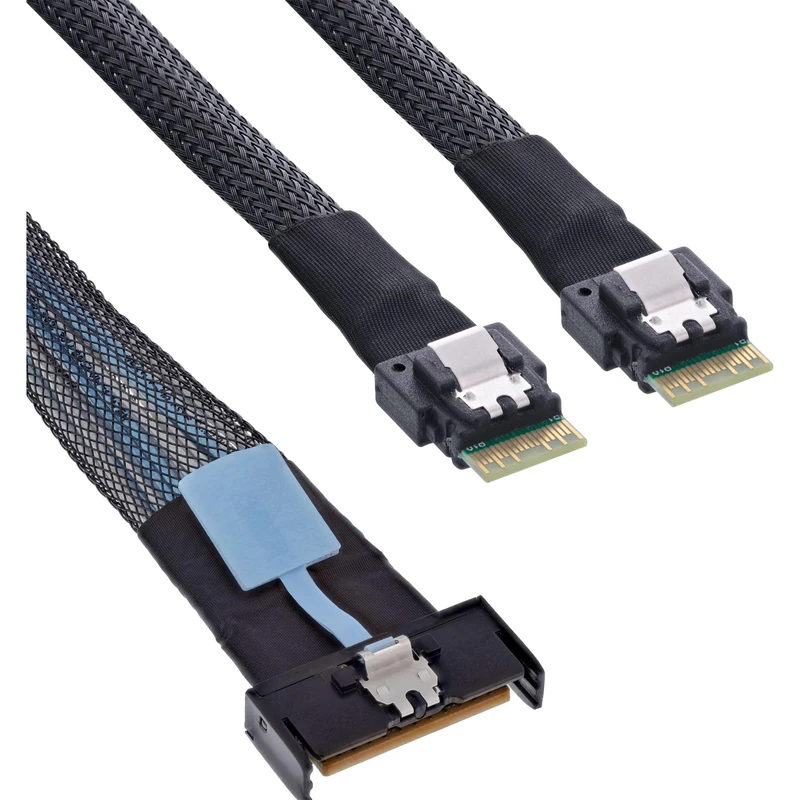

Inline MCIO Cable, MCIO x8 Male to 2X SFF-8654 4i, PCIe Gen5 NVMe SAS High-Speed Twinax Data Cable, 0.5m, 27663A
