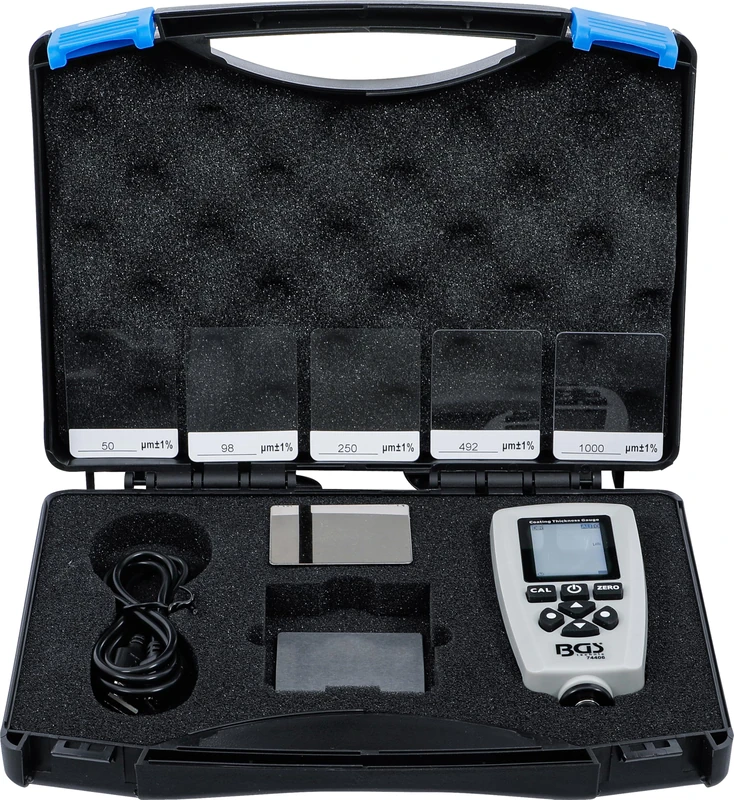

BGS 74406 | Coating Thickness Gauge | for Iron and Non-Iron Metals

for non-destructive measurements of the coating thickness | suitable for non-magnetic coatings such as paint, enamel, chrome on ferrous metals and insulating coatings such as paint, anodized on non-ferrous metals | LCD display with 128 x 128 dot matrix | easy-to-understand menu navigation | different measurement modes like single and continuous measurements

probe modes like induction and eddy current | group modes like direct (DIR), readings are lost on power off and general (GEN), readings are stored on power off | 80 reading memory for each group | zero and multi-point calibration (up to 4 points) for each group | recall or delete individually stored readings and delete group readings

statistics display for mean, minimum, maximum and deviation | definable high or low limit alarm | automatic shutdown function | USB interface for data transfer | low battery and error indicator

measuring range: 0 - 2000 µm (0-78.7 mils) | accuracy (induction): +/- (2.5 % + 1 µm) | accuracy (Eddy Current): +/- (2 % + 0.039 mils) | resolution: 0 µm - 99.9 µm (0.1 µm) / 100 µm - 999 µm (1 µm) / andgt;1000 µm (0.01 mm) | minimum substrate thickness (induction): 0.2 mm | minimum substrate thickness (eddy current): 0.05 mm

minimum measuring surface: Ø 20 mm | maximum measurement rate: 2 readings per second | ower supply: 2x 1.5 V battery AAA | operating temperature: 0 - 40 °C | operating humidity: 20 - 90% | storage temperature: -20 - 70 °C | units of measurement: µm, mm, mils | dimensions: 110 x 53 x 24 mm
