£444.52

Korloy 6-01-012155 SDQCR 20mm Diameter Through Coolant Boring Bar Carbide Shank Right Hand

Name: Korloy 6-01-012155 SDQCR 20mm Diameter Through Coolant Boring Bar Carbide Shank Right Hand
Brand: Korloy
Price: 444.52 GBP
Availability: InStock

6-01-012155

Boring Bars

Price History & Forecast

Last 18 days • 18 data points (No recent data available)

Historical

Generating forecast...

Price Distribution

Price distribution over 18 days • 1 price levels

Days at Price

Price Analysis

Most common price: £445 (18 days, 100.0%)

Price range: £445 - £445

Price levels: 1 different prices over 18 days

Description

The Korloy E20S-SDQCR-11 is a right hand Carbide Shank boring bar with a 20mm diameter shank, 250mm overall length and 108 degree approach angle. It is suitable for use with DCMT11T3/DCGT11T3 Inserts and has a screw clamp. The minimum bore diameter for this boring bar is 25mm. SDQCR/L boring bars are ideal for medium to finishing applications using positive inserts. They can be used for boring and internal profiling applications Carbide shank boring bars are ideal for increasing rigidity in longer reach applications and are suitable for boring up to 5xD deep and use positive geometry inserts with low cutting resistance. Through coolant aids chip flow, increases tool life and can prevent tool failure through chip build up in the bore.

Key Features

SDQCR style 108 degree approach boring bar for DCMT11T3 and DCGT11T3 Inserts screw clamp

Carbide shank for increased rigidity especially in deeper bores up to 5xD

20mm diameter shank suitable for 25mm bores

Right hand boring bar

Through coolant improves chip clearance and improves insert tool life

Product Specifications

Brand: Korloy
Model: 6-01-012155
ASIN: B077XWJLVW
Category: Business, Industry & Science > Cutting Tools > Boring Bars
Domain: Amazon UK
Listed Since: 05 December 2017

Barcode

No barcode data available

Korloy 6-01-012155 SDQCR 20mm Diameter Through Coolant Boring Bar Carbide Shank Right Hand

Price History & Forecast

Price Distribution

Price Analysis

Description

Key Features

Product Specifications

Barcode

Similar Products You Might Like

Korloy 6-01-017450 SDQCL 16mm Diameter Through Coolant Boring Bar Carbide Shank Left Hand

Korloy 1-06-002135 SDUCL 25mm Diameter Through Coolant Boring Bar Steel Shank Left Hand

Korloy 6-01-012189 STUPR 20mm Diameter Through Coolant Boring Bar Carbide Shank Right Hand

Korloy 1-06-050004 SVQCL 40mm Diameter Through Coolant Boring Bar Steel Shank Left Hand

Korloy 1-06-049997 SVQCR 25mm Diameter Through Coolant Boring Bar Steel Shank Right Hand

KORLOY SDQCL 8mm Carbide Shank Boring Bar - Left Hand

Korloy 1-06-002101 SCLCL 12mm Diameter Through Coolant Boring Bar Steel Shank Left Hand

Korloy 1-06-001988 PSKNR 40mm Diameter Boring Bar Steel Shank Right Hand

Korloy 1-06-003470 PWLNR 32mm Diameter Boring Bar Steel Shank Right Hand

Dormer B955 B95528.0 HSS-E High Speed Cobalt Steel Shell Reamer with H7 Accuracy, Diameter 28 mm, Single Pack

Dormer B955 B95525.0 HSS-E High Speed Cobalt Steel Shell Reamer with H7 Accuracy, Diameter 25 mm, Single Pack

Sandvik Coromant 460.1-0405-020A1-XMGC34 CoroDrill 460 Solid Carbide Drill

Sandvik Coromant CoroDrill 860 Solid Carbide Drill 860.2-1750

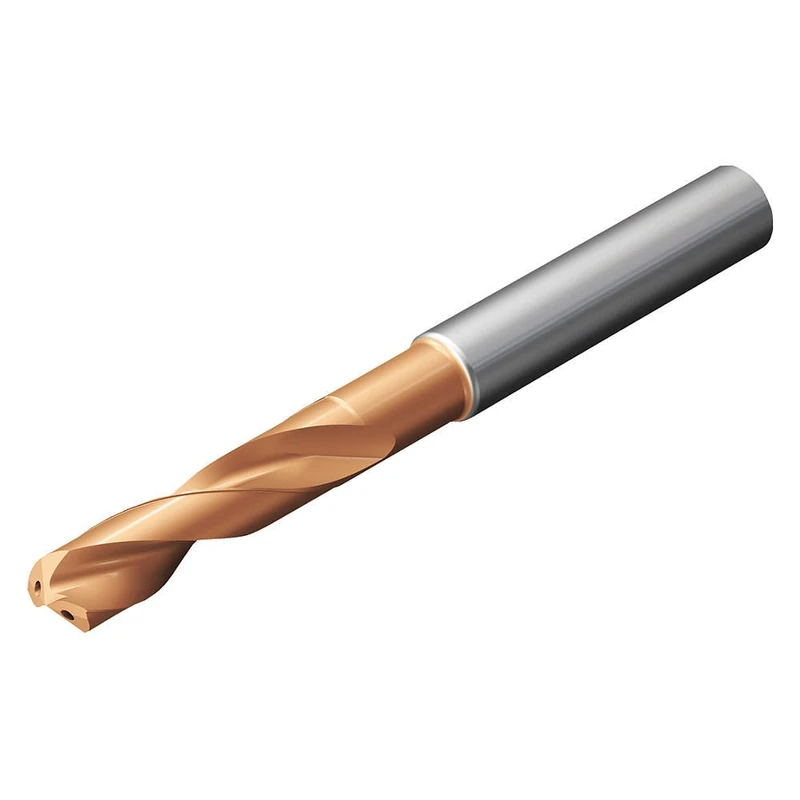

Sandvik Coromant 860.1-0480-014A1-MM2214 CoroDrill 860 Solid Carbide Drill
