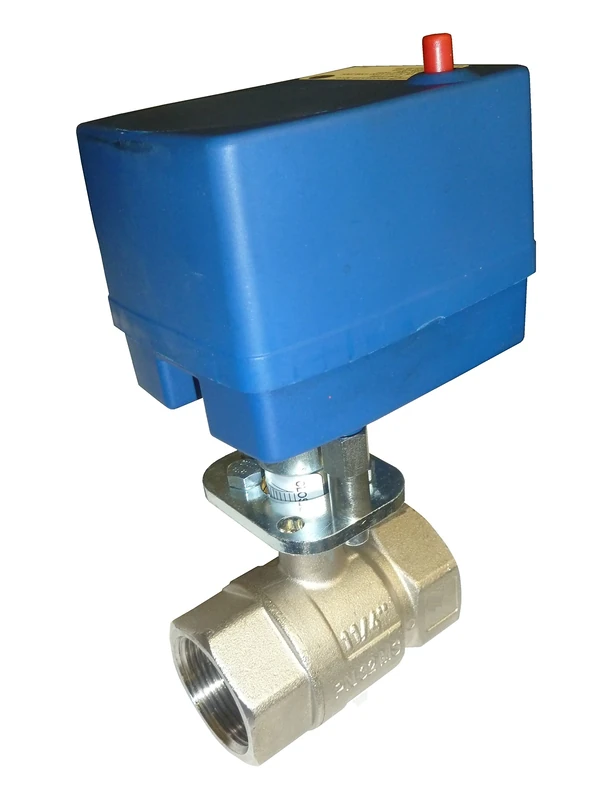

Mut 703001680 Motorized Ball Valve, 2 WAY 24 V AC

The motorized ball valve is the most common device and used of interception or deviation of the flow in plumbing pipes. Its operation is based on the 90 ° Rotation of a shutter Cylindrical Ball Complete with a hole or more holes. The valve allows the passage or the total closure of the flow but in some cases also its adjustment. A full flow ball valve, that is, in which the diameter of passage is equal to the internal diameter of the tube upstream and downstream, presents a loss of load rather low and equal to that of the tube, if the valve is fully open. The valves may be to 2 way or 3 way. Technical Data Max Running angle: 90 ° Nominal Max Torque: 7 Nm vers, V70 F; 20 nm vers. v200 F supply voltage: 230 V AC or 24 VAC; 50/60 Hz Power consumption: 1.5 VA for version V70 F; 2 VA for version v200 F degree of protection IP 40 standards IEC 529 Ref European standards CEI EN 60529 reach of auxiliary contacts M1S (Optional): 3 A, 250 Vac Max. ambient temperature: 50 °C Operating Mode: 3 points, with SPDT control cable length: 1100 mm Insulation Class II Ref European standard EN 60730 Nominal pressure: PN16 switching time: from 50sec vers.V70 F; 120 seconds vers. v200 F flow of temperature limits: 5 ÷ 110 °C Max. differential pressure: 6 bar change: – Full Flow – 3 Way 2 way to full flow (via common common) or in by-pass (via central side): See description Model. Materials: Brass Valve Body and Ball lid and base Motor: PA self-extinguishing required: Teflon.
