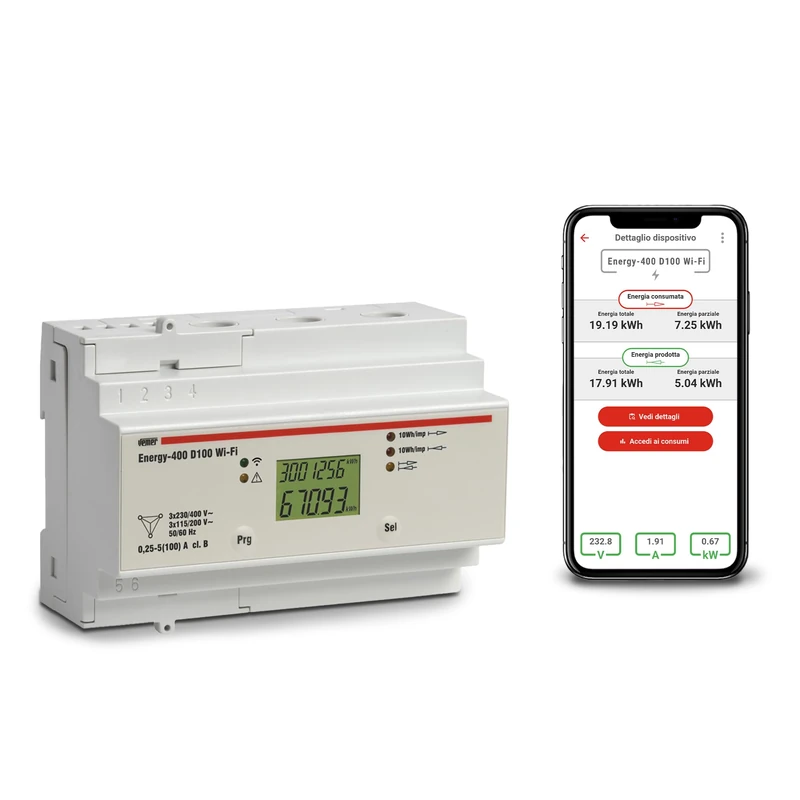

VEMER VE799300 ENERGY-400 D100 - WiFi Electric Energy Meter for Three Phase Systems, Electric Consumption Meter with APP, Installation on DIN Bar, White

DIRECT INSTALLATION AND RECOMMENDED APPLICATIONS: Wi-Fi energy meter DIN bar (7 modules), for three-phase systems at 230/400V. The current conductors connect directly (max 25 mm²) vertically on the enclosure, without wiring to the terminals. Ideal for photovoltaic systems, supermarkets, workshops, SMEs, second homes and facilities with high electricity consumption

ACTIVE ENERGY MEASUREMENT UP TO 100A: Device designed to detect energy taken and fed into the grid, with resolution equal to 1 kWh for total energy and 0.01 kWh for partial energy. Equipped with configurable pulse output (always on or in time) for remote energy counting

FRONT DISPLAY AND INTUITIVE NAVIGATION: Backlit display with dual reading level: 7 digits for total non-resettable energy and 5 digits for partial one. Two front buttons ("SEL" and "PRG") allow you to view data and configure the backlight or Wi-Fi network

FULL REMOTE CONTROL VIA APP: Through the "Energy Wi-Fi" app (iOS, Android, desktop), you can consult: total and partial energy, voltage, current and instant power. The app shows hourly/daily/monthly interactive charts, historical up to 18 months and sends configurable push notifications. An annual subscription of €1.99 required

PRECISION, CONNECTIVITY AND SAFETY: Precision Class B for reliable measurements. 2.4GHz Wi-Fi connectivity and simplified setup via Bluetooth interface. Three LEDs indicate the status of the device, another two the status of the connection. Protection rating: IP20 general, IP51 on the front

LOCAL LOCAL LOCK FOR CENTRALIZED MANAGEMENT: The "local operation lock" function disables physical keys, allowing management exclusively via app. Useful in public settings or for shared facilities, where a secure and remote configuration is required

Compliance with European standards and production made in Italy: device complies with Directive 2014/53/EU (RED), according to the standards: EN 61010-1, EN 50470-3, EN 62479, EN 300 328, EN 301 489-1 and EN 301 489-17. Designed and manufactured in Italy in compliance with quality and regulatory standards

DETAILED MANUAL AND TECHNICAL ASSISTANCE: The counter includes a complete user manual for proper installation and configuration. For technical support the dedicated address is available: assistenza.tecnica@vemer.it
