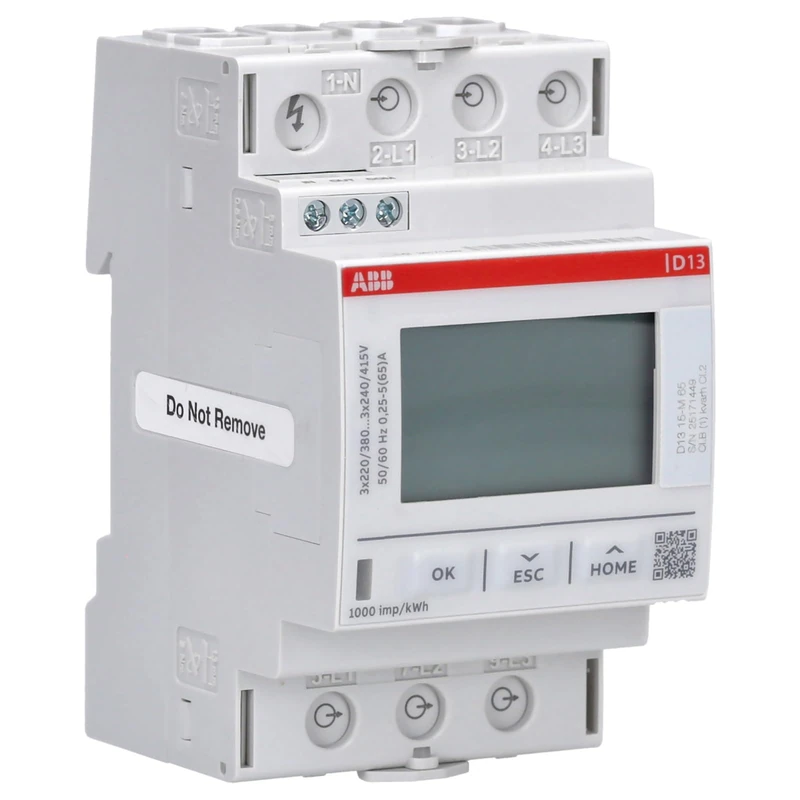

ABB Protecta Plus D13 15-M 65 Energy Meter • 3-Phase 65A Pulse Direct Connected • 4-Quadrant Metering • Multi-Tariff • 1 Digital in / 1 Digital Out • DIN Rail 3 Modules • 2CMA241695R1000

3-PHASE DIRECT CONNECTED ENERGY METER (UP TO 65A) – Designed for 3-phase, 4-pole systems (220–240 V N-L / 380–415 V L-L), direct connected up to 65 A. Ideal for commercial buildings, industrial panels and sub-metering applications requiring reliable long-term performance.

MID CERTIFIED 4-QUADRANT MEASUREMENT – Class B (±1%) accuracy for active energy according to MID and Class 2 for reactive energy (IEC 62053-23). Measures import and export energy, making it suitable for grid-connected systems and advanced energy monitoring.

MULTI-TARIFF FUNCTION WITH DIGITAL I/O – Supports multi-tariff billing via external tariff control. Equipped with 1 digital input and 1 digital output for pulse output or system integration into BMS and energy management systems.

COMPACT & ROBUST DIN RAIL DESIGN – Slim 3-module width (52.5 mm) for space-saving installation on standard DIN rail. IP20 protection, operating range −40°C to +70°C, low power consumption (0.82 W) and sustainable housing with recycled materials.

Sustainable design: 70% recycled plastic housing, IP20 rating, operating temperature range from -40°C to +70°C
