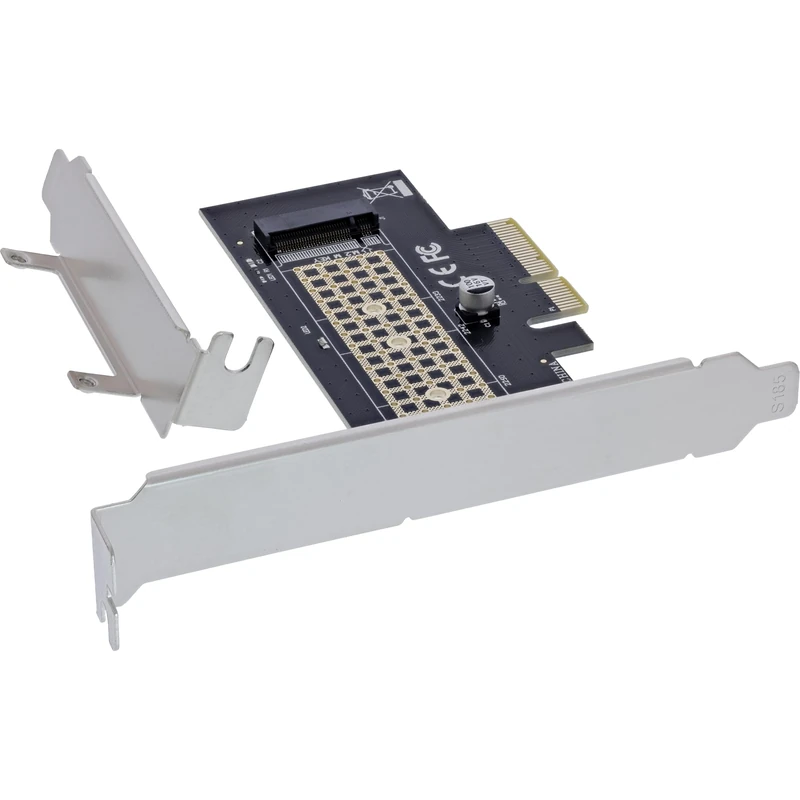

InLine ® PCI Express Card to 1x Internal NVMe M.2 Key M, PCIe x4, 76660V

The InLine® PCI Express card enables the operation of an NVMe SSD (M.2 Key M) via a PCIe 3.0 x4 interface with up to 32 Gb/s bandwidth, enabling fast boot times and optimized data transfers. With automatic lane detection at boot, the card is easily integrated into the system. The NVMe SSD is powered directly via the PCIe bus (3.3 V). In addition, an LED indicator facilitates fault diagnosis and shows the operating status of the SSD. Technical data: Bus type & PCIe: PCIe 3.0 x4-Lane (maximum bandwidth up to 32 Gb/s) Connector - Interfaces: 1 x M.2 slot (key M) for NVMe SSDs. Compatible module sizes: 2230, 2242, 2260, 2280 Data Rate: Each port supports transfer rates up to 4Gb/s Dimensions: 95 mm x 52 mm (PCIe board). Operating conditions: Operating temperature: -40°C to +85°C. Functions: Automatic detection of lane configuration at boot Onboard LED indicator to show read/write activity NVMe SSD receives its power directly from the PCIe bus (3.3V) No additional driver required System Requirements Hardware: PC with a free PCIe slot (x4, x8 or x16 - the card is compatible) Motherboard with support for PCIe 3.0 or higher Operating System Support: Windows: 11, 10, 8.1, 8, 7. Windows Server: 2012 R2 Linux: from Kernel 2.6. Package includes: 1 x InLine® PCI Express card to 1x internal NVMe M.2. 1 x low-profile slot bracket. 1 x hand screwdriver. 2 x screws. 1 x thermal pad. 1 x user manual (German/English).
