FANTEC WR-NVMeU.2-C3141 U.2/SAS/SATA backplane for 4× 3.5"/2.5" NVMe/SSD/HDD, in a 3X 5.25 Module, Data Connection Via SFF8654 and SFF8643, 80 mm Fan on The Rear, Black - Image 1

Price loading...

Fantec FANTEC WR-NVMeU.2-C3141 U.2/SAS/SATA backplane for 4× 3.5"/2.5" NVMe/SSD/HDD, in a 3X 5.25 Module, Data Connection Via SFF8654 and SFF8643, 80 mm Fan on The Rear, Black

Name: FANTEC WR-NVMeU.2-C3141 U.2/SAS/SATA backplane for 4x 3.5"/2.5" NVMe/SSD/HDD, in a 3X 5.25 Module, Data Connection Via SFF8654 and SFF8643, 80 mm Fan on The Rear, Black
Brand: Fantec

Black, 2555

Bags & Cases

Price History & Forecast

No Price Data Available

Price history will appear here once data is collected from Amazon.

Price Distribution

No price data available for histogram

Description

Backplane systems are used in servers and enable the simple installation or replacement of hard disks. Thanks to the plug-in technology of the hard disk drive racks, the hard disks are integrated into the system via plug connections and not, as is usually the case, via cable connections. This means that the hard disks can be replaced easily and without tools, without having to open the server housing. The hot-swap technology also enables the hard disks to be exchanged and replaced during operation. The FANTEC WR-NVMeU.2-C3141 is prepared for 4x 3.5"/2.5" PCIeNVMe/SSD/HDD U.2(32GB)/SAS/SATA hard disks.

Key Features

Fast installation and replacement of hard disks by using hard disk carriers, hard disk carriers suitable for 3.5" or 2.5" HDD or SSD

U.2(32GB)/SAS/SATA backplane for 4x 3.5"/2.5" PCIeNVMe/SSD/HDD in one slide-in module. Form factor of the module: 3 x 5.25 inches.

(1.) Data connection to external: 2x SFF8654: SFF8654x8, PCIe3.0x8, 2xU.2 each, 7.9GByte/s. (2.) Data connection to external: 1 x SFF8643: 12G for SATA (6G) and SAS (12G).

(3.) Power supply via 2x MOLEX connection. (4.) Internal data connection: 4x U.2/SAS/SATA.

4 x hard disk access LEDs: green - switched on / flashing blue - data access. 1 x 80 x 80 x 25 mm fan. Housing, plug-in units and front doors made of metal/plastic. Housing, slide-in units, front doors black. Scope of delivery: screw set

Product Specifications

Brand: Fantec
Model: 2555
Colour: Black
Format: Electronics
ASIN: B0C4XLFFGP
Category: Computers & Accessories > Accessories > Hard Drive Accessories > Bags & Cases
Domain: Amazon UK
Release Date: 15 February 2024
Listed Since: 10 May 2023

Barcode

No barcode data available

Fantec FANTEC WR-NVMeU.2-C3141 U.2/SAS/SATA backplane for 4× 3.5"/2.5" NVMe/SSD/HDD, in a 3X 5.25 Module, Data Connection Via SFF8654 and SFF8643, 80 mm Fan on The Rear, Black

Price History & Forecast

No Price Data Available

Price Distribution

Description

Key Features

Product Specifications

Barcode

Similar Products You Might Like

FANTEC 2552 WR-C3141-6G SAS/SATA 6G backplane housing for 4 x 3.5 inches / 2.5 inches HDD/SSD on a Tray in a 3X 5.25 Module

FANTECH FANTEC BP-SA3141 SAS + SATA Backplane for 4×3.5" HDD

FANTEC BP-T3141 SAS I, II + SATA I, II,III Backplane for 4x 3.5"/2.5" HDD/SSD in a 3x 5.25" bay. With an 80mm fan at the back. Aluminium case and front in black.

FANTEC SRC-2080X07-12G/6G-BCE 19" (48.3cm) 2U storage enclosure, 12G/6G backplane SFF-8643 for 8x SATA/SAS HDD/SSD 3.5" (8.9cm) external, 2x 2.5" internal, installation depth 550mm, black

FANTEC MR-SA1082 SAS + SATA 6G Backplane for 8 x 2.5 Inch HDD/SSD 2196

FANTEC 2185 BP-SA2131 SAS I,II + SATA I,II,III Backplane for 3X 3.5 HDD in a 2X 5.25 Slot With a 70mm Fan on the Rear Strapless Aluminium Housing and Front in Black

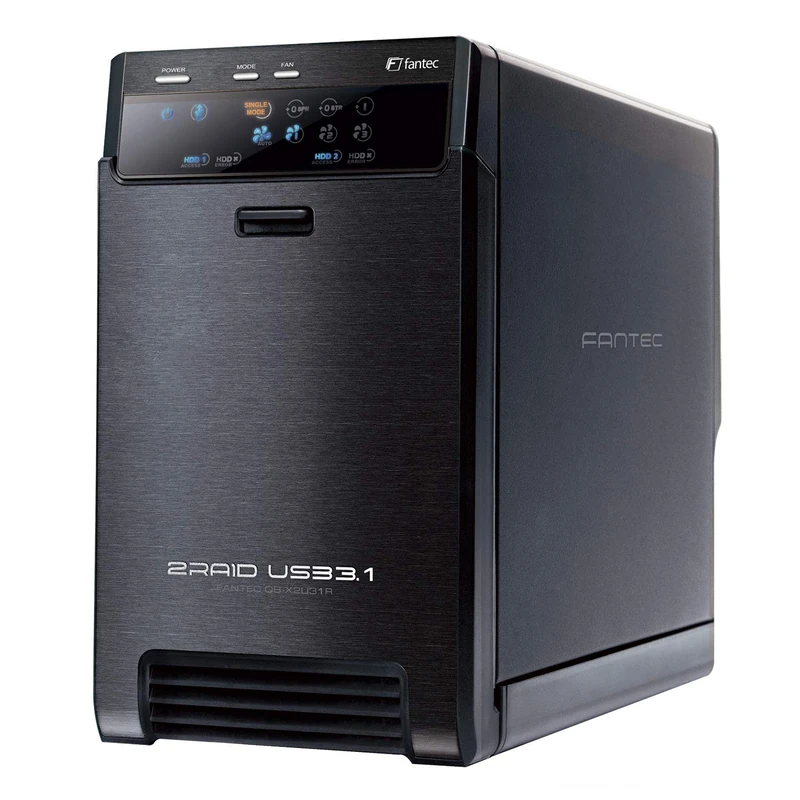

FANTEC QB-X2U31R USB RAID Hard Drive Enclosure for Two 3.5" and 2.5" SATA I/II/III HDDs and SSDs with USB 3.1 Type-C to Type-C Generation II 10G Connector Black

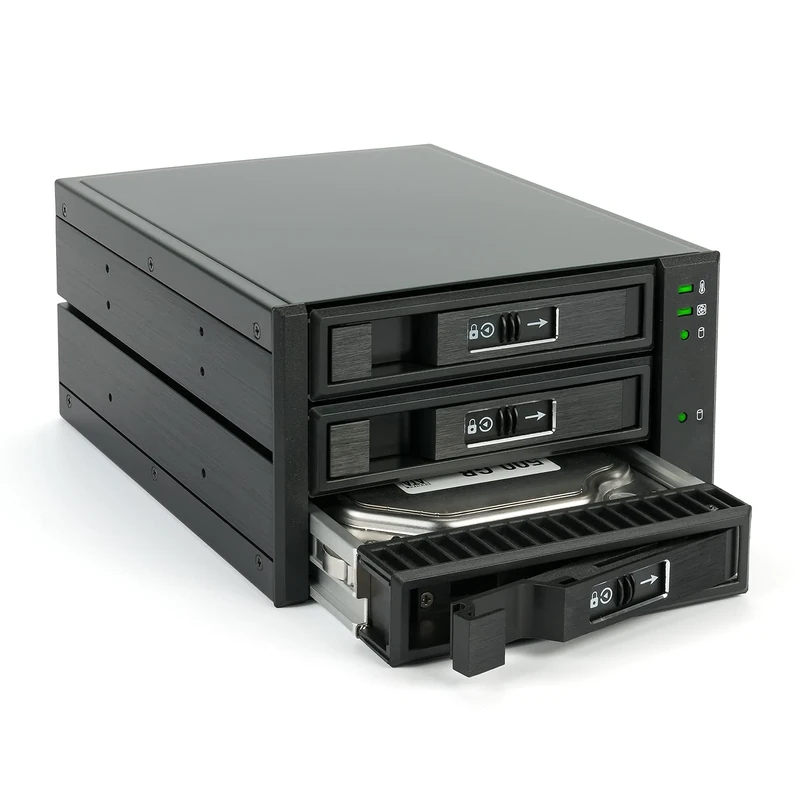

FANTEC BP-T2131 SAS & SATA Backplane for 3 x 3.5 Inch / 2.5 Inch HDD/SSD

FANTEC MR-SA1242-12G/6G

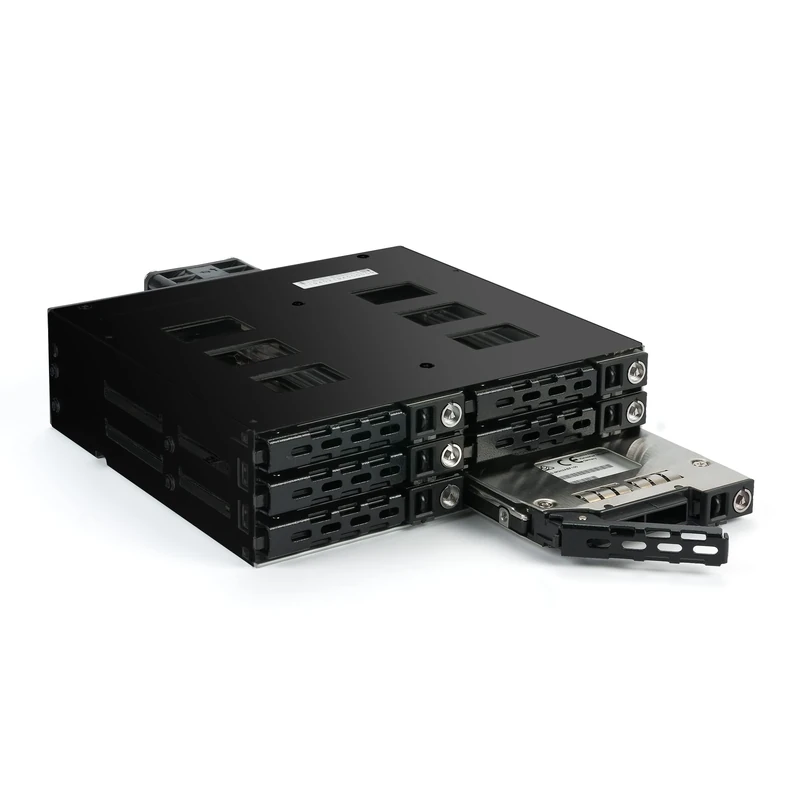

FANTEC MR-SA1262-12G SAS 12G + SATA 6G Backplane for 6 x 2.5 Inch HDD/SSD, 2194

StarTech.com 4-Bay Mobile Rack Backplane - Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD (HSB4SATSASBA)

FANTEC SQ-35U3e-6G 4x 3.5 Inch SATA HDD Enclosure with USB 3.0, eSATA, 6G & UASP

Fantec QB-35US3R Hard Drive Enclosure for 4x 8.89 cm (3.5-Inch(SATA I/II/III Drives Black

ICY BOX 2.5 Inch U.2 Mobile Rack for 3.5 Inch Bay, U.2 (SF-8639) to 2.5 Inch U.2 NVMe, SATA or SAS SSD/HDD

ICY BOX 4-Way 2.5 Inch Backplane for 1x 5, 25 Inch Bay, SAS III 12 Gbit/S and SATA III 6 Gbit/S, MINI SAS HD Host, Fan

Icy Dock Backplane 4 x 6.3 cm SATAI-III in 1 x 5.25 Inch HDD/SSD black

StarTech.com 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane - Dual Drive SATA Mobile Rack Enclosure for 3.5 HDD (HSB220SAT25B)

StarTech.com 3-Bay Hot Swap Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD - Aluminum Trayless Mobile Rack Backplane (HSB3SATSASBA)

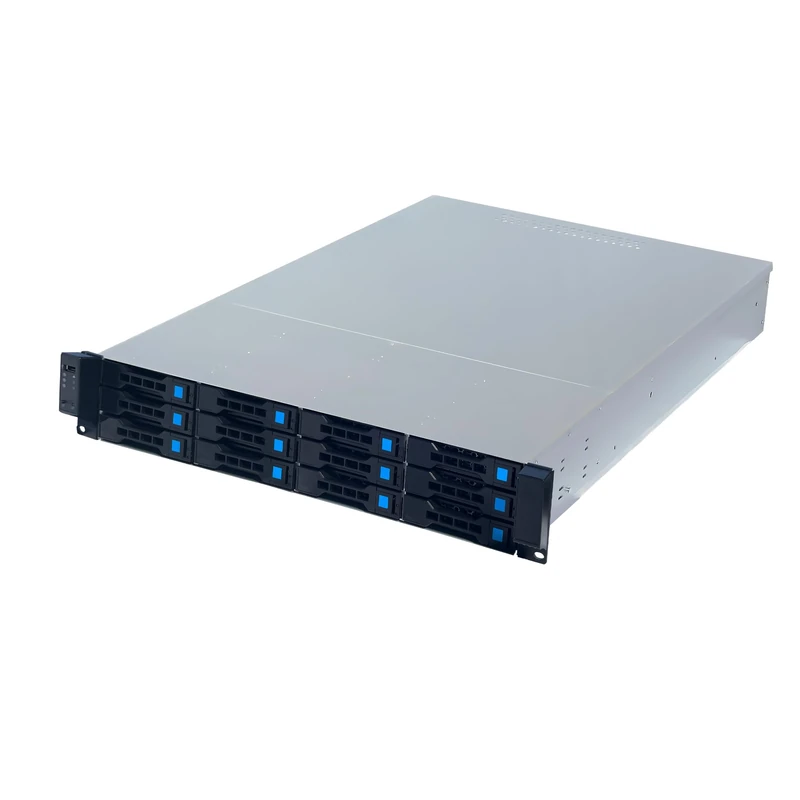

FANTEC SRC-2612X07 12Xsas&Sata without NT, Black, Silver

KALEA-INFORMATIQUE PCIe 3.1 SAS + SATA + NVMe 12GB 16-port internal controller card. OEM model 9400-16i

KALEA-INFORMATIQUE Original BROADCOM LSI 9440-8i - Ref 05-50008-02 PCIe 3.1 SAS SATA NVMe 12GB 8 Ports Internal Raid Card 0 1 5 10 50

StarTech.com 4-Bay USB 3.1 to SATA Hard Drive Docking Station, 10Gbps USB Hard Drive Dock, External 2.5/3.5" SATA III SSD/HDD Docking Station, Hot-Swap, Top-Loading (SDOCK4U313)

SilverStone Technology SST-RAC-BP-304N, 4-Bay 2.5"/3.5" Server Backplane with U.2 SSD Support, Supports up to 4 PCIe Gen 4 NVMe U.2 (SFF-8639) SSDs

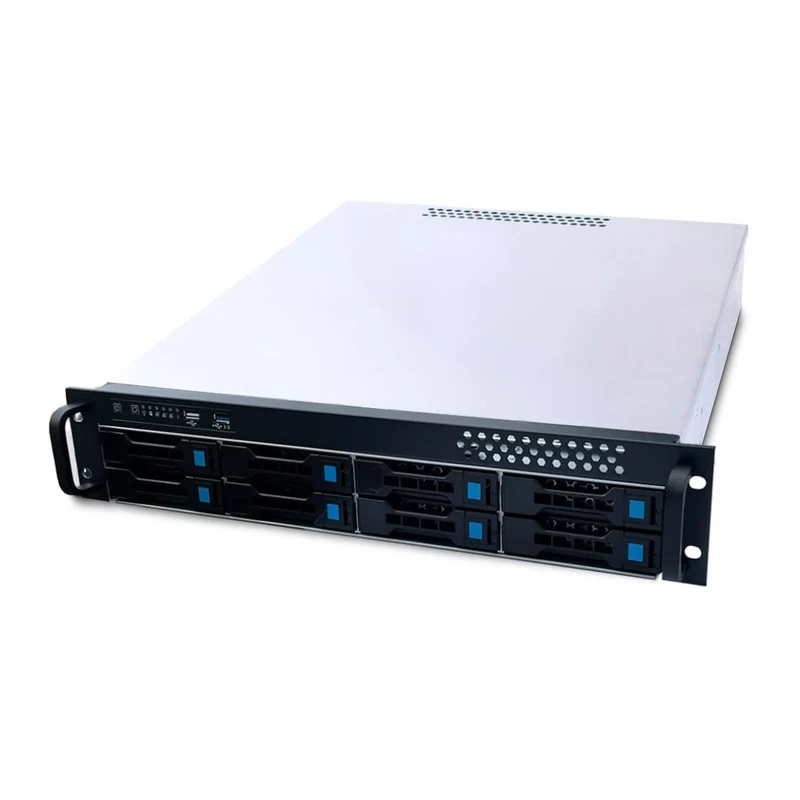

FANTEC SRC 2080X07 2 He Storage Enclosure (8x External 8.9 cm/3.5 Inch/2x Internal 6.4 cm (2.5 Inches) for 48.3 cm/19 Inches
