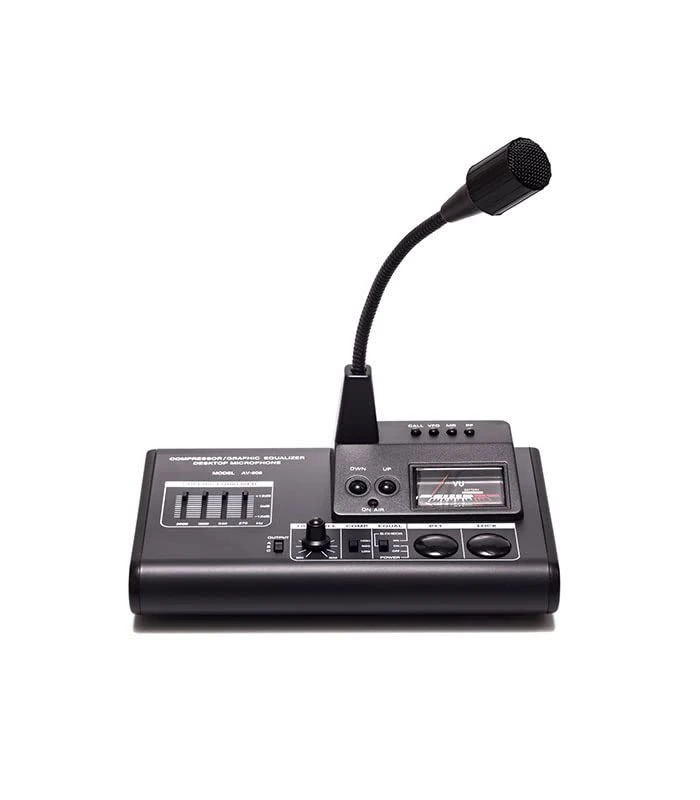

AVAIR AV-908 Desktop Microphone (with Equalizer)

The AVAIR AV-908 is a desktop microphone for HF/VHF/UHF equipment with RJ-45 type connector uses a high-quality ceramic capsule. It has a graphic equalizer for optimal sound quality control, a compressor with three selectable levels and built-in battery control. Subministered without connection cable - Compatible with AVAIR AV-73K cable with RJ45 connector for ICOM or Kenwood or AVAIR AV-73Y 8-pin cable for Yaesu. SPECIFICATIONS Output voltage: 0 – 30 mV (RMS) Microphone impedance: 500 Ohm – 100 kOhm High quality compressor (High, Medium, Low selectable) Compression level: Hi: 45 dB / Med: 30 dB / Lo: 10 dB S/N ratio: 80 dB (graphic equalizer part) EQ Graphic Qualyzer: 4 Elements (270, 540, 1000, 2000 Hz) + 12 dB range Distortion factor: 0.05% flat Power supply: 6 -9 VDC (4 x 1.5V AA batteries not included) Consumption: Reception with EQ OFF: 3.5mA (RX) and 4.5mA (TX) Reception with equalizer ON: 10 mA (RX) and 11mA (TX) Alarm: Flashing tone 4.5 kHz (approximate) Dimensions: 227 x 130 x 320 cm Weight: 1 kg
