50 Pieces Wago 221-615 Connection Terminal 5 Wires with Lever 0,5-6 qmm Small Design, Transparent - Image 1

Price loading...

WAGO 50 Pieces Wago 221-615 Connection Terminal 5 Wires with Lever 0,5-6 qmm Small Design, Transparent

Name: 50 Pieces Wago 221-615 Connection Terminal 5 Wires with Lever 0,5-6 qmm Small Design, Transparent
Brand: WAGO

5 Compartments 0.5 - 6 Mm², 221-615

Terminals & Kits

Price History & Forecast

No Price Data Available

Price history will appear here once data is collected from Amazon.

Price Distribution

No price data available for histogram

Description

Electrical data: Rated data according to IEC/EN 60664-1. Rated voltage (II/2): 450 V. Rated surge voltage (II/2): 4 kV. Rated current: 41 A. Connection data: Connection technology: Cage clamp. Actuation type: lever. Connectable conductor materials: copper. Nominal cross section: 6 mm². Solid conductor: 0.5 - 6 mm²/20 - 10 AWG. Multi-strand conductor: 0.5 - 6 mm²/20 - 10 AWG. Fine-stranded conductor: 0.5 - 6 mm²/20 - 10 AWG. Stripping length: 12 - 14 mm / 0.47 - 0.55 inches. Total number of clamping points: 5. Total number of potentials: 1. Wiring type: side wiring. Conductor cross-sections single-wire: 0.5 mm². Geometric data: Width: 36.7 mm / 1.445 inches. Height: 10.1 mm / 0.398 inches. Depth: 21.1 mm/0.831 inch. Material data: Colour: transparent. Flammability class according to UL 94: V2. Fire load: 0 MJ. Weight: 7.13 g. Environmental conditions: Ambient temperature (operation): 85°C. Continuous operating temperature: 105 °C. T-mark according to EN 60998: T85.

Key Features

Comfortable conductor connection from 0.5 to 6 mm²

Installation of single, fine and multi-wire conductors

Lever on, ladder in, lever close

For all types of conductors

41 A/450 V

Product Specifications

Brand: WAGO
Model: 221-615
Colour: 5 Compartments 0.5 - 6 Mm²
Size: Pack Of 50
ASIN: B07NJ4Q85X
Category: DIY & Tools > Electrical > Terminals & Kits
Domain: Amazon UK
Listed Since: 10 February 2019

Barcode

No barcode data available

WAGO 50 Pieces Wago 221-615 Connection Terminal 5 Wires with Lever 0,5-6 qmm Small Design, Transparent

Price History & Forecast

No Price Data Available

Price Distribution

Description

Key Features

Product Specifications

Barcode

Similar Products You Might Like

20 Pieces Wago 221-415 Connection Terminal 5 Wires with Lever 0,2-4 qmm Small Design, Transparent

WAGO 2-Way Connectors - 32A, 450V Cage Clamp, Transparent, Pack of 25

221-412 | WAGO Lever-Nuts® Splicing Connector | for Solid and Stranded Conductors | 2-Conductor with Operating levers | 24-12 AWG | Transparent housing | [Jar of 550 Pieces]

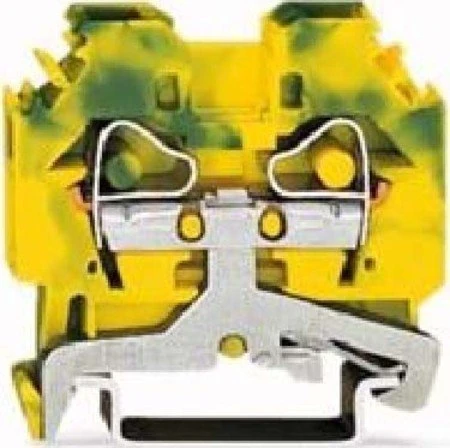

Wago 2–Conductor protective conductor terminal 6 MM2 282–107

Wago 2 Port (10) 3 Port (10) 5 Port (5) 221 Splicing Connector, Lever-Nut Assortment Pocket Pack for All Wire 12-24 AWG, Pack of 25, Transparent

WAGO 221-2401 | Lever-Nuts Inline Splicing Connector | for Solid and Stranded Conductors | 2-Conductor with Operating levers | 24-12 AWG | Transparent housing | White Cover | [Bag of 500 Pieces]

Wago 4–conductor protective conductor terminal 2.5 MM², 280–837

Compact Wire Connectors, Preciva 100pcs Splicing Connector, Lever Nut Assortment Conductor, Electrical Cable Blocks with 50pcs Clamps for 3-Port, 40pcs for 2-Port, 10pcs for 5-Port

WAGO Inline splicing connector with lever, for all conductor types, max. 4 mm², 2-conductor, Transparent housing, Surrounding air temperature, max 85°C (T85), 4,00 mm², 221-2411 (60 pcs).

WAGO Compact Splicing Connector, for all conductor types, for Ex e applications, max. 4 mm², 2-conductor, with levers, transparent housing, Operating temperature (max.), 105 °C, 4,00 mm², Pack of 100

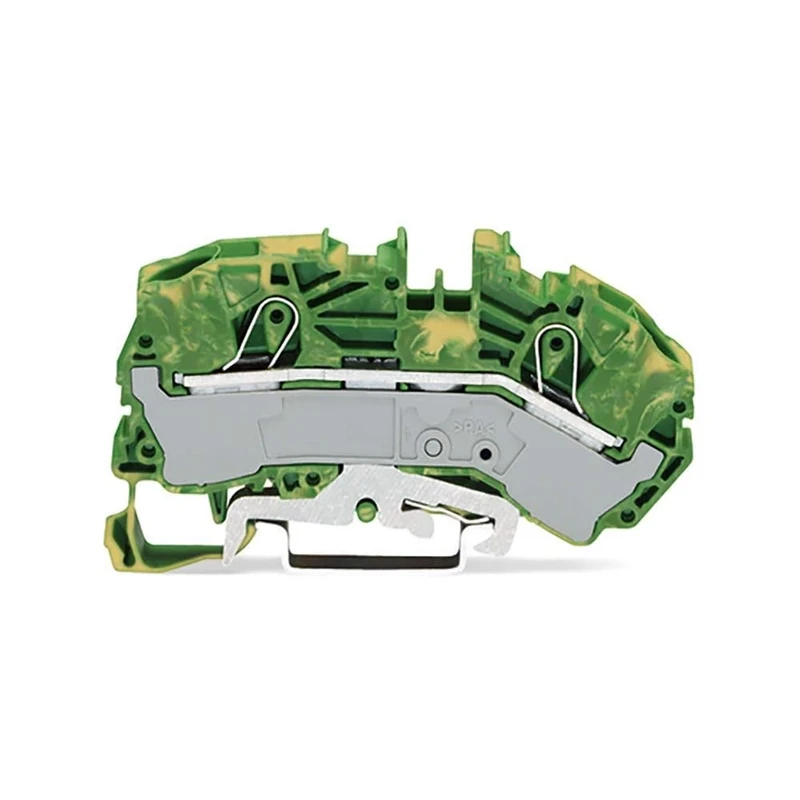

Wago 2–Conductor protective conductor terminal 2016–7607 16 MM2
