HT-Instruments T2000 Digital Grounding Pliers - Image 1

£1,046.95

HTI HT-Instruments T2000 Digital Grounding Pliers

Black, T2000

Cable Insertion & Extraction Tools

Price History & Forecast

Last 17 days • 17 data points (No recent data available)

Historical

Generating forecast...

Price Distribution

Price distribution over 17 days • 1 price levels

Days at Price

Price Analysis

Most common price: £1047 (17 days, 100.0%)

Price range: £1047 - £1047

Price levels: 1 different prices over 17 days

Description

The innovative grounding pliers are ideal for accurately measuring the grounding resistance without the help of auxiliary conductors. Earth measuring pliers can be used in multi-earthed systems without having to loosen the earth to be checked. By simply attaching to the earthing rod or the earth conductor, both earthing resistance and leakage currents from 0.05 mA to 20 A AC can be measured directly. The grounding test pliers have a large oval pliers diameter (32mm x 64mm) and provide fast, safe and accurate results. The grounding gauge is equipped with an automatic shut-off and an LCD backlight that allows measurements to be carried out in poorly lit environments.

Key Features

Functions: grounding measurement without auxiliary circuit, from 0.010 Ω to 1000 Ω, leak current measurement from 0.05 mA to 20AAC, real effective value measurement (TrueRMS), data hold function, large LCD display with bargraph + backlight.

Automatic shut-off after approx. 5 minutes of non-use, measurement memory, optical/acoustic alarm function, high-quality shielding against foreign fields

General specifications: Internal memory: 99 readings, Battery: 4 x 1.5 V AA LR6A, Reference temperature: 20 ± 3 °C, Working temperature: 0 / 40 °C, Working humidity: 10 % RH to 80 % RH

Safety: IEC/EN 61010-1; IEC/EN 61010-2-032, insulation / pollution degree: double insulation / 2, surge category: CAT III 150 V, dimensions (H x W x D): 293 x 90 x 66 mm, pliers inner diameter: 32 x 64 mm, weight (including battery): 1,320 g

Box contents: includes robust protective case, batteries, resistance test loop 5.1 Ω, instruction manual (may not be in English), calibration protocol ISO 9000

Product Specifications

Brand: HTI
Model: T2000
Colour: Black
ASIN: B017UUCIT8
Category: DIY & Tools > Electrical > Tools & Testers > Cable Insertion & Extraction Tools
Domain: Amazon UK
Release Date: 20 April 2016
Listed Since: 17 July 2016

Barcode

No barcode data available

HTI HT-Instruments T2000 Digital Grounding Pliers

Price History & Forecast

Price Distribution

Price Analysis

Description

Key Features

Product Specifications

Barcode

Similar Products You Might Like

Pliers Multimeter 400A UT213C / MIE0186

Högert Technik - Multifunctional digital meter I multimeter up to 600 V / 10 A I RMS I LCD screen I rubber coating I ergonomic and compact I includes measuring cable I HT1E604

UNI-T UT161D/MIE0433 Digital Universal Meter Voltage Tester, Current AC/DC, Capacity, Circuit Test and Diodes, Temperature Measurement

Schneider Electric Thorsman Digital Clamp Meter with LCD Display, Category 3, 600V, Part Number IMT23214

PeakTech 1070 - Digital Multimeter CAT III with LCD Display, TÜV/GS, Battery Tester, Manual Multimeter, Voltmeter, Electronic Ammeter, Continuity Tester, AC/DC, Temperature Measurements - Max 300 V

Kyoritsu KEW 4200 CAT IV LCD grounding meter 300 V

CEM DT-3390 Clamp Multimeter, 1000 A AC, Continuity Tester, Non-Contact Voltage Meter, Current Meter, TÜV/GS, CAT III, 4000 Counts

REV Ritter Digital Clamp Meter MM1

UNI-T Digital Multimeter UT181A/MIE0171

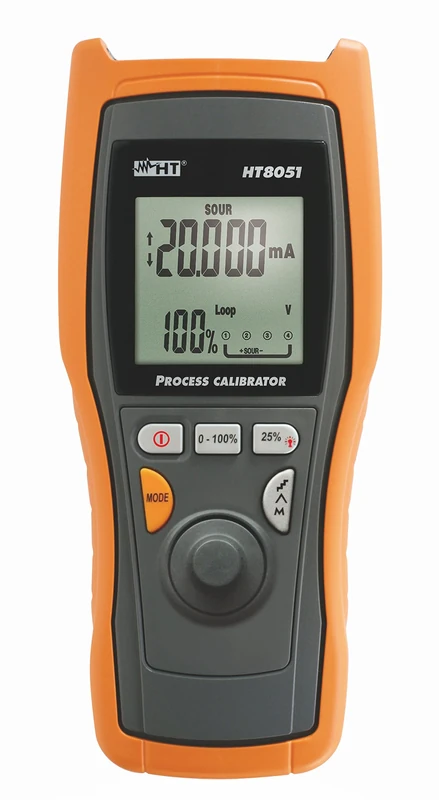

HT-INSTRUMENTS HT8051 PROZESSKALIBRATOR

Rev Ritter Benning Compact 0509306555 Electric Voltage Detector

C.A 6131 Installation Tester

Digital MULTIMETER FERVI T053

Schneider Electric Thorsman Digital Multimeter with LCD Display, Illuminated, Category 3, 600V, Battery 9V, Green, Part Number IMT23222

UNI-T MIE0196/UT18D Multimeter Voltage Tester Continuity RCD Test IP65 LCD Display

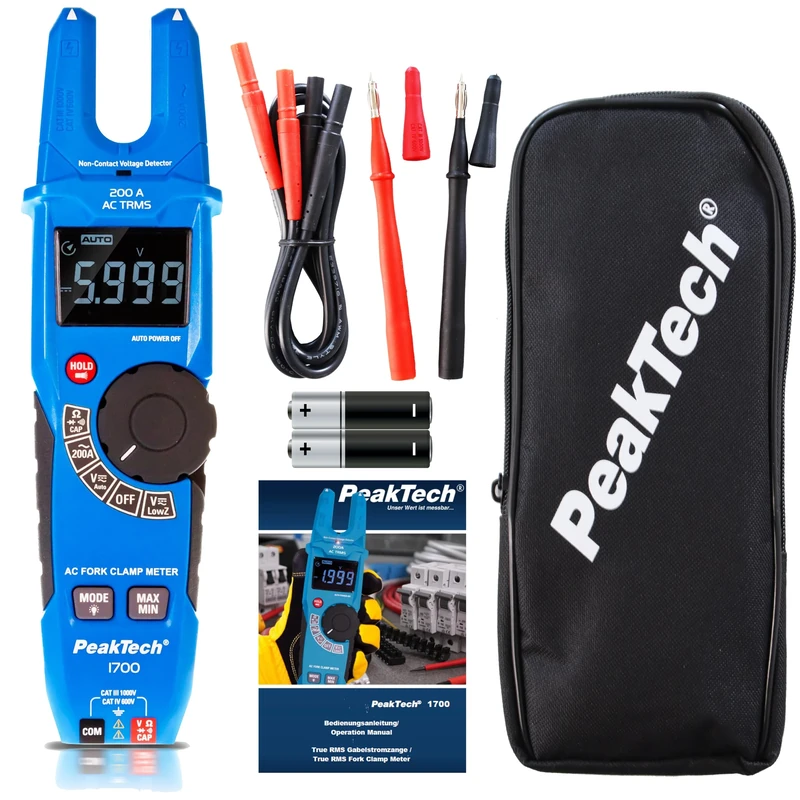

PeakTech P 1700 – True RMS Measurement Fork clamp, 200A AC, 1000V, LCD Inverted, CAT III 1000 V, CAT IV 600 V, 6.000 Counts
