Sandvik Coromant WCMX06T308-58235 U insert for drilling (Pack of 10)

Name: Sandvik Coromant WCMX06T308-58235 U insert for drilling (Pack of 10)
Brand: Sandvik Coromant

Coromant U indexable insert plunge drill

Drilling Inserts

Price History & Forecast

No Price Data Available

Price history will appear here once data is collected from Amazon.

Price Distribution

No price data available for histogram

Description

Part of the Coromant U product family. Plunge drilling is an effective method for roughing out cavities. It makes a deeper hole or cavity through repeated axial cuts. Coromant U drill can be used in broad machining conditions. PRODUCT SPECIFICATION: Material classification (TMC1ISO): P (ISO P Steel); Grade: 235 ; ISO Cutting Tool Material: HC ; Coating Process Type: CVD ; Coating Type: Ti (CN) +TiN ; Substrate Type: WC ; CBMD, Chip Breaker Manufacturer'S Designation: 58 ; CTPT, Operation Type: Medium feed ; CUTINT_SIZESHAPE, Insert Size And Shape: CoroDrill U WC06T3xxP ; IC, Inscribed Circle Diameter: 9.525 mm ; IC, Inscribed Circle Diameter: 0.375 inch ; INSUC, Insert Usage Code: P ; RE, Corner Radius: 0.8 mm ; RE, Corner Radius: 0.031496 inch ; S, Insert Thickness: 3.96875 mm ; S, Insert Thickness: 0.15626 inch ; SC, Insert Shape Code: W ; WEP, Wiper Edge Property: 0 ; WT, Weight Of Item: 0.0042 kg ; WT, Weight Of Item: 0.0092 lbs ;

Key Features

Benefits of this product family: High tool body strength enables demanding plunge drilling operations

Power efficient, productive solution with high metal removal rate

Product Specifications

Brand: Sandvik Coromant
Model: Coromant U indexable insert plunge drill
Pack Size: 10 items
ASIN: B007ICF6L6
Category: Business, Industry & Science > Cutting Tools > Indexable Inserts > Drilling Inserts
Domain: Amazon UK
Listed Since: 27 April 2017

Sandvik Coromant WCMX06T308-58235 U insert for drilling (Pack of 10)

Price History & Forecast

No Price Data Available

Price Distribution

Description

Key Features

Product Specifications

Similar Products You Might Like

Sandvik Coromant 435.B-0601-A1-XFH10F CoroReamer 435 solid carbide reamer

Sandvik Coromant SNGN120716T025206190 T-Max insert for turning (Pack of 10)

Sandvik Coromant DNGA150412S02035A7015 T-Max P Insert for Turning (Pack of 5)

Sandvik Coromant RCKT 19 06 00-PM S30T CoroMill 200 Insert for Milling

Sandvik Coromant 460.1-0405-020A1-XMGC34 CoroDrill 460 Solid Carbide Drill

Sandvik Coromant 860.2-1750-053A1-PM4234 CoroDrill 860 Solid Carbide Step and Chamfer Drill

Sandvik Coromant C8-PCLNR-55080-12HP T-Max P Cutting Unit for Turning

Sandvik Coromant SL-SDUCR-40-11XHP CoroTurn 107 head for back boring

Sandvik Coromant CRDCL3225P09-A T-Max shank tool for turning

Sandvik Coromant N123H1-040004S010257015 CoroCut 1-2 insert for grooving (Pack of 5)

Karnasch KARNASCH Hard-Line 55 Hard-Metal Curved Core Cutter Drill, 105mm Diámetro de Corte, 19mm Diámetro del Vástago, 1

Karnasch KARNASCH Hard-Line110 Core Drill with Carbide, 80 mm Diámetro de Corte, 110 mm Longitud de Corte, 32 mm Diámetro del Vástago, 1

Karnasch KARNASCH Hard-Line110 Hard-Metal Reinforced Core Cutter Drill, 55mm Diámetro de Corte, 110mm Longitud de Corte, 19mm Diámetro del Vástago, 1

Sandvik Coromant QS-3-80LL202034-10C CoroTurn 300 QS shank tool for turning

Karnasch KARNASCH Hard-Line 55 Hard-Metal Curved Core Cutter Drill, 100mm Diámetro de Corte, 19mm Diámetro del Vástago, 1

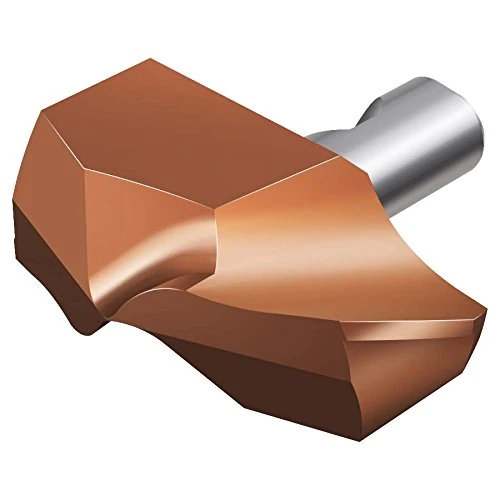

Sandvik Coromant 870-2858-28-PM4234 CoroDrill 870 drill tip

Karnasch KARNASCH Hard-Line110 Hard-Metal Reinforced Core Cutter Drill, 36mm Diámetro de Corte, 110mm Longitud de Corte, 19mm Diámetro del Vástago, 1

Karnasch KARNASCH Hard-Line 55 Hard-Metal Curved Core Cutter Drill, 115mm Diámetro de Corte, 19mm Diámetro del Vástago, 1

Sandvik Coromant R300-010A16L-05L CoroMill 300 face milling cutter

Sandvik Coromant 392.54023-4040115 BIG-PLUS ISO to Weldon/ISO 9766 adaptor

Sandvik Coromant C6-391.19-10080 Capto to Shrink Fit Chuck

sourcing map 10pcs Cobalt Jobber Drill Bits 5.7mm / 0.224" M35 High Speed Steel HSS Twist Drilling Bit Tool for Stainless Steel Copper Wood Plastic and other Hard Materials

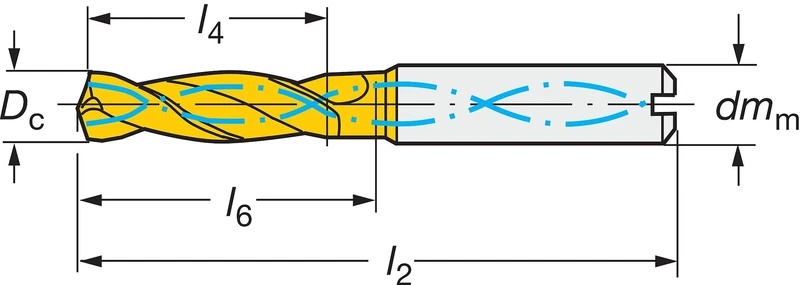

Sandvik Coromant R840-0420-50-A1A1220 CoroDrill Delta-C solid carbide drill

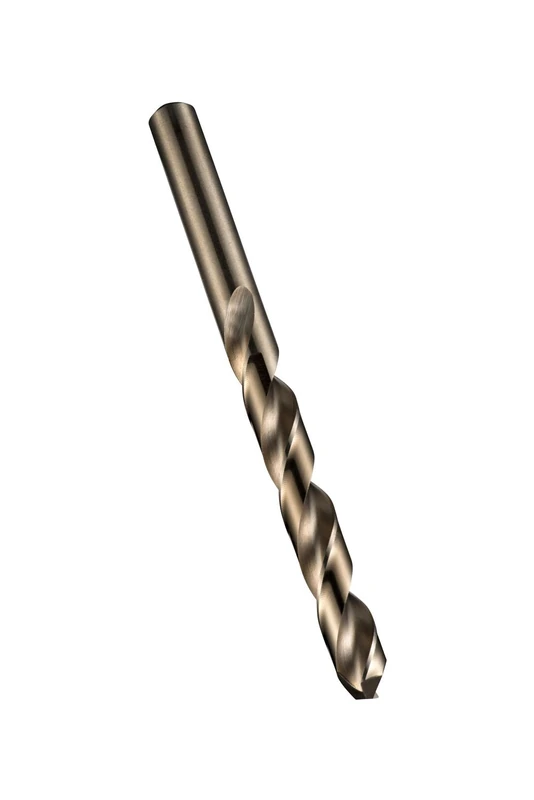

Dormer Jobber Drill, Pack of 10
