enjoy solar APsystems® EZ1D Micro Inverter 1800W with Integrated WLAN & Bluetooth and VDE Relay, Plug & Play Ideal for Balcony Power Plant (with Connection Cable)

Highlights: The APsystems EZ1D 1800W is the Wi-Fi version of the 3rd generation of the dual micro inverter from APsystems. It has a maximum output power of 1800W and can support at least four PV modules (2x2 in series) with an input power of 315-660Wp.

Double output power: The EZ1D has two input channels with independent MPPTs, so the EZ1D optimises the energy yield of your solar panels and accelerates the return on investment. An efficiency of up to 96.7%.

Highly integrated: Built-in Wi-Fi and Bluetooth, track the performance and status of your solar system anywhere on your mobile phone; with compact dimensions and integrated VDE relay; easy integration: the EZ1D adapts perfectly to high-performance PV modules with high input current.

Installation and reliability: easy plug and play installation with connection cable. The integrated relay for mains and system protection ensures the safe shutdown of the inverter in the event of a power failure or when disconnected from the mains supply. Thanks to the IP67 housing, the EZ1D is equipped for various weather conditions, ensuring durability.

Technical data: MPPT voltage range 56-90 V, operating voltage range 52 V - 118 V, maximum input current 20 A x 2, recommended PV module power range (STC) 315 Wp - 660 Wp+; rated output voltage 230 V/184 V - 253 V, rated output current 7.8 A; operating Temperature range -40°C ~ +65 °C, dimensions 283 mm x 233 mm x 39.5 mm, weight 4.2 kg.

Compliance: EN 62109-1/-2; EN IEC 61000-6-1/-2/-3/-4; VDE-AR-N 4105.

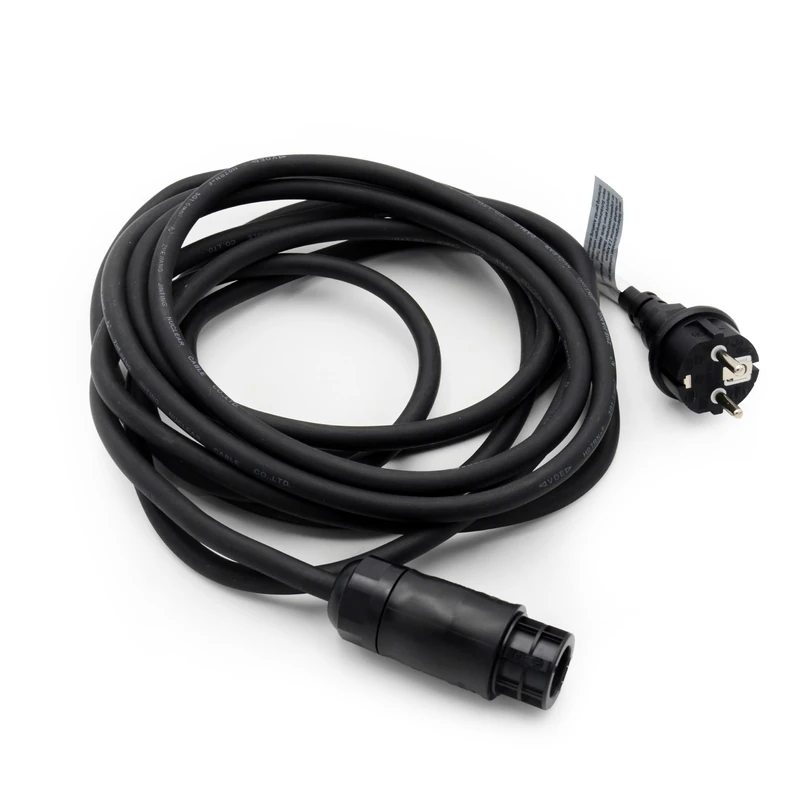

Connection cable: the connection cable connects your micro inverter to an ordinary earthed contact socket (Schuko). The cable is equipped with the Betteri BC01 plug on the reverse side and with a Schuko plug type F on the socket side. This connection cable is ready for connection between the micro inverter and your power supply. Length: 5 m; rated voltage: 300/500 V CE; rated current (BC01): 20 A.
