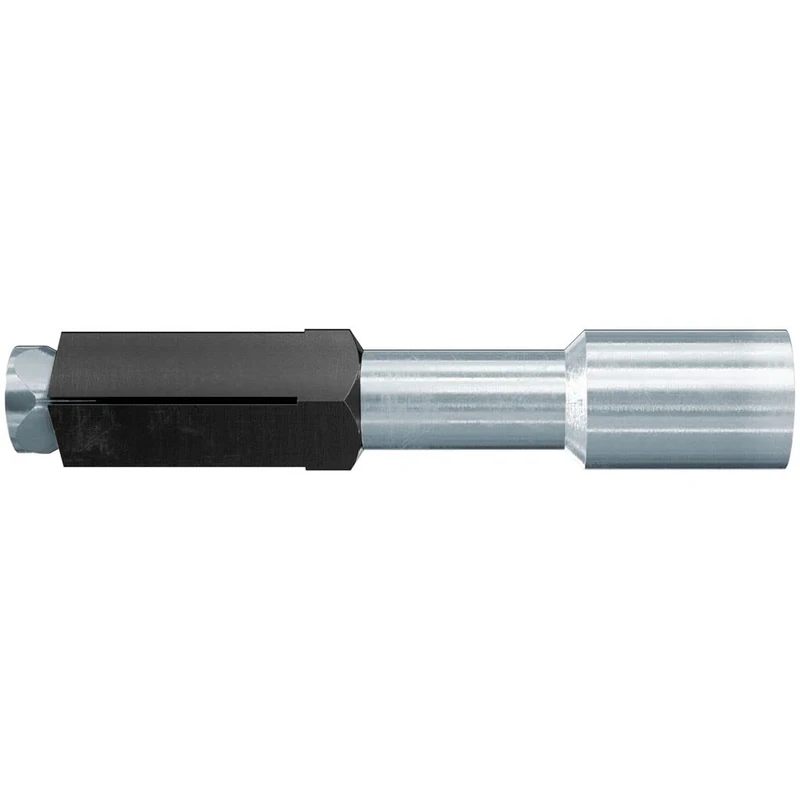

fischer 566667 FHY M6 electroplated Plug, Grey

Easy mounting tapped socket for fasteners in honeycomb slabs The FHY dowel for honeycomb slabs is a tapped socket made of electro-galvanized steel. The FHY is suitable for pending assembly. It is manually inserted into the drill and driven with a hammer with a flower hammer from the surface of the support. When applying the tightening torque, the cone is pulled into the socket. The bushing expands into the cavities or against the wall of the drill in solid materials. The FHY dowel for cellular slabs is ideal for fixing pipes, cable trays and ventilation ducts in pre-stressed concrete slabs inside. Advantages: The principle of operation of the anchor allows its use in hollow or solid areas of the material up to 5 cm of the prestressing reinforcement, for high flexibility and easy mounting. The collar prevents the socket from slipping into the hollow area and thus allows for trouble-free installation. The optimised geometry reduces installation energy and allows use in small spaces for simple assembly. Metric tapping allows the use of common screws or threaded rods, for an ideal fit for the application. Operation: The FHY is suitable for pending assembly. Manually insert the FHY dowel into the drill and hammer it until flush with the surface of the bracket. To expand, the FHY dowel rests on the element to be fixed. When clamping, the cone is pulled into the socket and expands it into the cavity or against the walls of the drill into the solid material. Screw length Ls = Minimum screwing depth e2 + Tfix thickness + Washer thickness (for threaded rods: + nut height). Material: Approved for: Cellular tiles ≥ C45/55 Applications: Piping Cable Trays Ventilation Systems Sprinkler Suspended ceilings Consoles Metal Constructions Wood Constructions Features: Anchor length: 37 [mm] Nominal drill diameter: 10 [mm] Fire resistance: Yes Material: Electro zinc plated steel. Tapping: M6. Max. screwing depth. : 45 [mm] Minimum drilling depth. 50 [mm] Minimum screwing depth. : 37 [mm] Minimum anchoring depth. : 30 [mm] .
