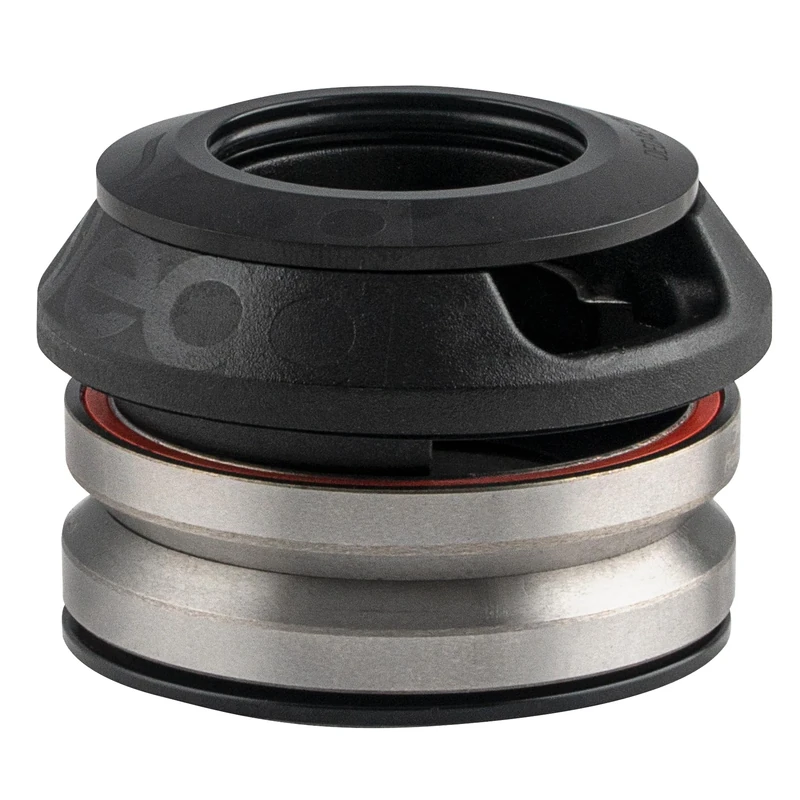

Deda Elementi DCR Intergrated Headset, 1.5"-1.5" (36°x45°), Black

Deda Elementi DCR Headset Integrated headset for DCR (Deda internal cable routing) system and compatible with Vinci, Alanera and Superbox stem. It allows the full integration of the cables through the headset bearing. The DCR system works with a standard tapered fork steerer (1-1/8” - 1.5”) but requires a 52mm (1.5”) upper headset bearing od. The special compression ring design leaves room for the cables to fit the gap in between the headset bearing and the fork. The DCR topcover for Alanera & Superbox or Vinci is not included in the kit, but available to purchase separately. Headset model: integrated 1.5” - 1.5” Bearings type: angular contact bearing; chrome steel Bearings size: upper 51.9x40x8mm; lower 51.9x40x8mm Contact angle: Upper: 45°×45° | Lower: 36°×45° Headtube: ø 56.0mm Fork steerer: tapered 1 1/8” (28.6mm) - 1.5” (38.10mm) Top cover: ø 56mm Crown race: ø 39.8mm aluminium Stack height: 9.6mm (8.8 + 0.8) Weight: 80 grams Note: compatible with ø 56mm frame headtube designed for 1.5” bearings (upper & lower). The DCR top cover for Alanera, Vinci and Superbox is not included in the kit, but available to purchase separately.
