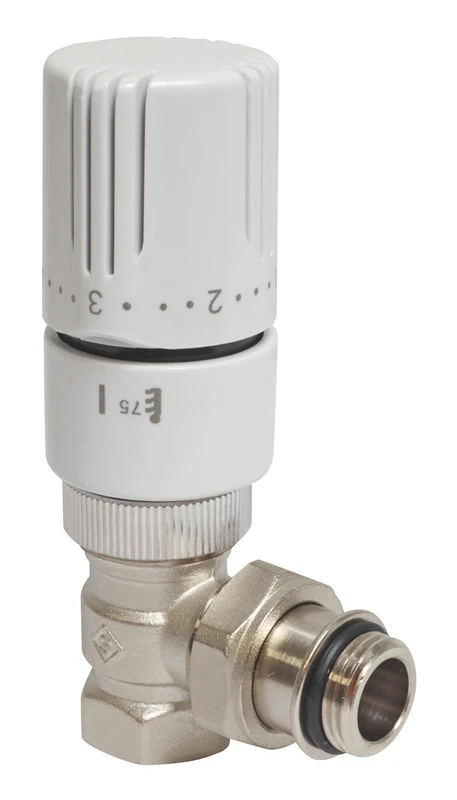

SOMATHERM FOR YOU - Set with T301 Thermostatic Head Complete Universal Angle for D14 Copper Tube

Features Thermostatic head T301: - Liquid expansion thermostat - Dimensions: Ø40mm x 80mm - Threaded nut: M30x1. 5 - Temperature range: 6°C to 28°C - Allowable ambient temperature: -15°C to +50°C - Maximum heat carrier fluid temperature: 110°C - EN215 and Keymark with thermostatic valves ref 450U and 455U - Hysteresis (C): 0.35 K - Influence water temperature (W): 0.75 K - Differential pressure influence (D): 0.55 K - Response time (Z): 23 minutes - TELL rating: class I (≤0. 5) - Estimated VT rating: VT 0. 5 - The position corresponding to 20 °C is at the point "3" - Marked logo Somatherm Material Thermostatic head: - ABS head - Transmission stem in C72 steel - Body in PC and ABS - Locking washer in Pa66 30%FV - Threaded nut in Brass CW617N - Cartridge and pressure gauge in POM - MM spring in thread Steel DIN 17223 class D Characteristics Thermostatic valve 550 : - Dimensions angle valve: 65x60x35 mm - Maximum static operating pressure: 10 bar - Maximum operating temperature: 120 °C - Maximum differential pressure: 1 bar - Rated flow: 200 kg/h - KC flow rate v1 (∆) t=-1K) = 0. 33 - Flow rate Kv2 (∆t=-2K) = 0.63 - Flow rate Kvs (qm max) = 1.6 (average) - EN215 and Keymark with thermostatic heads ref T301, T302 and T303 - Embossed marks: direction of circulation, Keymark logo, Somatherm brand logo Tap connection : - L Thermostatic head side: M30x1,5 - Input side: Female 15/21 - Output side: Male 15/21 - - O-ring Valve material: - Nickel plated brass body CW617N - EPDM O-ring - Stainless steel spring, washer and stem Features Detentor: - Angle valve dimensions: 2. 362x1 10 bar - Maximum operating static pressure: 10 bar - Maximum operating temperature: 120 ° C - O-ring sealed stem - Embossed marking : connection size, Somatherm brand logo Connection Control elbow: - Input side: Female 15/21 - Output side: Male 12/17 - O-ring - Machine connection 15/2 1 / Female 12/17 Material Handle elbow: - Brass body CW617N nickel-plated - EPDM O-ring Features Air draper: - Dimensions: Ø24x22 mm - Square drain 5 mm - Swivel drain plug - Male connection 15/21 - O-ring Material Air drapery: - Nib brass body chelated CW617N - EPDM O-ring - ABS drain plug Features Drain tap: - Dimensions : 32x27 mm - Flow rate: 100 L/H - Male connection 15/21 - O-ring Material Drain tap: - Brass body CW617N nickel-plated - EPDM O-ring - Empty tap ABS ado 5mm square emptying faucet wrench Silicone connection 15/21 with nylon ring for Ø14mm copper tube
