£62.82

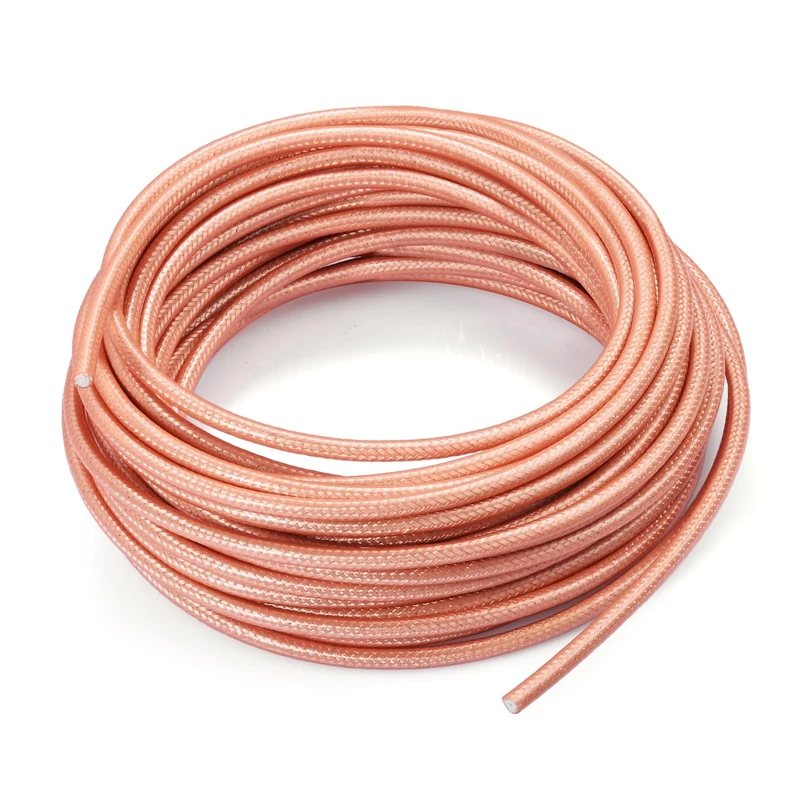

Eightwood RG400 RF Coax Cable 50ft, M17/128 Double Shield Coaxial Cable for Base Station Ham Amateur Radio Antenna Jumper

Name: Eightwood RG400 RF Coax Cable 50ft, M17/128 Double Shield Coaxial Cable for Base Station Ham Amateur Radio Antenna Jumper
Brand: Eightwood
Price: 64.25 GBP
Availability: InStock

Silver, ZRG40050

Coaxial Cables

Price History & Forecast

Last 26 days • 26 data points (No recent data available)

Historical

Generating forecast...

Price Distribution

Price distribution over 26 days • 2 price levels

Days at Price

Price Analysis

Most common price: £63 (23 days, 88.5%)

Price range: £63 - £64

Price levels: 2 different prices over 26 days

Description

Specification Nom. Capacitance Conductor to Shield(pF/m):105 Nom. Characteristic Impedance: 50ohm Nom. Velocity of Propagation:70% Min. Bend Radius(Install):25mm Voltage Rating(VMS):1900 Max.Operating Frequency:12400MHz Nom. Attenuation( dB/m): 0.144(100MHz) Nom. Attenuation( dB/m): 0.295(400MHz) Nom. Attenuation( dB/m): 0.482(1000MHz) Nom. Attenuation( dB/m): 1.184(5000MHz) Nom. Attenuation( dB/m): 1.899(11000MHz)

Key Features

RF double shielded RG400 coax cable 50 feet; Max. Operating Frequency: 12400MHz

Material--Inner conductor: silver plated copper | Insulator: PTFE (Teflon) | Outer conductor(shield) : silver plated copper double braid | Jacket: FEP

Double Shielding: RG400 is with a double silver-plated copper braided shield, providing excellent protection against EMI and RFI

High Temperature Resistance: featuring a PTFE dielectric and FEP jacket, the cable can withstand temperatures of up to 220℃

Application: base stations, mobile systems, radio systems, test cables. RG400 can be processed into jumpers with some 50-ohm connectors, including SO239, PL259, BNC, N-type, TNC, SMA, etc

Product Specifications

Brand: Eightwood
Model: ZRG40050
Colour: Silver
Size: 50'
ASIN: B0C1ZT7MF4
Category: Electronics & Photo > Home Cinema, TV & Video > Accessories > Cables > Coaxial Cables
Domain: Amazon UK
Listed Since: 16 April 2023
