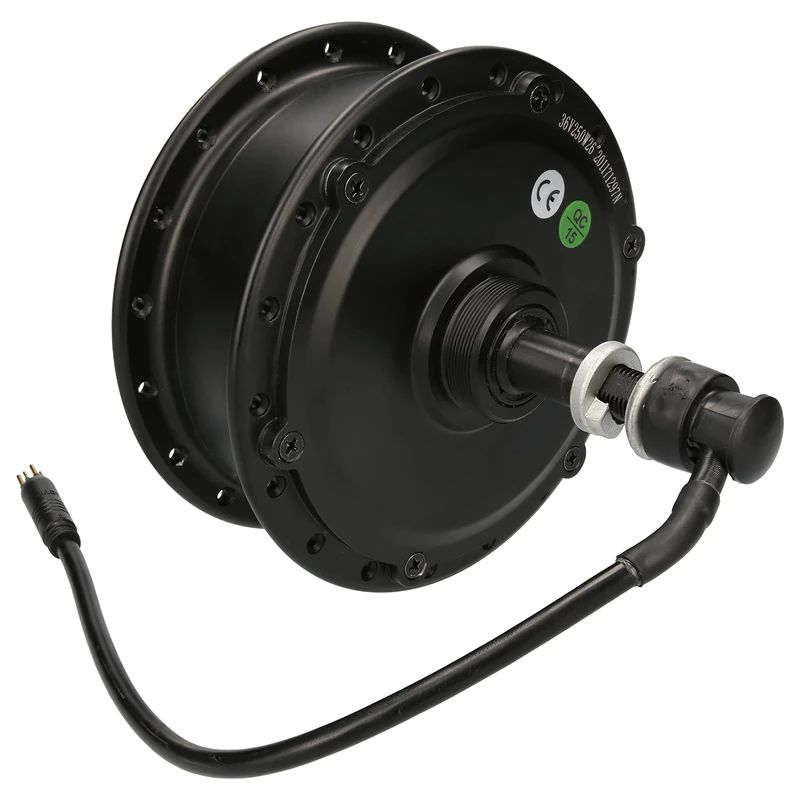

windmeile | e-bike hub motor rear wheel, black, 26', 36V/500W, e-bike, electric bike, pedelec

Function: With the windmeile unpowered e-bike rear hub motor, almost any bike can be easily converted to an e-bike / pedelec.

Technical features: The unenergized hub motor in black has a power of 500W and 40.0Nm torque at a voltage of 36V. Integrated are Hall sensors and speed sensors. The motor also has a standard 6-hole brake disc mount that can be used to mount your brake disc. Our motors have a disc brake mount, whether shoe brakes are also suitable, depends on your rim.

Physical characteristics: The motor is compatible with a wheel size of 26 inches (559-19). The installation width is 135mm and the jaw width is 19.0mm. The aluminum 6061-T6 rear wheel also has a hole count of 36 holes. The rear wheel motor is 97.5mm wide and has a diameter of 155mm. The sprocket mount is suitable for 6- to 7-speed screw sprockets. Compatible screw sprockets can be found in our store.

Connection: A 9-pin motor cable is required to connect to the controller. You can find this in our store, either with Waterproof connectors (Julet) or Professional connectors (JST).

Accessories: For easy assembly and best compatibility, we recommend suitable accessories, such as matching spokes or the motor cable from windmeile, found either in the Amazon Store or on our website with detailed advice and instructions on our products, for your special e-bike or pedelec experience.
