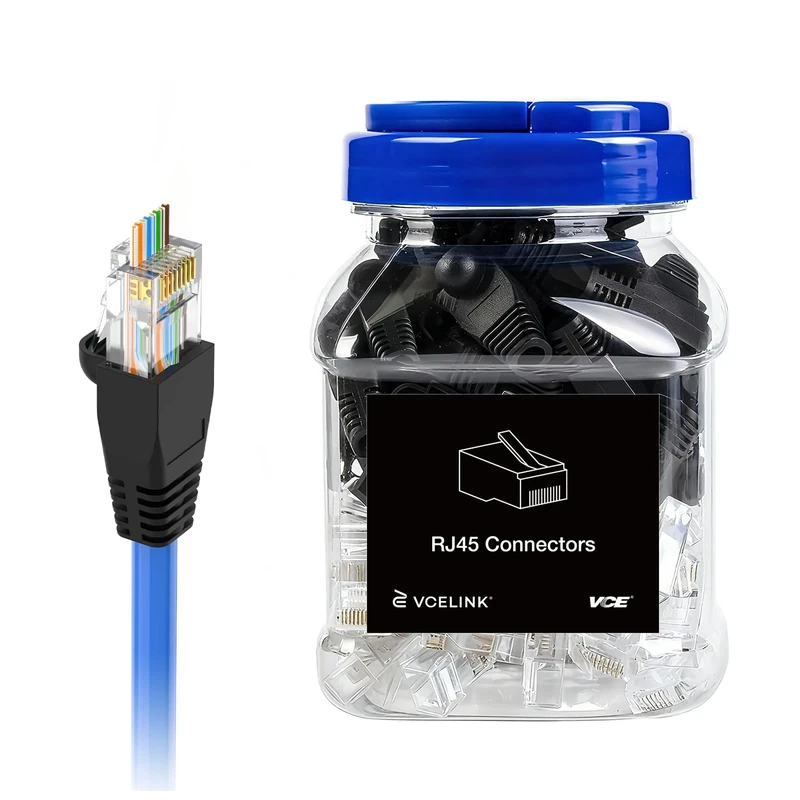

VCELINK Gen2 Cat7 RJ45 Pass Through Connector Cat6A Network Plug Shielded Gold Plated for Ethernet Cable Cat7 Cat6A with Load Bar and RJ45 Boots Cover 10Pack Black

Applicable ethernet cable: This CAT6A RJ45 connector can be compatible with both stranded and solid CAT7/CAT6A cables. (not compatible with CAT8, CAT6, CAT5e, and CAT5 versions). Supports 23 AWG inner conductor and insulation OD 1.35~1.45mm; the OD MUST meet the requirements. The sheath used for LAN cable OD is 7~8mm. For this RJ45 connector, the core wire of CAT6 CAT5E CAT5 is too thin, which will cause the core wire slide inside the load bar, making it impossible to crimp correctly.

Improve Installation Success Rate: Gen 2 CAT 7 connector pass through is the second generation of CAT7 connector. Compared with the Gen 1 connector, this Gen 2 connector end allows you to identify wire sequences before crimping. To avoid wrong wire lining problems and waste. It's also easier to insert the wires through the connector with the help of the attached lord bars.

Pass Through Type: the order of wiring can be double checked by the pass-through design of the RJ45 connector cat6A. Thus, the assembly process is much easier than the conventional type, which can reduce the error rate. Professional RJ45 crimping tool is required for this.

Material and Performance: Cat7 plugs RJ45 shielded housing: copper alloy; contact plate: copper alloy, thickness of gold plating, reduce signal interference. Durable material for easy plugging and unplugging, and improving the quality of signal transmission.

Packaging and After Sales Service: 10 xpass through plugs, 10 xRJ45 boots cover, 10 xload bar, 1 x operation manual. Invoice including VAT can be issued. 18-month product warranty.
