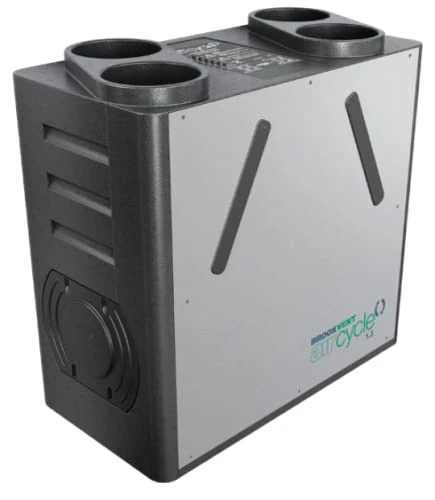

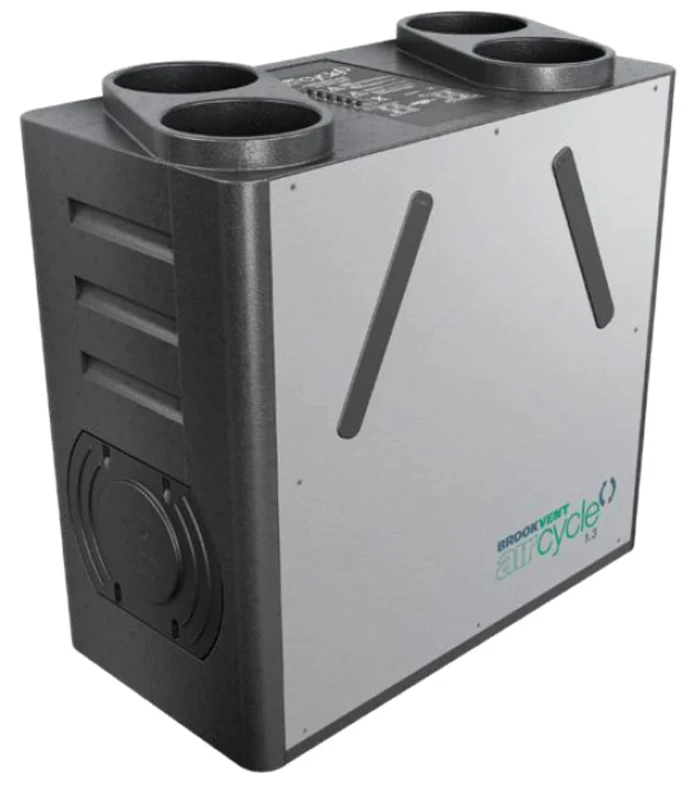

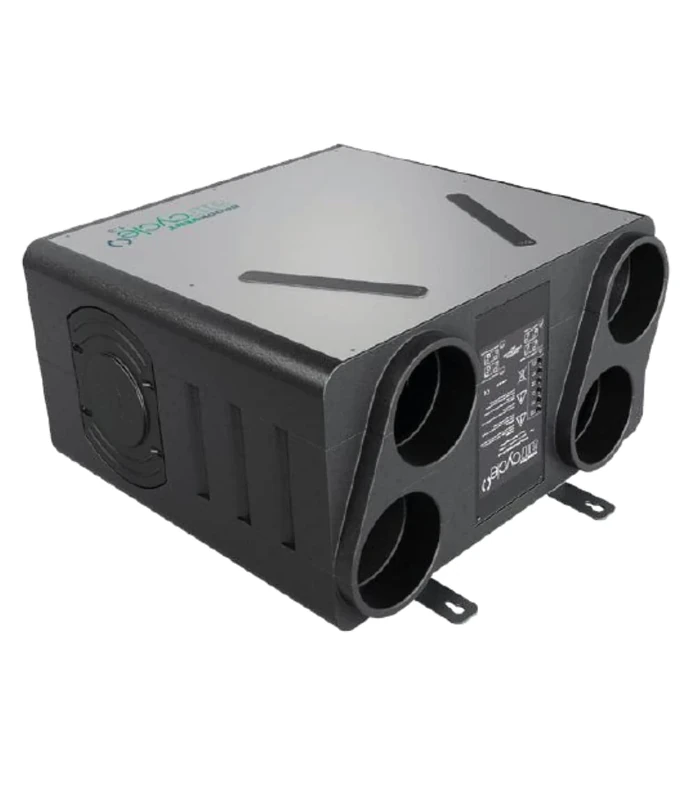

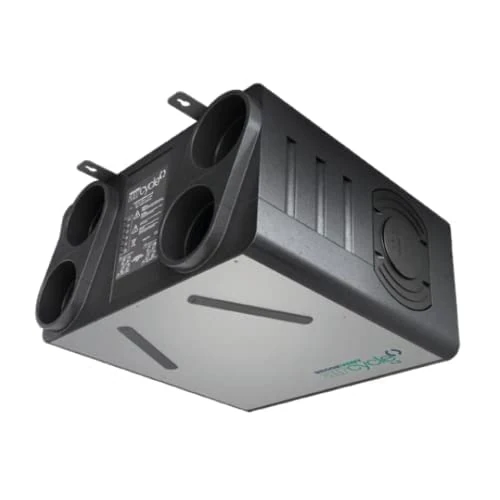

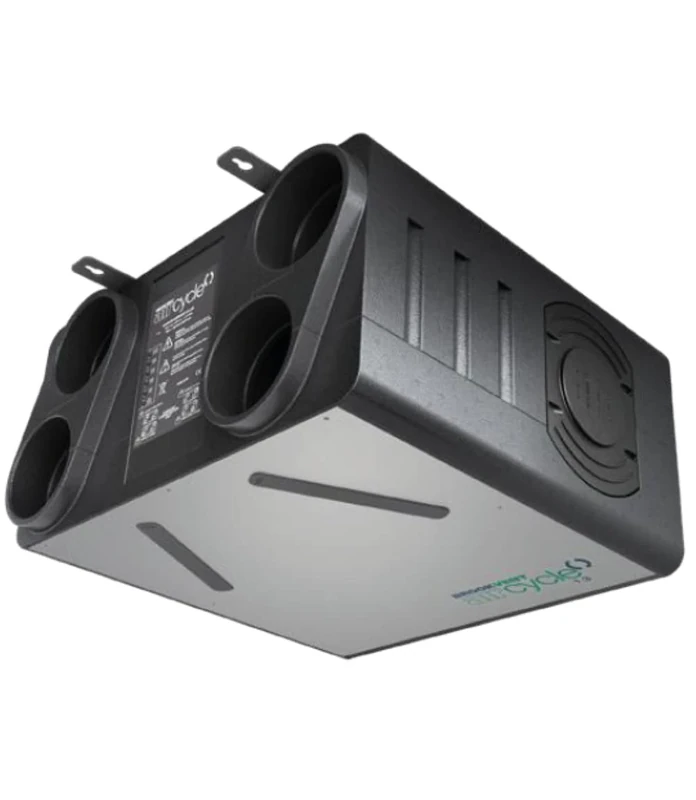

Brookvent Aircycle 1.3+ Heat Recovery Ventilation Unit | Floor Mount | Summer Bypass | Digital Control| Standard Configuration

Up to 87% heat recovery efficiency - The heat from the extract air being taken from the wet rooms to that of the fresh air supply stream. This ensures high levels of indoor air quality can be maintained while greatly minimising heat loss.

Down to 0.45w/l/s specific fan power - Streamlined, low-turbulence airflow path design coupled with state-of-the-art EC fan technology ensures the air cycle 1.3 range has one of the lowest power consumptions (W) per volume of air (l/s) outputs in its class, minimising running costs and setting a new standard in HRV system efficiency.

Integral humidistat - Continuously monitoring the humidity level (% RH) of the extract air from the property, the system’s integral humidistat automatically operates the boost (high) setting of each fan to reduce indoor humidity levels to the preferred, adjustable RH comfort level.

Summer Bypass - A variable, tempering summer bypass mechanism operates by gradually increasing the amount of air directed around the heat recovery core as the temperature of the supply air from outside rises. This automatic feature helps to ensure total user comfort during warmer summer months by reducing the amount of heat being added to the fresh, filtered supply air.

Auto-Boost Integration - The programmed boost (high) speed setting can be easily triggered via any 230v switched live signal (e.g. bathroom light, PIR motion sensor, boost switch, BMS) offering multiple means of intelligent, automatic control integration. This ensures pollutants are extracted immediately when created and at a much quicker rate.

Automated Frost Protection - the supply fan to turn off for 5 minutes every hour when it senses temperatures below the 5 oC the set level allowing the warm extracted air from the home to pass through the core unaccompanied by the cold fresh in-take air. This action succeeds in regularly raising the overall temperature within the Heat Recovery System preventing the potential formation of ice particles which could cause damage

Tool free easy access filters - The filters of this HRV unit will usually need to be changed every 6 – 12 months depending on occupancy/ use, and the type of environment the dwelling is located in (I.e. urban/ rural, and their associated levels of airborne pollutants).

Lower Power Consumption – The Unit has a low power consumption which will save the environment but also save you money.
