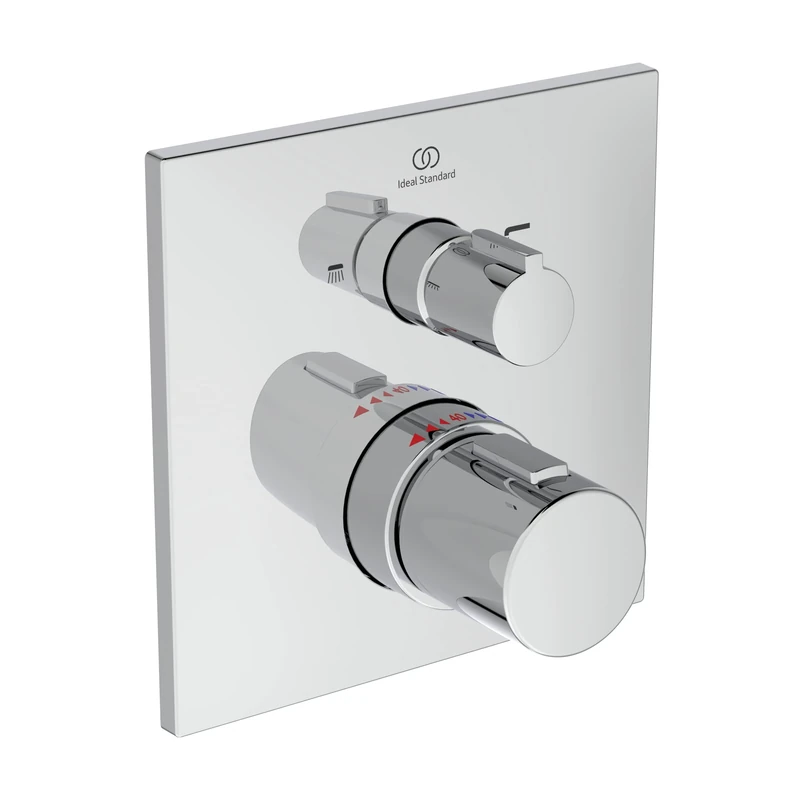

Ideal Standard A7522XG Ceratherm C100 Flush-Mounted Bath Thermostat

Bath thermostat. Series: Ceratherm C100 Wall, flush-mounted. External dimensions (W x D x H): 163 x 83 - 105 x 163 mm Mounting type: flush-mounted kit. Easy-Box required for installation (sold separately) Tap handle: metal handle Handle with temperature marking: red and blue Cartridge life test 500,000 cycles. Hot water temperature limiter: integrated. Upper part ceramic Noise behaviour DIN 4109: Group 1 Service life: DIN EN 817, DIN EN 200 Flow at 3 bar: 22 litres Temperature resistance continuous load: 80 degrees Temperature resistance peak load: 95 degrees Water-saving position (ECO). Temperature control: thermostatic With 1 square rosette made of metal. Rosette (W x H): 163 x 163 mm Handle attachment material: plastic Leak-fix system: separate sealing of each opening for optimal protection of the building against moisture and water. With switch unit, switch with shut-off Temperature lock: 40 degrees Colour / surface: silk black (matte) Surface: varnished. Weight: 1.740 kg Article number: A7522XG Required accessories: A1000NU, EASY-Box Flush-Mounted Kit 1 Optional accessories: A960704NU Extension A962476NU Extension A963606NU Cartridge
