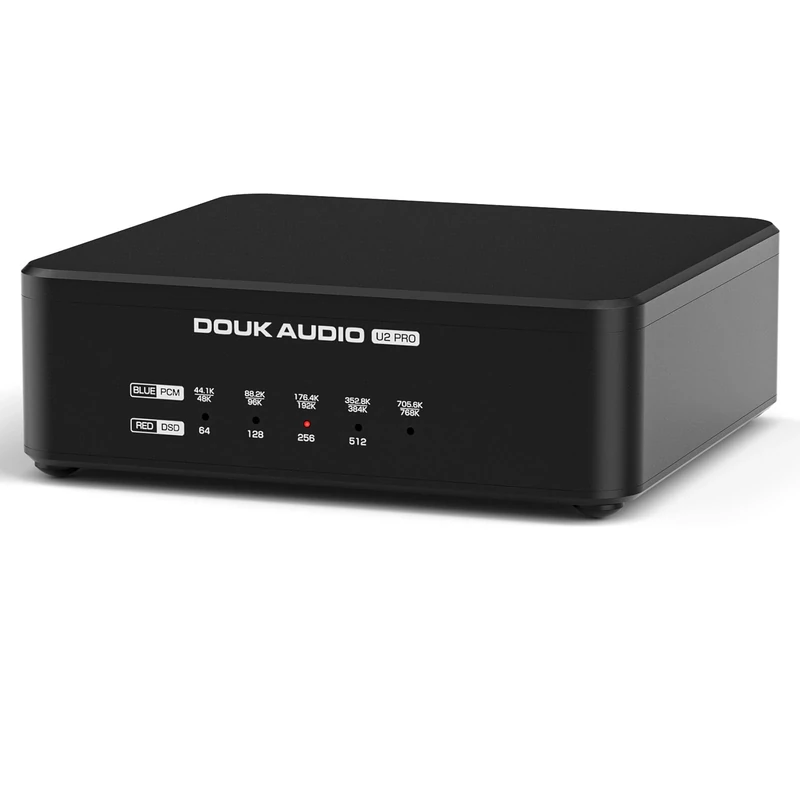

Douk Audio U2 PRO XMOS XU208 Digital Interface, USB to TOSLINK Coaxial/Optical/HDMI IIS Audio Adapter, for DAC/Preamp/Amplifier, Support PCM & DSD256

Warm Tips 1. 12S output supports all sampling rate while S/PDIF supports 192KHz and DOP DSD64 at highest. 2. The pins of 12S is suitable for the HDMI interface of PS decoders. 3. Please set the volume of operation system to maximum(100) if you want to listen to DSD music. Parameters Audio input: USB Audio output: Toslink Optical / Coaxial / HDMI IIS USB chip: XMOS XU208 Supported sampling rate: PCM: 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 384KHz DSD: 2.8MHz(DSD64)-DOP, native / 5.6 MHz (DSD128) -DOP, native / 11.2 MHz (DSD256) , native Bit width(highest): 32 bit (I2S output) / 24 bit (S/PDIF), compatible with 16bit Working current: 130mA Dimensions(W*D*H): 74*89*21mm / 2.91*3.50*0.83in Net weight:112g/ 0.25lb Package weight: 280g / 0.62lb System Compatibility 1. 32/64 bit Win 7, Win 8 and Win 10 systems need to install driver, please enter website: https://drive.google.com/drive/folders/1ZjWBDD5Te-a8O64fCstuOKIwGRo766wD?usp=sharing to download and install. 2. Native ac OS 10.6 and above, can use the system's own driver. And Native Linux with UAC2 compliant kernel also can use the system's own driver.(Has tested on Ubuntu and Daphile systems, based on INTEL X86) 3. In general, USB input default supports Android 5.0 system while Android 4.2 and above need phones with OTG function. Recommend to use Hiby player to play DSD music. OTG cable (for Android system) or camera kit (for IOS system) need to prepare by youself. Packing List 1*U2 PRO Converter 1*USB Cable 1*USB to DC Cable 1*Driver CD
