Bticino Legrand Video Door Intercom Set 2-Wire Flex One Class 100 V16E with 5 Inch Colour LCD Display Door Station Linea 3000 105° Wide Angle Camera LED Lighting 364922 Family House IP54 IK10 364922

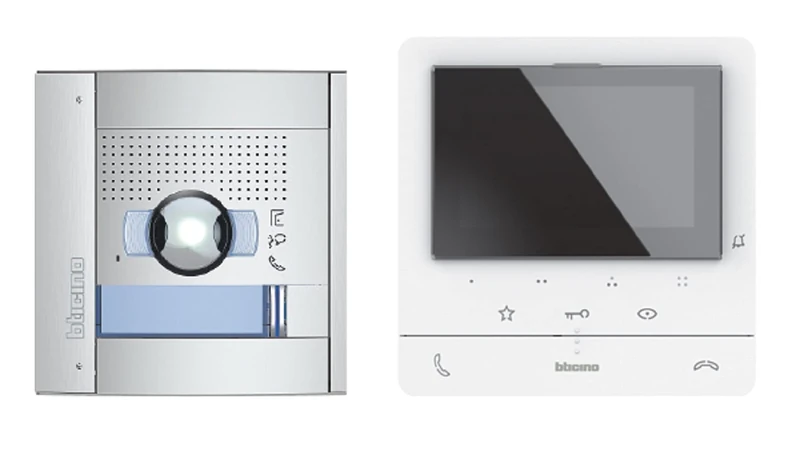

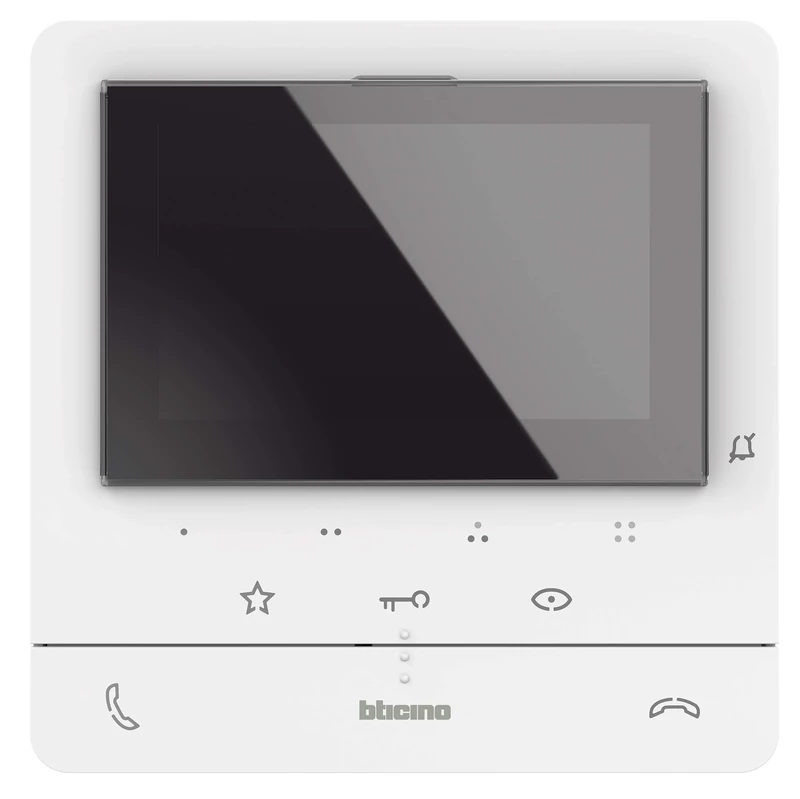

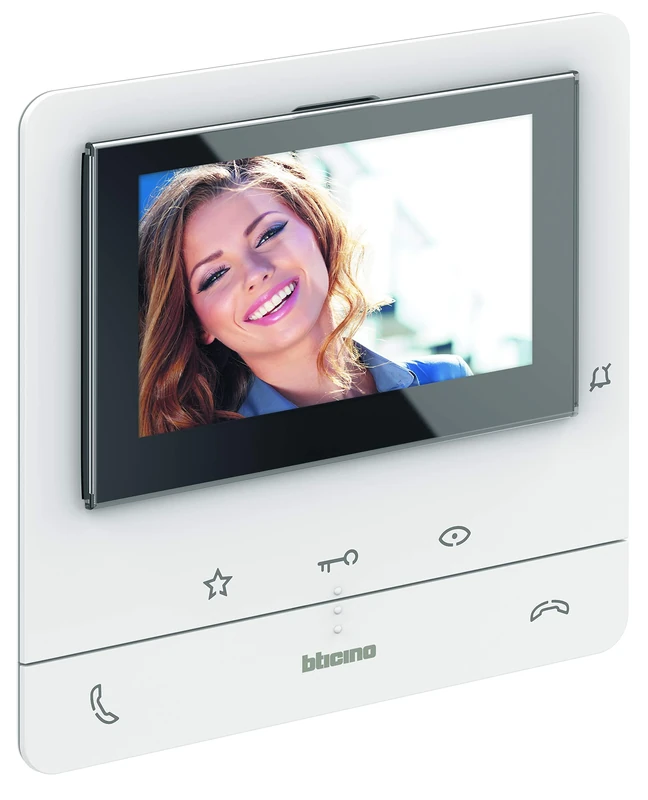

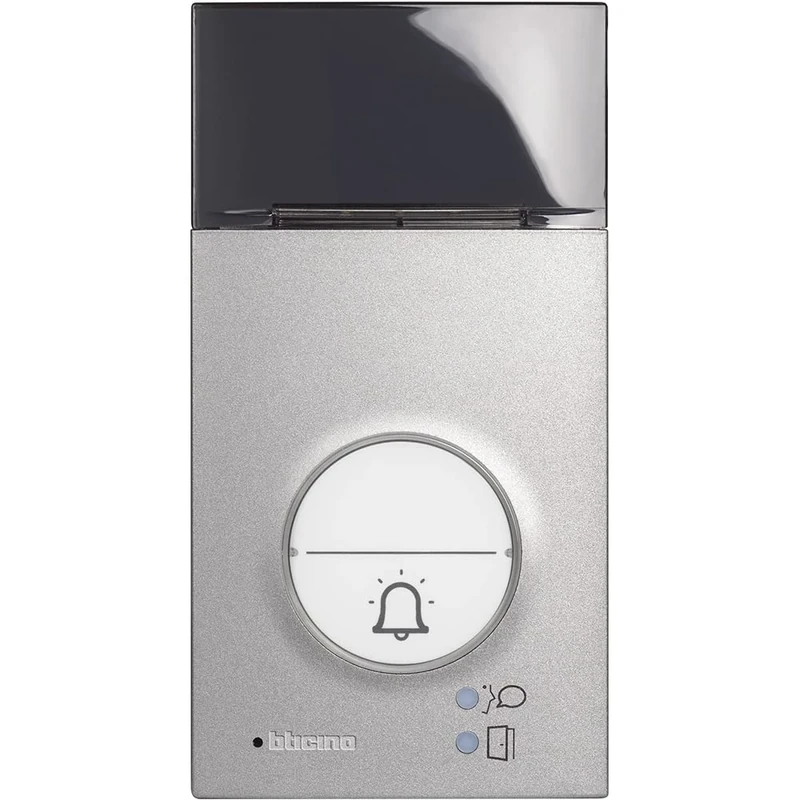

Flex'One video set with door station Linea 3000 and house station Class 100 V16E. The set in 2-wire technology contains all the necessary parts to realise a single-family house intercom. The extension to a two-family house is done by adding a 2nd House station of your choice. The set consists of: 1 surface-mounted door station Linea 3000 with front panel made of ZAMAK. Camera lighting with white LEDs for better night vision. Shooting Angle: 105° Horizontal / 80° Vertical (Cannot Pivot) Includes 2 call buttons as standard and can be configured as a single or two-family house using a slide switch. Equipped with name plate including brightness controlled backlight (white LEDs) and status LEDs for conversation and door opener. The door opener (max. 30 Ohm internal resistor) is connected directly to the S+ and S- terminals (18V, 4A surge, 250mA holding current). The door station can be used by means of a flush-mounted socket (No. 350020) and accessories (order no. 343061) flush-mounted. Protection class IP 54, impact resistance IK 10, dimensions: W × H × D: 100 × 190 × 26 mm, colour: similar to RAL 9007, 1 video power supply, 1 hand-free surface-mounted house station Class 100 V16E with induction loop for hearing aid carrier, 2-wire bus system, colour LCD display 5 inches. " (12, 7 cm), with induction loop for hearing aid wearers, free intercom, in addition to the two physical call buttons (accept or end calls), it has 3 sensor buttons for the functions: open door, turn on staircase light (activator order no. 346210 is required) and switch door station. It also contains 4 freely configurable additional buttons (e.g. for internal talking, additional door opener, etc.). 16 melodious ringtones adjustable. Includes doctor's circuit / door mat function. For door/floor call with call differentiation. Volume of ringing and conversation as well as colour and brightness of the screen are set via the OSD menu, which is operated via a side control. LED indicator: call shutdown, door open and connection status Surface-mounted using the included wall bracket. A table accessory (pack of 2 from order no. 344692 are required) is sold separately. Connection for bus, floor call and additional ringing mechanism. Dimensions W × H × D: 164 × 165 × 18.5 mm wiring diagram and instruction manual (English language not guaranteed).
