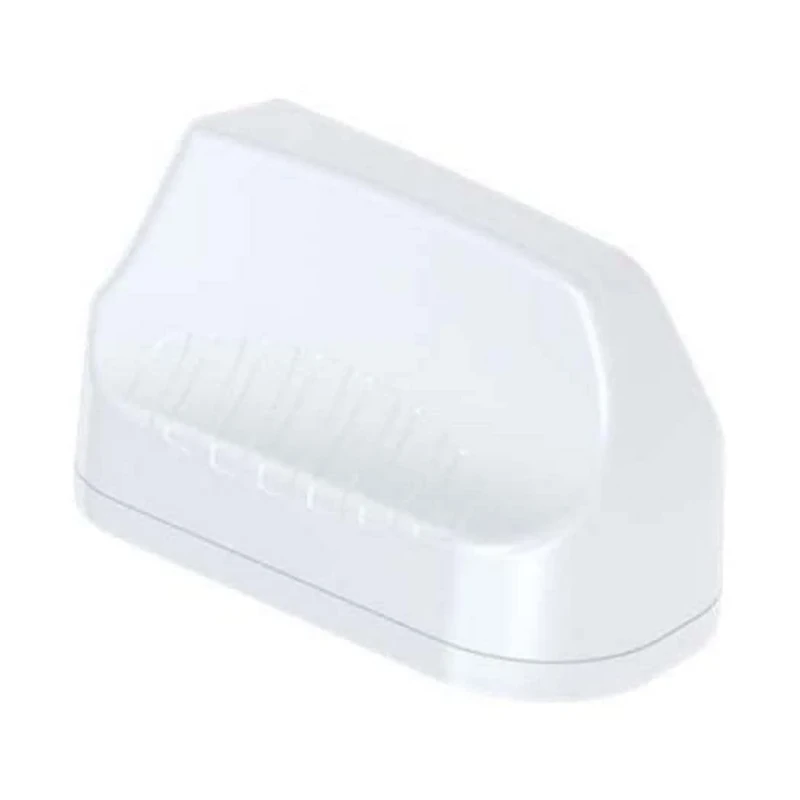

Poynting PUCK-5 Antenna

Poynting’s PUCK-5 antenna offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities and Transportation markets. This 5-in-1 antenna boasts 2×2 MIMO LTE, 2×2 MIMO Wi-Fi (Dualband 2.4GHz & 5GHz) and GPS/GLONASS within the same enclosure, while keeping implementation as simple as possible with its many mounting options. Due to excellence in engineering and a solid design, this antenna provides exceptional performance for its small size. The 2x Cellular MIMO antennas (for 2G/3G/4G) cover the 698MHz to 2700MHz band, which includes the most popular international LTE bands. The antenna provides 2x dual-band Wi-Fi antennas, providing concurrent 2.4GHz and 5GHz on each antenna, capable of 802.11n, 802.11ac and the new 802.11ax with 2×2 MIMO. The fifth antenna is a high performance active GPS/GLONASS system operating at temperatures as low as -40ºC. Poynting’s new PUCK antenna range provides easy installation with the multiple mounting options. This includes as standard: Spigot Mount – two different lengths included (40mm & 80mm),Vertical Pole mount (inner & outer mounting for smaller and larger poles), Horizontal Pole Mount (e.g. marine rails), Magnetic Mount, Surface Mount (Double Sided Tape), Wall Mount. For the white version search for partcode A-PUCK-0005-V1-01-W.
