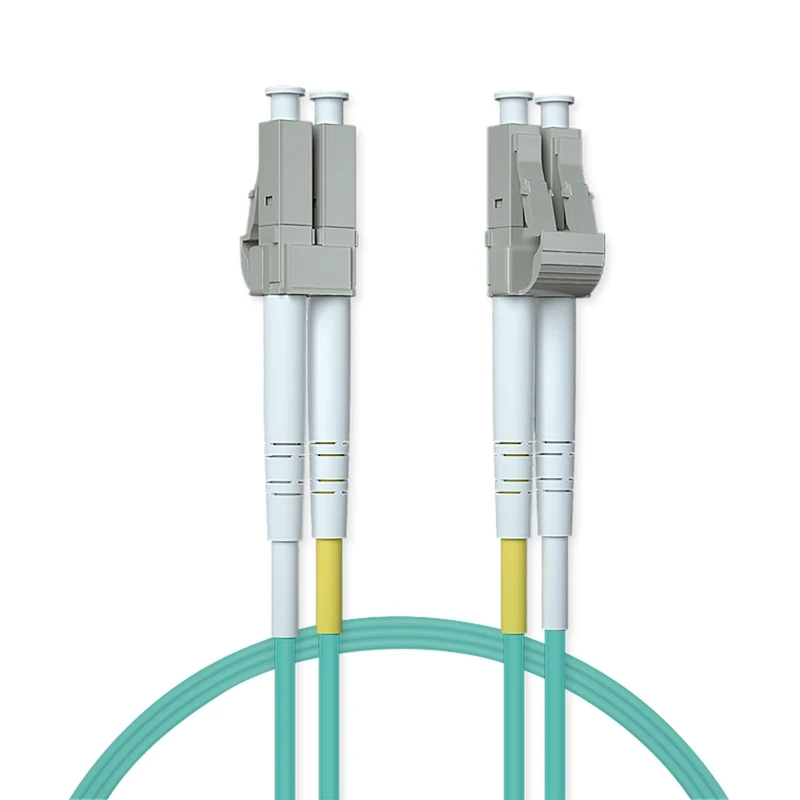

Ipolex LC to LC Fiber Patch Cable, 20m, 10Gb OM3, Duplex 50/125μm, LSZH, for MMF SFP/SFP+ Transceiver, Compatible with Router, Switch, Server, Transceiver

Widely Used: OM3 LC to LC fiber patch cable 10Gb is designed for high density applications in gigabit ethernet, local area networks, wide area networks; fiber channel, data center; for 40G-SR4 Bidi, 25G-SR, 10GBase-SR, 1000Base-SX, SFP+ and QSFP+ transceivers etc; for 10G/40G/100G Ethernet connections.

Transmission Distance: 1Gb ethernet distance of 550 meters@850-nm; 10Gb ethernet distance of 300 meters@850-nm; 25Gb ethernet distance of 70 meters@850-nm; 40Gb ethernet distance of 100 meters@850-nm/890-nm.

Physical Characteristics: minimum bend radius 7.5mm, 50/125μm, LSZH, 100% insertion loss test; MMF, Insertion loss≤0.3 dB, Return loss≥30 dB, insensitive to bending ensures small optical loss and stable transmission applicable to SAN network cabinets that require 20.

Standards Compliant: IA/EIA 568-C.3 / 604-10 / 492AAAA, IEC60793-2-10 A1b, CE and RoHS. PVC/LSZH fiber cable (low smoke zero halogen); insertion loss fiber core; zirconia ceramic ferrules.

Flexible installation: the optical patch cable with adjustable clips and removable dust caps that protect the fibres during installation. Embossed A/B position labels on the duplex clip allow quick identification during installation, testing and troubleshooting.
