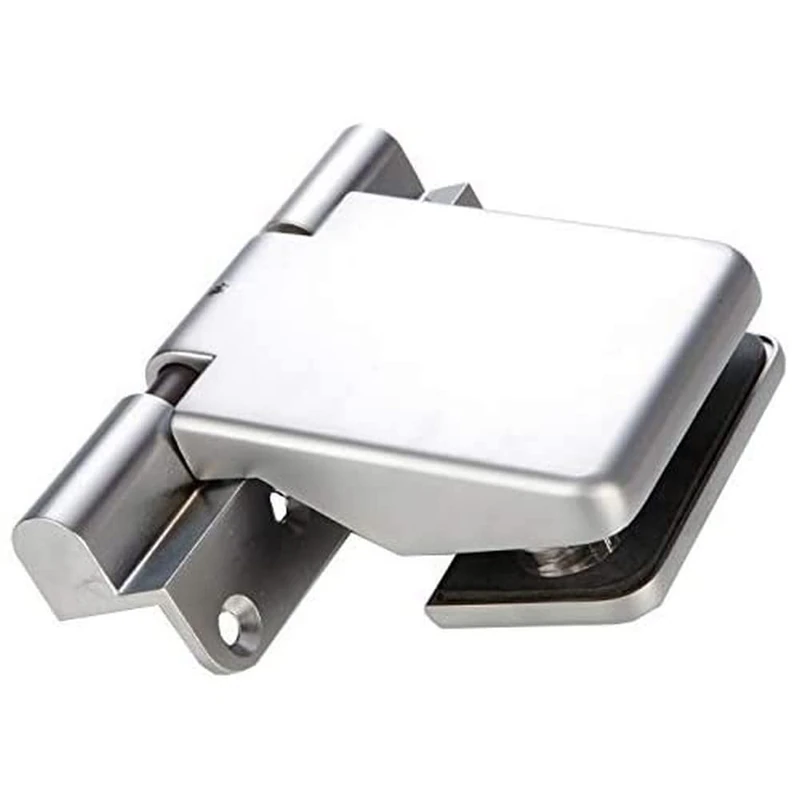

Eliga eliga Door Hinge Self-Closing Angle Shape Matt Chrome DIN Left

Self-closing eliga door hinge design angle shape matte chrome for private and commercial use; self-closing in the opening range 0° - approx. 140°; fixed in the range of approx. 140° - 180°; saves heat and energy, as no more unlocked doors by careless users. With European patent protection; door leaf can be installed flush to the floor, when opened, the door panel is slightly guided upward; attachment with screw-on strap in the door rebate; height/side adjustment of the glass door 2, 25 - 4.5 mm is possible depending on the installation position of the adjustment centre; glass door strap made of corrosion-free zinc die-casting, pivot bolts and screws made of stainless steel. Glass Door Thickness (6/10 mm) or in the event of ambient air, special door hinges must be used - please contact us in advance if necessary. Door rebate attachment: DIN left; for doors lying in the fold; glass holes 20 mm 2 pieces; glass door dimensions max. mm H x W x D 2000 x 900 x 8; door hinge dimensions mm H x W 95 x 125; weight approx. 700 g.
