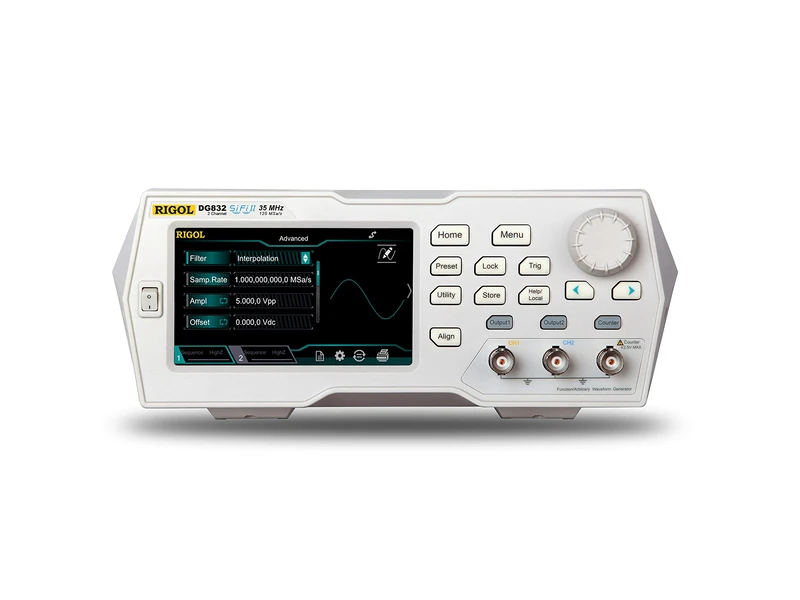

RIGOL DG832 Function/Arbitrary Waveform Generator,35MHz Maximum Output Frequency,125Msa/s,16bits,2 Output Channel,Built-in 160 Kinds of Arbitrary Waveforms

Accessories ListMain unit X1,Power cable X1,BNC-BNC cable X1,Calibration certificate X1,Warranty card X1,Packing list X1.

Important parametersMaximum output frequency 35MHz, sampling rate 125Msa/s, vertical resolution 16bits, 2 output channels, arbitrary wavelength 2M, built-in 8th harmonic generator, built-in frequency meter with 7 digits/s, 240MHz bandwidth with all functions.

Multifunctional IntegrationA feature-rich, comprehensive set of function generators, arbitrary waveform generators, noise generators, pulse generators, code generators, harmonic generators, analogue/digital modulators, frequency counters and more - all for free.

SiFi TechnologyRIGOL's innovative SiFi technology generates arbitrary waveforms point by point, restores the signal without distortion and the sampling rate is precisely adjustable to reduce the signal jitter generated by conventional DDS signal sources, which can be as high as 200ps.

Any waveformUp to 160 built-in arbitrary waveforms, including engineering applications, medical electronics, automotive electronics, mathematical processing and other areas of common signals, the host has a convenient arbitrary waveform editing interface, but also through the host computer software to generate arbitrary waveforms.

Analogue and ModulationMultiple analogue and digital modulation functions: AM, FM, PM, ASK, FSK, PSK and PWM.

Waveform overlayWith the standard waveform overlay function, you can overlay the specified waveform over the basic waveform and output it.

Communication interfaceStandard USB host and device interface; supports USB-GPIB function.
