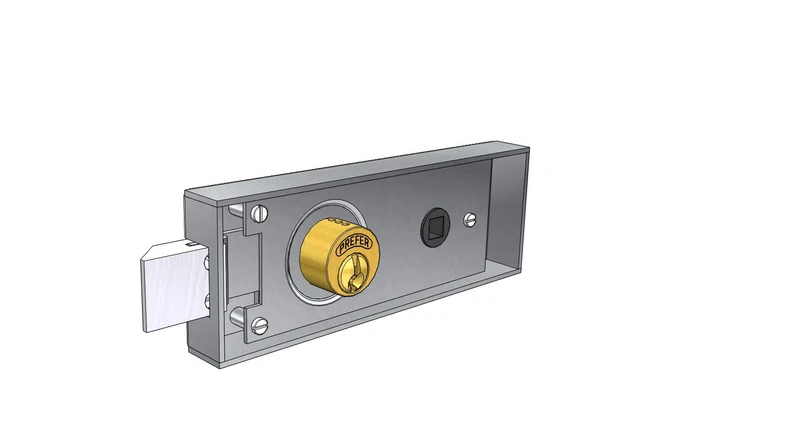

PREFER Door Lock for Transit/Basement Doors in Iron

Locking latch with handle, locking with key both inside and outside

To be applied to iron transit doors, fixing hole spacing 138.5 x 39 mm; wheelbase of the cylinder 50 mm, centre distance of the handle panel 105 mm

8 mm square handle, rectangular latch, brass cylinder with pins diameter 25 mm, protrusion cylinder from wire box mm. 7 US

For doors with hinges on the right (view from outside) with push closure from the outside

2 nickel-plated brass keys supplied
