£483.01

NSK 2219JC3 Double Row Self Aligning Ball Bearing

2219JC3

Self-Aligning Ball Bearings

Price History & Forecast

Last 25 days • 25 data points

Historical

Generating forecast...

Price Distribution

Price distribution over 25 days • 1 price levels

Days at Price

Price Analysis

Most common price: £483 (25 days, 100.0%)

Price range: £483 - £483

Price levels: 1 different prices over 25 days

Description

This type of ball bearing is recommended when alignment of the shaft and housing is difficult and the shaft may flex. The outer ring has a spherical raceway and its centre of curvature coincides with that of the bearing; therefore, the axis of the inner ring, balls and cage can deflect to some extent around the bearing centre. Pressed steel cages are usually used. Since the contact angle is small, the axial load capacity is low. The permissible dynamic misalignment is approximately 0.07 to 0.12 radian 4 to 7 degrees under normal loads. However, depending on the surrounding structure, such an angle may not be possible.

Key Features

The outer ring has a spherical raceway and its centre of curvature coincides with that of the bearing

The axis of the inner ring, balls and cage can deflect to some extent around the bearing centre

Product Specifications

Brand: NSK
Model: 2219JC3
ASIN: B077RLS3S5
Category: Business, Industry & Science > Power Transmission Products > Bearings, Balls & Bushings > Ball Bearings > Self-Aligning Ball Bearings
Domain: Amazon UK
Listed Since: 23 November 2017

Barcode

No barcode data available

NSK 2219JC3 Double Row Self Aligning Ball Bearing

Price History & Forecast

Price Distribution

Price Analysis

Description

Key Features

Product Specifications

Barcode

Similar Products You Might Like

NSK 1308J Double Row Self Aligning Ball Bearing

NSK 2310JC3 Double Row Self Aligning Ball Bearing

NSK 1310KTNC3 Double Row Self Aligning Ball Bearing

NSK 2210J Double Row Self Aligning Ball Bearing

NSK 1220KJ Double Row Self Aligning Ball Bearing

NSK 2207KJC3 Double Row Self Aligning Ball Bearing

NSK 2307J Double Row Self Aligning Ball Bearing

NSK 2308KTNC3 Double Row Self Aligning Ball Bearing

NSK 2304-2RSTN Double Row Self Aligning Ball Bearing

NSK 1208JC3 Double Row Self Aligning Ball Bearing

NSK 7008B Single Row Angular Contact Ball Bearing

NSK 2201MC3 Double Row Self Aligning Ball Bearing

NSK 21315EAKE4C3 Spherical Roller Bearing

NSK 3204JC3 Double Row Angular Contact Bearing, 47mm Ø, 20.6mm Width

NSK 7219BMG Single Row Angular Contact Ball Bearing

NSK 2306JC3 Double Row Self Aligning Ball Bearing

NSK 2213C3 Double Row Self Aligning Ball Bearing

NSK 22315EAE4C3 Spherical Roller Bearing

NSK 23024CDE4 Spherical Roller Bearing

NSK 7230BMG Single Row Angular Contact Ball Bearing

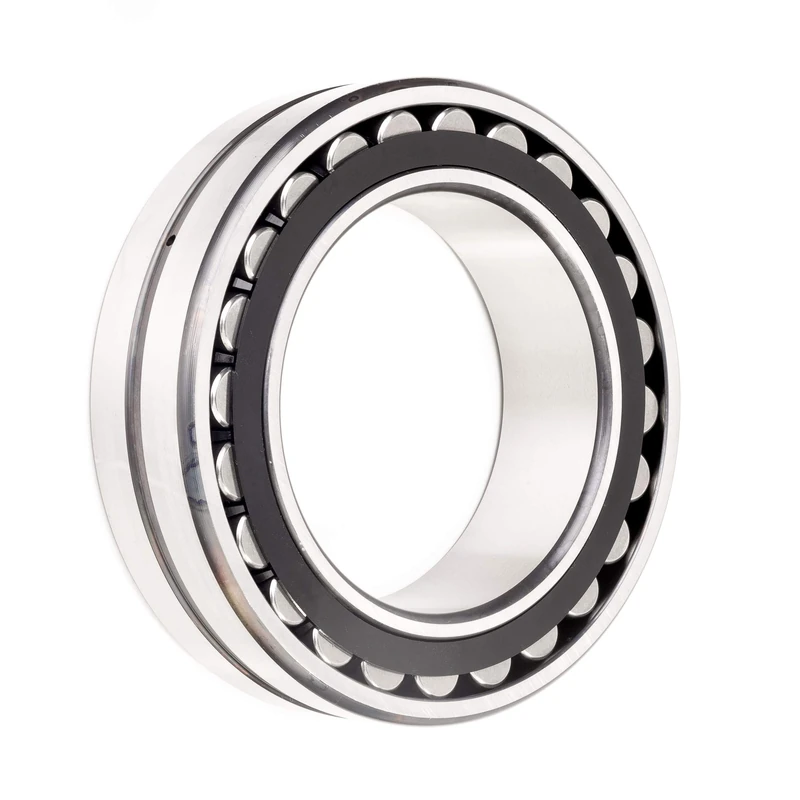

NSK 23120CKE4 Spherical Roller Bearing
