Core Cable Wiring Cable – Single Core Flexible – PVC Cable – H07V-K 2.5 mm² – Colour: Light Blue – Many Lengths Available in 5 Metre Increments, Length: 100 m 2.5 mm² - Image 1

£75.72

EBROM Core Cable Wiring Cable – Single Core Flexible – PVC Cable – H07V-K 2.5 mm² – Colour: Light Blue – Many Lengths Available in 5 Metre Increments, Length: 100 m 2.5 mm²

Name: Core Cable Wiring Cable - Single Core Flexible - PVC Cable - H07V-K 2.5 mm - Colour: Light Blue - Many Lengths Available in 5 Metre Increments, Length: 100 m 2.5 mm
Brand: EBROM
Price: 75.72 GBP
Availability: InStock

Lightblue, AK3-AT1-GL-M-X

Electrical Wire

Price History & Forecast

Last 17 days • 17 data points (No recent data available)

Historical

Generating forecast...

Price Distribution

Price distribution over 17 days • 1 price levels

Days at Price

Price Analysis

Most common price: £76 (17 days, 100.0%)

Price range: £76 - £76

Price levels: 1 different prices over 17 days

Description

Single wire multi-wire, fine-stranded wires of wire class 5 according to VDE 0281, use in dry rooms, in devices, switchgear and distributors, in pipes on and under plaster as well as in closed installation ducts. For protected installation in and on lights. In and on electronic equipment in high power systems for the purpose of measuring, controlling and regulating. Not permitted for direct installation under plaster. Approved for internal wiring of equipment for a mains voltage up to 1000V AC and up to 750V DC to Earth. Temperature range: maximum conductor temperature 70 °C. Technical data: rated voltage Uo/U = 450/750 V. Maximum permissible operating voltage: rotary and AC Uo/U = 495/825 V; DC Uo/U = 743/1238 V; test AC voltage = 2500 V. Installation instructions. When wiring In lights where the connection area of the wires is not protected from UV radiation and heat (caused by the bulbs), a protective hose must be pushed over the exposed wires. Otherwise, depending on the duty cycle a decomposition of the insulation occurs.

Key Features

Flexible wire cable, multi-stranded 1 x 2.5 mm² (flexible), several fine copper cores set into a flexible strand. The H07V-K single core has multiple copper strands in flexible design that allows it to be laid in tight spaces and in tight bends. For comparison, the H07V-U has a rigid strand that retains a firm shape. Both cables are referred to as single cores, but the H07V-K is suitable for applications with tighter spaces and bends.

Full copper 99.9% OFC, according to VDE 0281 - fire behaviour class according to EN 13501-6: Eca - flame retardant according to VDE 0482-332-1-2/IEC 60332-1-2 - CE

Colour: light blue – outer diameter approx. 3.6 mm

Large selection of quantities, can be ordered from 5 metres in 5 metre increments up to 100 metres in one piece. Simply select your desired length in metres with the multiple selection and add the selected length to the shopping cart

Selected and assembled for you by the cable professionals of EBROM

Product Specifications

Brand: EBROM
Model: AK3-AT1-GL-M-X
Colour: Lightblue
Size: 100 M
Format: DIY & Tools
ASIN: B077K3YY49
Category: DIY & Tools > Electrical > Electrical Wire
Domain: Amazon UK
Listed Since: 07 August 2020

Barcode

No barcode data available

EBROM Core Cable Wiring Cable – Single Core Flexible – PVC Cable – H07V-K 2.5 mm² – Colour: Light Blue – Many Lengths Available in 5 Metre Increments, Length: 100 m 2.5 mm²

Price History & Forecast

Price Distribution

Price Analysis

Description

Key Features

Product Specifications

Barcode

Similar Products You Might Like

Wire Cable Wiring Cable – Single Core Flexible – PVC Cable – H07V-K 2.5 mm² – Colour: Black, 5 m/10 m/15 m/20 m/25 m/30 m/35 m/40 m/45 m/50 m/55 m/60 m up to 100 m, freely selectable 2.5 mm²

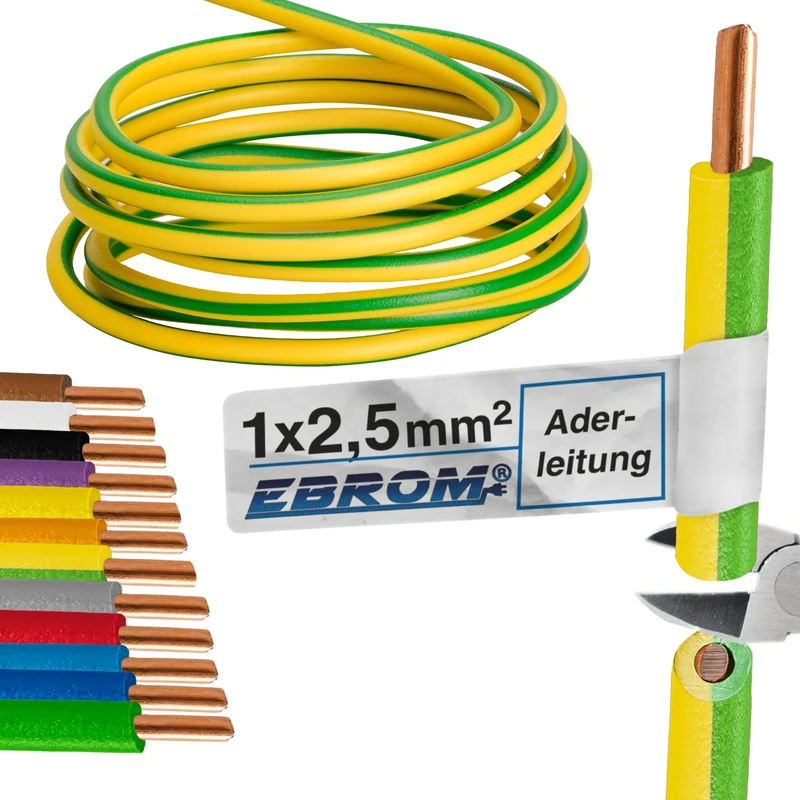

Core cable, single core, rigid, PVC cable, H07V-U 2.5 mm², colour: green, yellow, 10 m/15 m/20 m/25 m/30 m/35 m/40 m/45 m/50 m/55 m/60 m up to 100 m freely selectable

EBROM Core cable, single core rigid, PVC cable, wiring cable, H07V-U 1.5 mm², 1.5 mm², colour: brown, various lengths available, from 10 m to 100 m, your selected length: 100 m

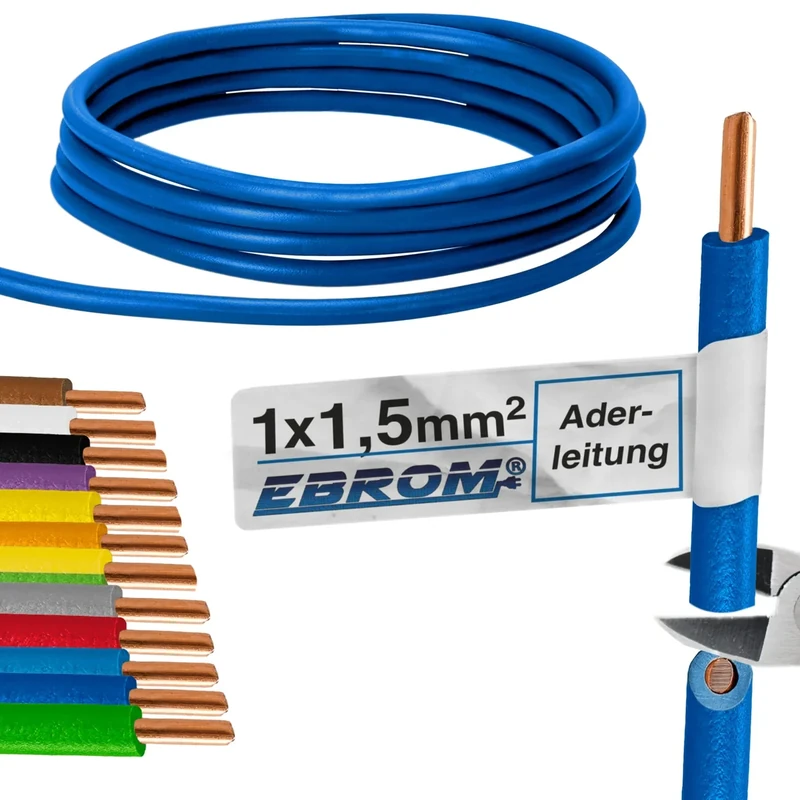

Core cable, single core, rigid, PVC cable, H07V-U 1.5 mm², colour: dark blue, 10 m/15 m/20 m/25 m/30 m/35 m/40 m/45 m/50 m/55 m/60 m up to 100 m freely selectable

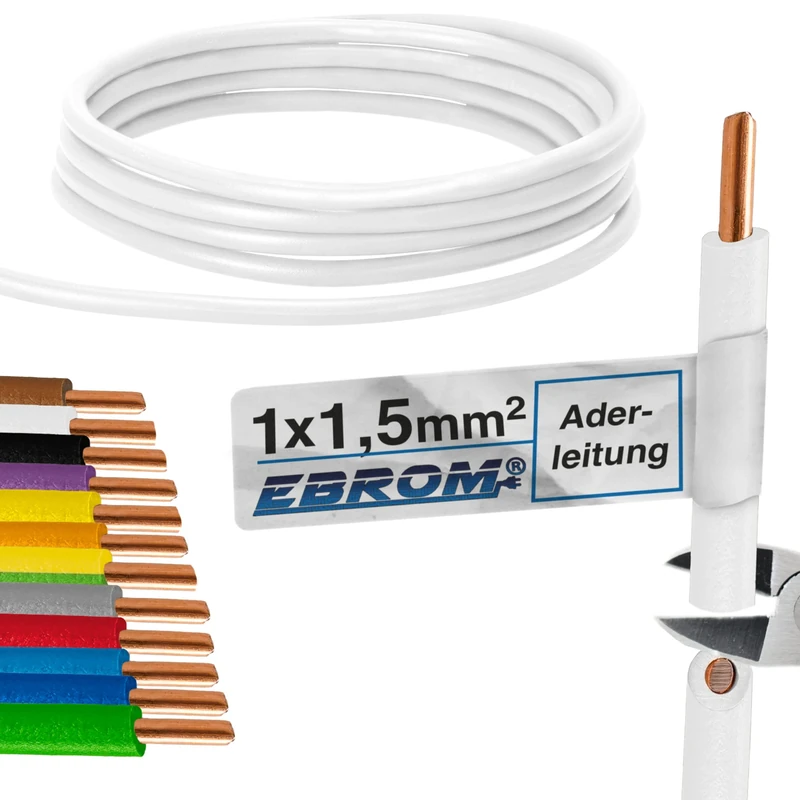

Core cable, single core, rigid, PVC cable, H07V-U 1.5 mm², colour: white, 10 m/15 m/20 m/25 m/30 m/35 m/40 m/45 m/50 m/55 m/60 m up to 100 m freely selectable

Flexible PVC Cable – H07V-K 2.5 mm² – Colour: Red – Various Lengths Available in 5 Metre Steps, Length: 100 m 2.5 mm²

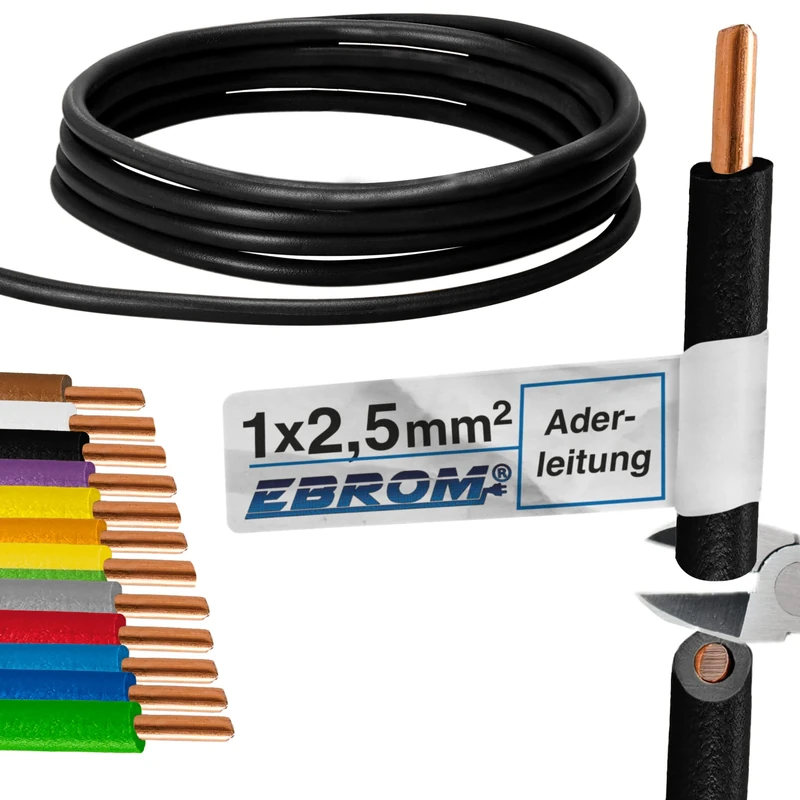

EBROM Core cable, single core rigid, PVC cable, wiring cable, H07V-U 2.5 mm², 2.5 mm², colour: black, various lengths available, from 10 m to 100 m, your selected length: 100 m

Lapp Cable PVC Cable H05V-K 1 x 0.75 mm² 100 m Grey

Lapp Cable H07V-K HAR 1 x 2.5 mm² 100 m Grey - PVC Connection and Control Cable - Flame Retardant - Class 5 / Fine Stranded - Copper Conductor

2/3/4 CORE ELECTRICAL FLEX CABLE WIRE LENGTH TWIN TRIPLE 0.75/1/1.5/2.5mm2 230V (2 Core 0.75mm x 10m)

2/3/4 CORE ELECTRICAL FLEX CABLE WIRE LENGTH TWIN TRIPLE 0.75/1/1.5/2.5mm2 230V (3 Core 1.5mm x 1m)

Primes DIY Single Core Conduit Cable 1.5mm Copper Wire Insulated PVC, Stranded Flexible Coil 6491X Electrical Wire, BASEC Approved – Brown, Blue, Green/Yellow (35 Meter), Home Improvement

Wire4u Automotive Round Twin 2 Core Thin Wall Cable 12V 24V Copper Wire (2.0mm² 25Amps, 20 Metres Coil)

Wire4u Automotive Round Twin 2 Core Thin Wall Cable 12V 24V Copper Wire (2.5mm² 29Amps, 20 Metres Coil)

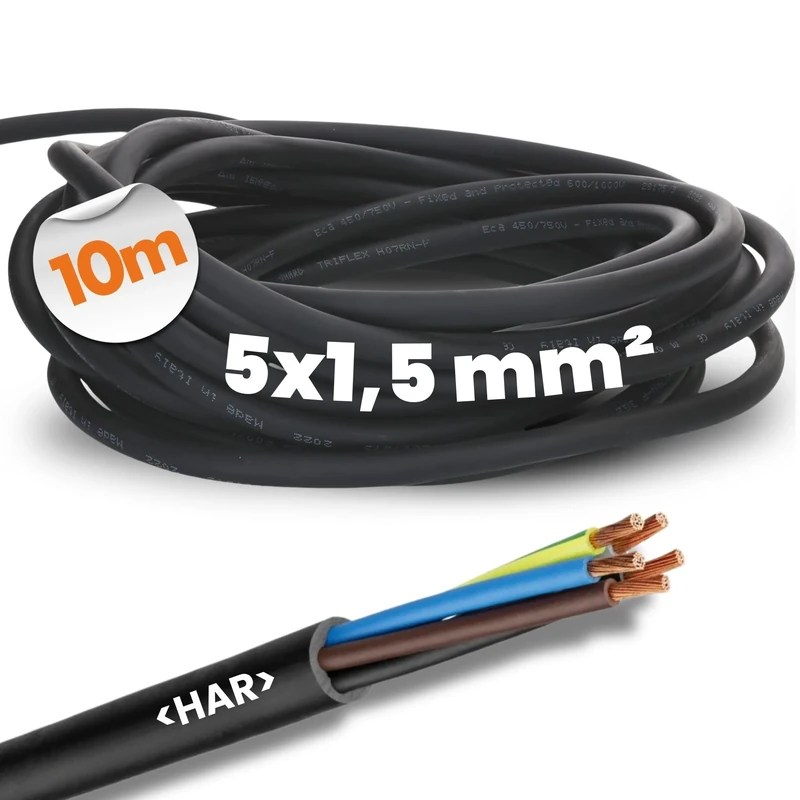

Lapp 10m Rubber Cable H07RN-F 5 x 1.5 mm² with Protective Conductor I UV-Resistant I Cold Resistant I Black

SHPELEC® H05RR-F 3 Core Flexible Rubber Cable - Premium Electrical Wire for Indoor and Outdoor Use - 1.0mm, 1.5mm, 2.5mm 5m, 10m, 20m (1.5mm 3 Core - 100m)

Primes DIY 3 Core Round Black Flex Flexible Cable, stranded electrical copper wire, Insulated Flexible PVC Wire, Stranded Wire High Temperature Resistance, 3182Y BASEC Approved 2.5mm(70 Meter)

25 AMP Rated 2mm² Single Core Stranded Copper Cable 12v 24v Thin Wall Wire (10M 20M 50M 100M) (YELLOW, 10M Coil)

Airtech 5 aAirTech-UK Steel Wire Braided Flexible SY cable 2.5mm 5 Core Connecting Cable for Instrumentation and Control Equipment - 10m Length2.5mm2 Sy Flexible Cable Per Meter 10 Meter

LappKabel Bund Lapp ÖLFLEX SOLAR XLS-R T BK/RD Solar Cable Twin Cable 20 m 2 x 6 mm²

25 AMP Rated 2mm² Single Core Stranded Copper Cable 12v 24v Thin Wall Wire (10M 20M 50M 100M) (ORANGE, 10M Coil)

26 AWG PVC Electrical Wire -SCHDRA 0.13mm²Electrical Wire，Tinned Copper Wires(6 Colors 6 Meters/20ft Each Color)(OD: 1.3 mm),Stranded Wire-for Electronics, DIY Projects, Automotive Wiring

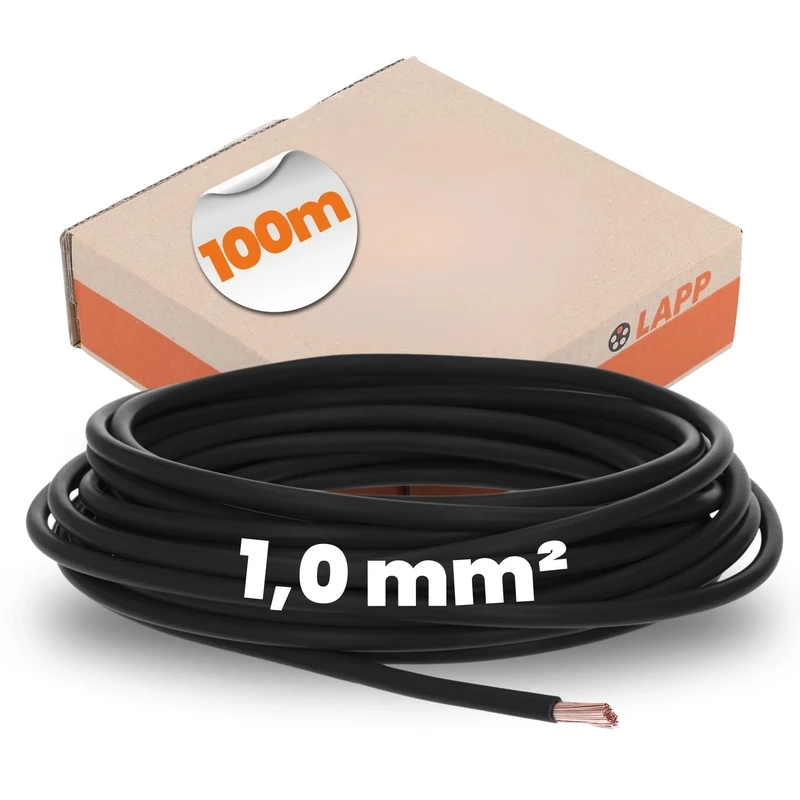

Lapp Cable PVC Cable H05V-K 1 x 1 mm² 100 m Black
