Sommer Cable BNC Video Cable 6G-SDI / 4K SC-Vector 0.8/3.7 - BNC 6G Hicon - Green - 32ft (10m)

Name: Sommer Cable BNC Video Cable 6G-SDI / 4K SC-Vector 0.8/3.7 - BNC 6G Hicon - Green - 32ft (10m)
Brand: Sommer Cable

Green, VT6G-1000-GN-GN

Coaxial Cables

Price History & Forecast

No Price Data Available

Price history will appear here once data is collected from Amazon.

Price Distribution

No price data available for histogram

Description

As swift as an arrow... is the data transmission of the SC-VECTOR (RGB) with its 1.5 Gbit/s rate which also guarantees a low return loss. Of course, the SC-VECTOR can also serve as a high-quality G-SDI video line for studio or OB van applications. With its dual shielding and outstanding attenuation values it offers numerous benefits compared to simple video cables. In comparison to a 0.6/3.7 / AWG23 video cable it allows up to 30 % longer transmission distances. Construction: ..x02YS(ST)CH0.8/3.7 HD-SDI Jacket, diameter: PVC: 1 x coax: 0.236“ Inner conductors: Copper-solid wire . AWG20 (0.031“) Conductor insulation: Gas injected PE 0.146“ Shielding: AL/PT-foil + Copper braiding tin-plated 85% Shielding factor: 100% Surge impedance (at 200 MHz): 75 Ω Capac. cond./shield. per ft.: 16.1 pF Cond. resistance per 1000 ft.: <11.3 Ω Screening attenuation: > 95 dB Shield. resistance per 1000 ft.: 6.1 Ω Max. delay (skew): 0.012 ns @ 100 MHz Velocity factor: 0.82 Attenuation per 100 ft. (20°C / 68°F): 200 MHz: 3.4 dB 470 MHz: 5.2 dB 862 MHz: 7.3 dB 1000 MHz: 8.0 dB 1485 MHz: 10.0 dB 1750 MHz: 10.9 dB 2150 MHz: 12.2 dB 3000 MHz: 14.1 dB S.R.L Frequency (Return loss): 30+300 MHz: >30 dB 300+600 MHz: >25 dB 600+900 MHz: >20 dB

Key Features

Dependable and very high-quality image transmission - Very good attenuation and transmission values even with excessive lengths

Robust and durable outer sleeve

Precise wave impedance of 75 Ω - Digital SDI / HD-SDI / 3G-SDI / 6G-SDI / 12G-SDI long distance transmission

The SC-VECTOR Cable is used in OB vans, digital TV, at sporting events, live shows or other large events.

Video transmission in the professional broadcasting/studio sector. Fixed installation (theaters, sporting arenas, media and congress centers…) Cabling of viewing and surveillance monitors

Product Specifications

Brand: Sommer Cable
Model: VT6G-1000-GN-GN
Colour: Green
Size: 32ft (10m)
Format: Electronics
ASIN: B077BMXMVW
Category: Electronics & Photo > Home Cinema, TV & Video > Accessories > Cables > Coaxial Cables
Domain: Amazon UK
Listed Since: 16 November 2017

Barcode

No barcode data available

Sommer Cable BNC Video Cable 6G-SDI / 4K SC-Vector 0.8/3.7 - BNC 6G Hicon - Green - 32ft (10m)

Price History & Forecast

No Price Data Available

Price Distribution

Description

Key Features

Product Specifications

Barcode

Similar Products You Might Like

Sommer Cable - BNC Coaxial Video Cable 75 Ω - HD/3G/6G/12G-SDI / 4K-UHD SC-Vector 0.8/3.7 - BNC/BNC NBNC75BLP9X Neutrik - Black 65ft (20m) - Made in Germany

Sommer Cable - BNC Coaxial Video Cable 75 Ω - HD/3G/6G/12G-SDI / 4K-UHD SC-Vector 0.8/3.7 - BNC/BNC NBNC75BLP9X Neutrik - Black 49ft (15m) - Made in Germany

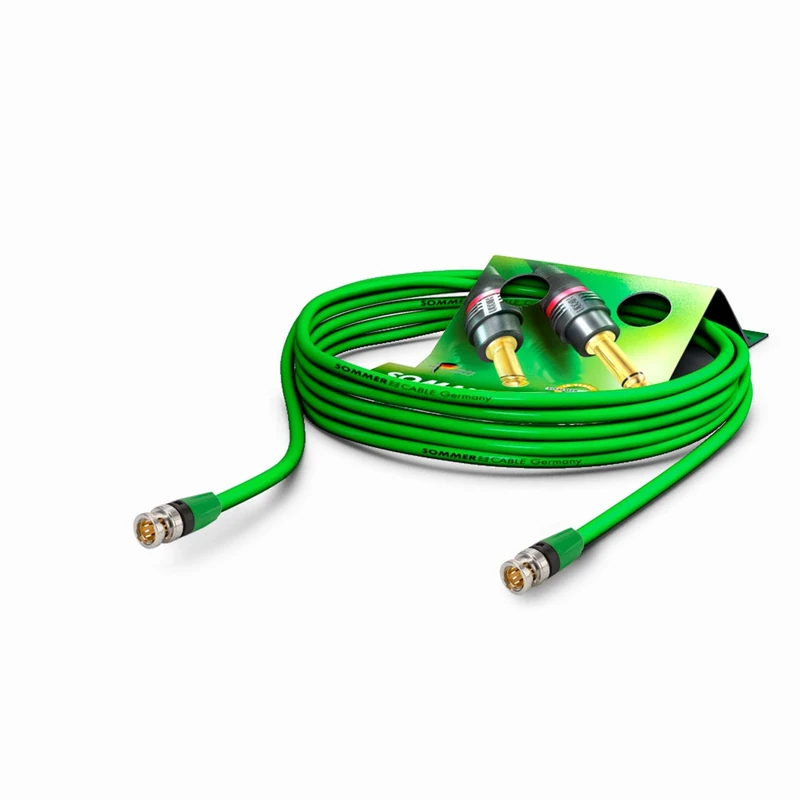

Sommer Cable Video Patch Cable 6G-SDI / 4K SC-Vector 0.8 / 3.7, BNC/BNC NBNC75BLP9X Neutrik Green

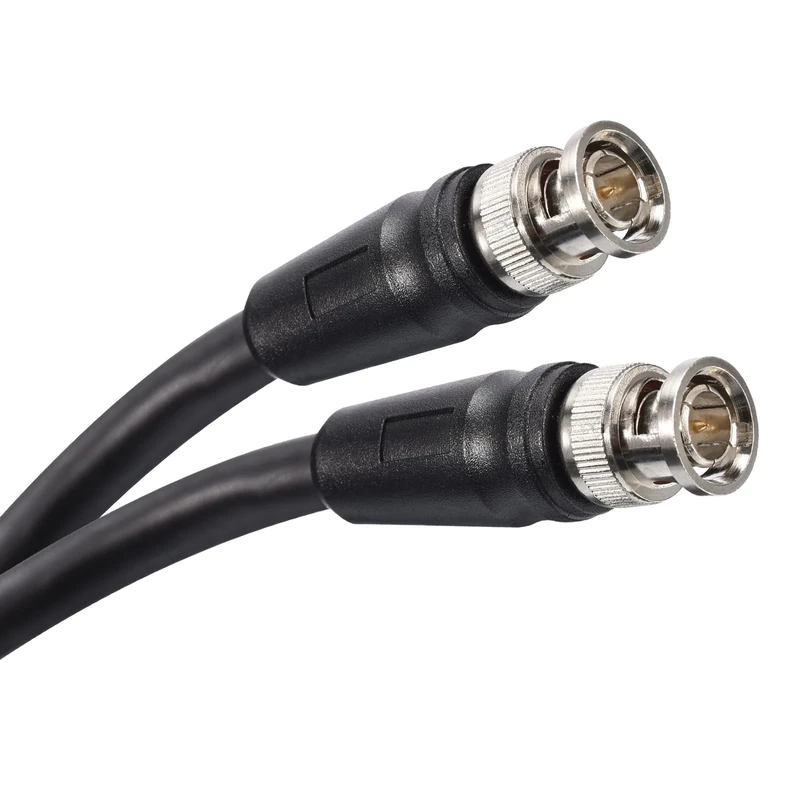

sourcing map 98FT 3G-SDI Cable, HD-SDI Video Cable 75 Ohm RG6 BNC Cable 18AWG Cable Wire Supports HD-SDI/3G-SDI for Camera Surveillance CCTV System

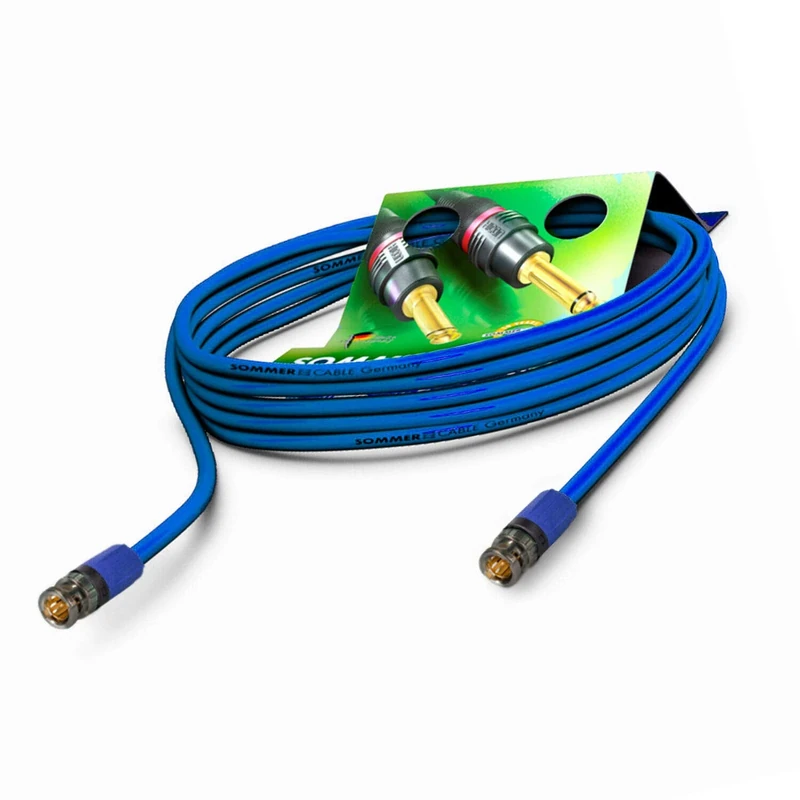

Sommer Cable 25 m 6G 3G SDI Video Patch Cable 4K UHD HD-SDI (HDTV) SC-Vector 0.8/3.7 1 x 0.80 mm² Blue - BNC Plug NEUTRIK - VTGX-2500-BL-BL - 82.00 ft

sourcing map 50FT 12G-SDI Cable, 4K 60Hz HD-SDI Video Cable 75 Ohm RG6 BNC Cable 16AWG Cable Wire Supports HD-SDI/3G/6G-SDI for Camera Surveillance CCTV System

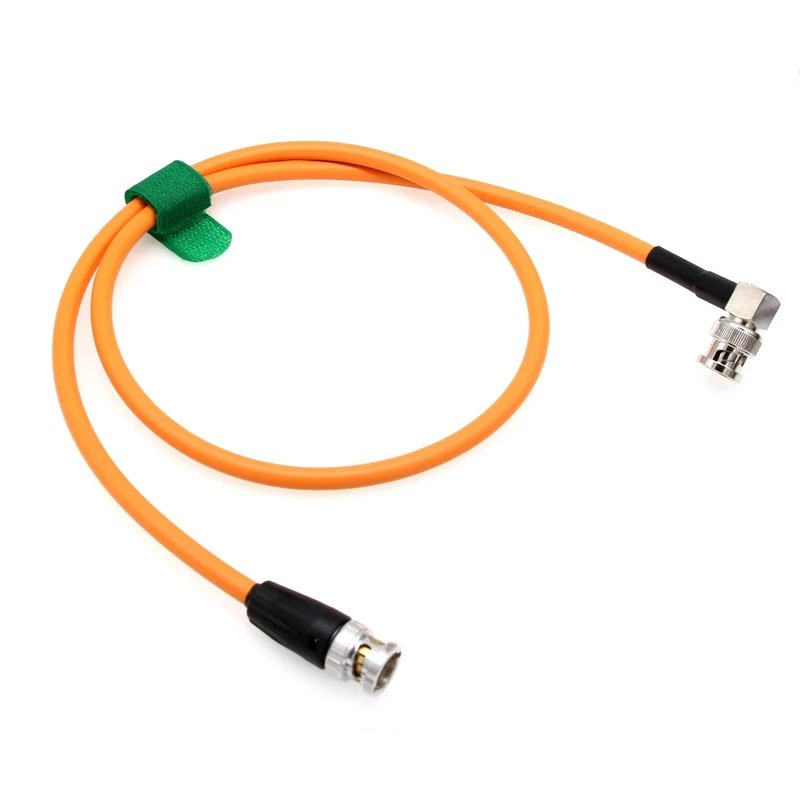

HangTon 12G 4K 30p SDI Coaxial Video Cable BNC to BNC Canare LV-61S 75 ohm for ARRI RED Komodo Blackmagic Sony FS7 FX9 FX6 Camera SmallHD Atomos Monitor 10m

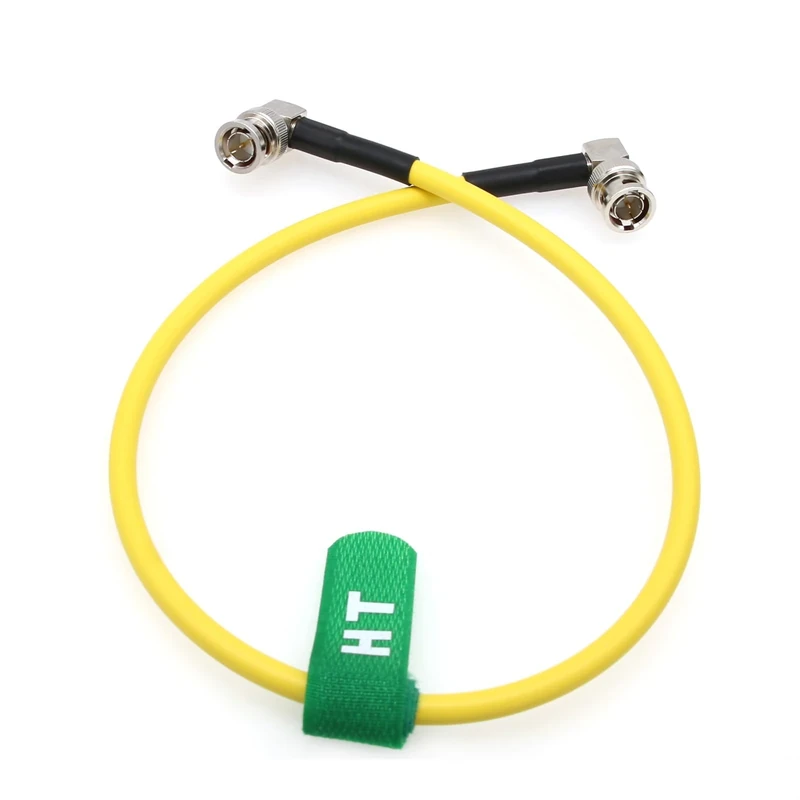

HangTon 12G 4K 30p SDI Coaxial Video Cable BNC to BNC Canare LV-61S 75 ohm for ARRI Alexa 35 RED Komodo Blackmagic Sony FS7 FX9 FX6 Camera SmallHD Atomos Monitor 10m Yellow

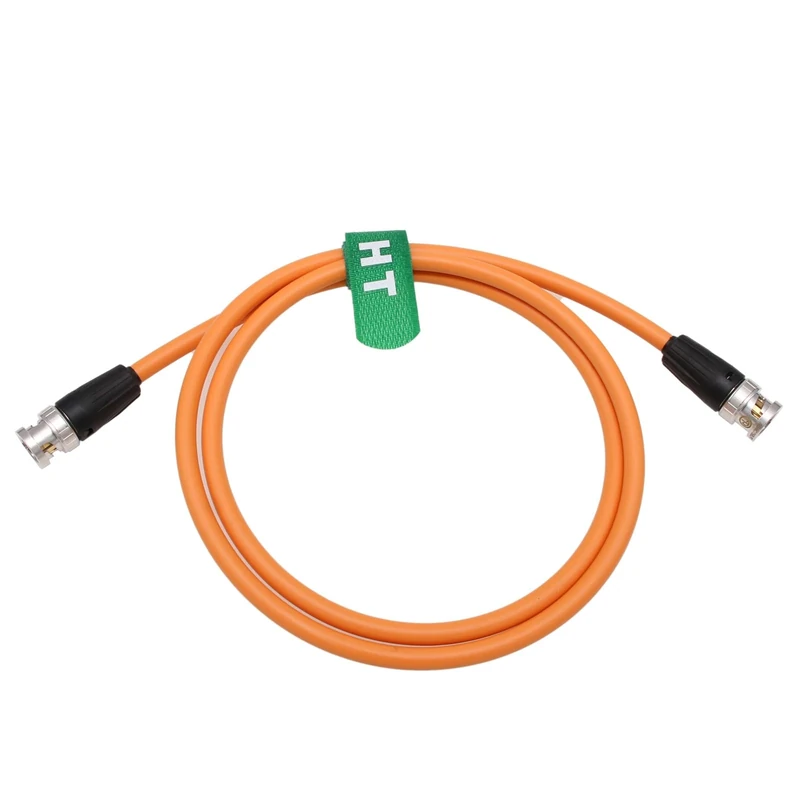

HangTon 12G 4K 30p SDI Coaxial Video Cable BNC to BNC for ARRI RED Komodo Blackmagic Canon C300 mk3 Sony FS7 FX9 FX6 Camera SmallHD Atomos Monitor 10m

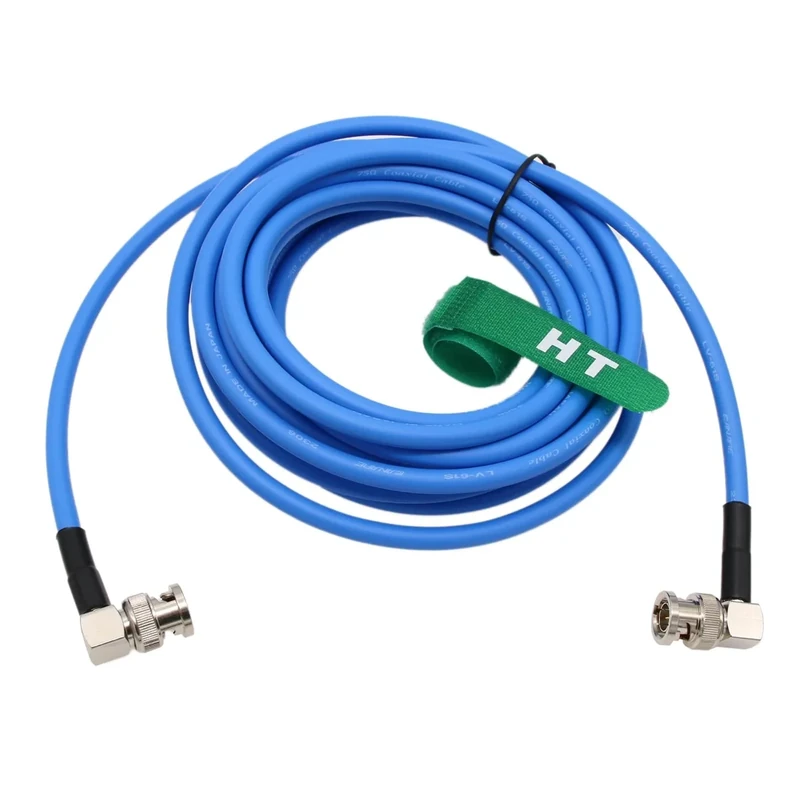

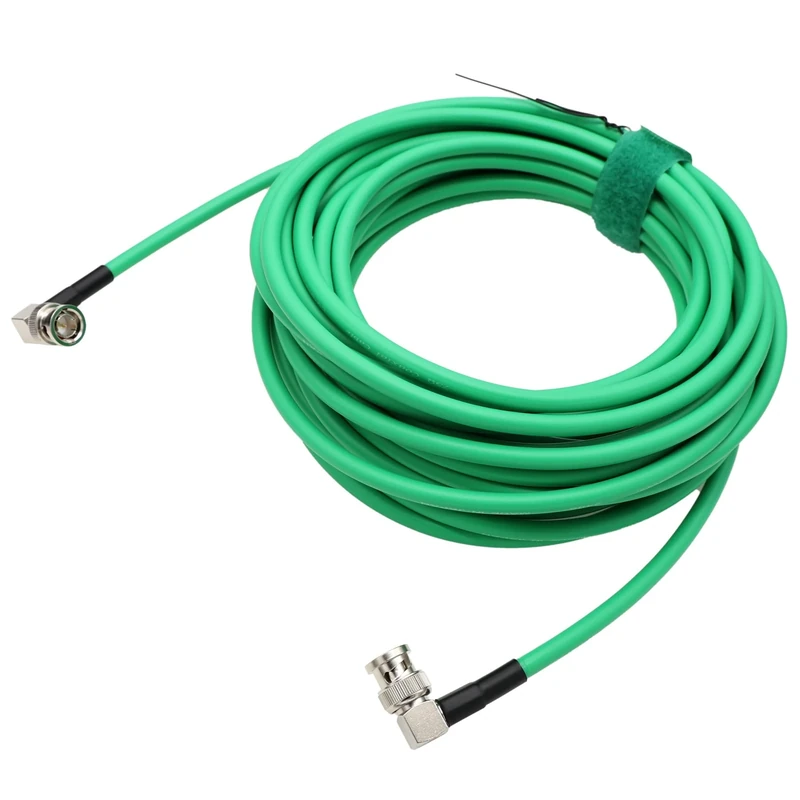

HangTon 12G 4K 60P SDI Right Angle BNC 75Ω Coaxial Video Cable Canare LV-61S for Blackmagic Decimator Komodo Alexa Atomos Broadcast Camera Monitor 10M

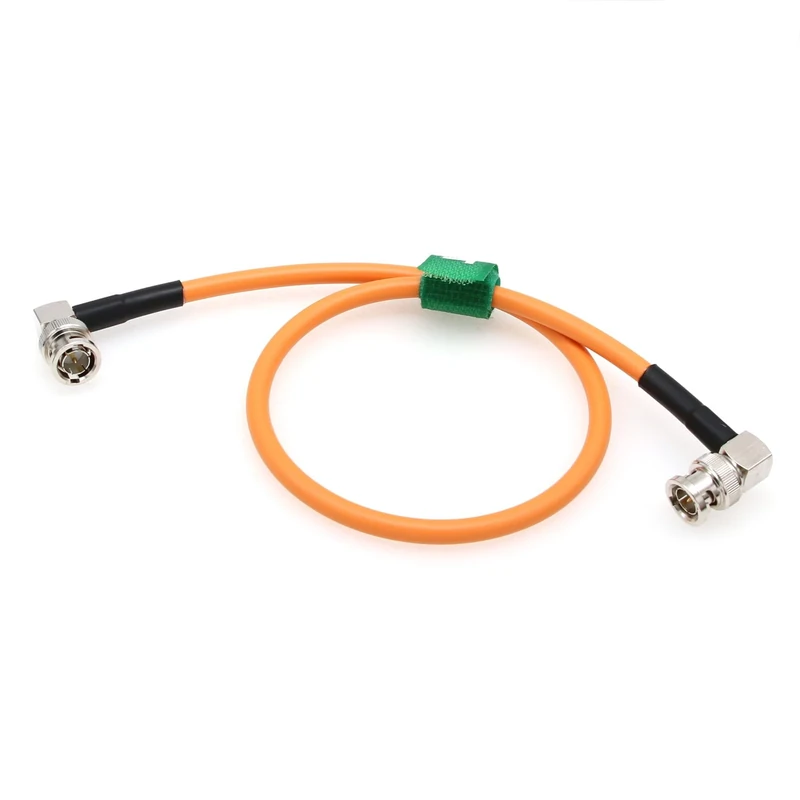

HangTon 12G 4K 30p SDI Coaxial Video Cable BNC Right Angle for ARRI RED Komodo Blackmagic Sony FS7 FX9 FX6 Camera SmallHD Atomos Monitor 10m

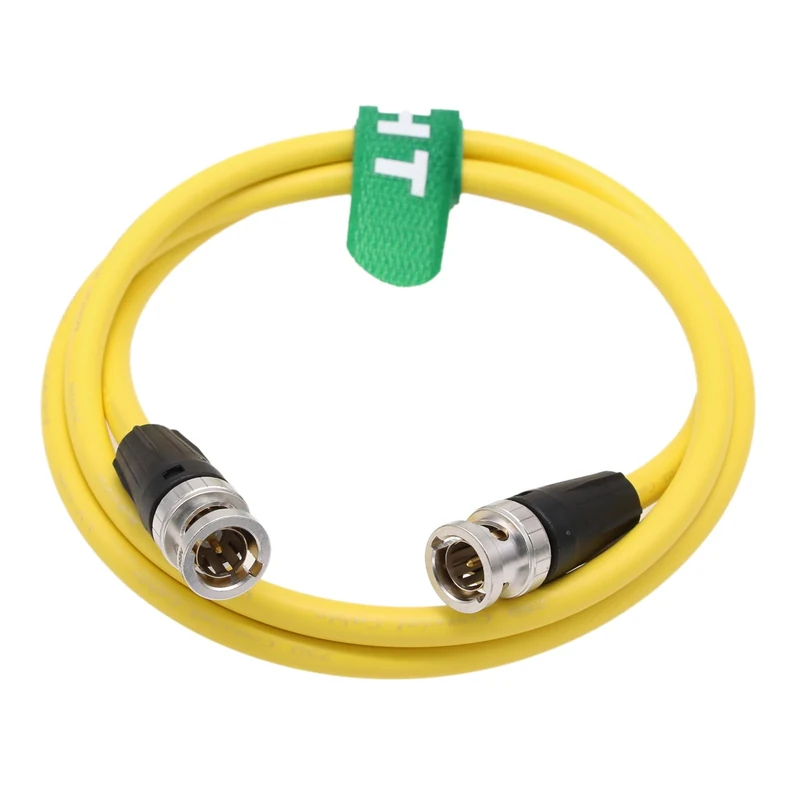

HangTon 12G 4K SDI Video Cable BNC to BNC for ARRI RED Blackmagic Sony Canon Camera Teradek Vaxis Hollyland SmallHD Atomos Monitor Shielded 10m Yellow

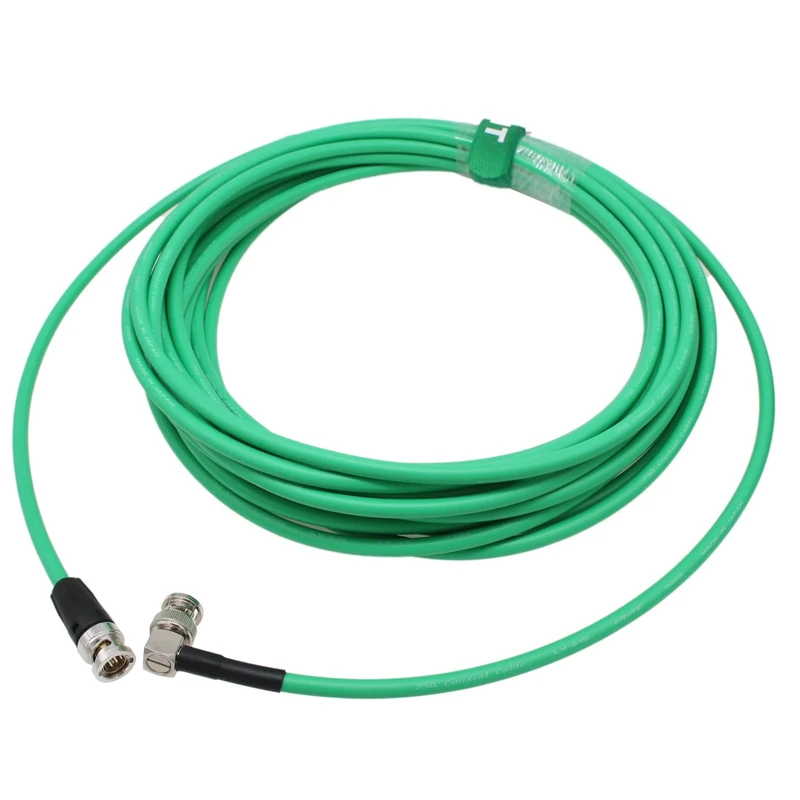

HangTon 12G 4K 60P SDI BNC 75Ω Coaxial Video Cable Canare LV-61S for Blackmagic Decimator Komodo Alexa Atomos Broadcast Camera Monitor 10M

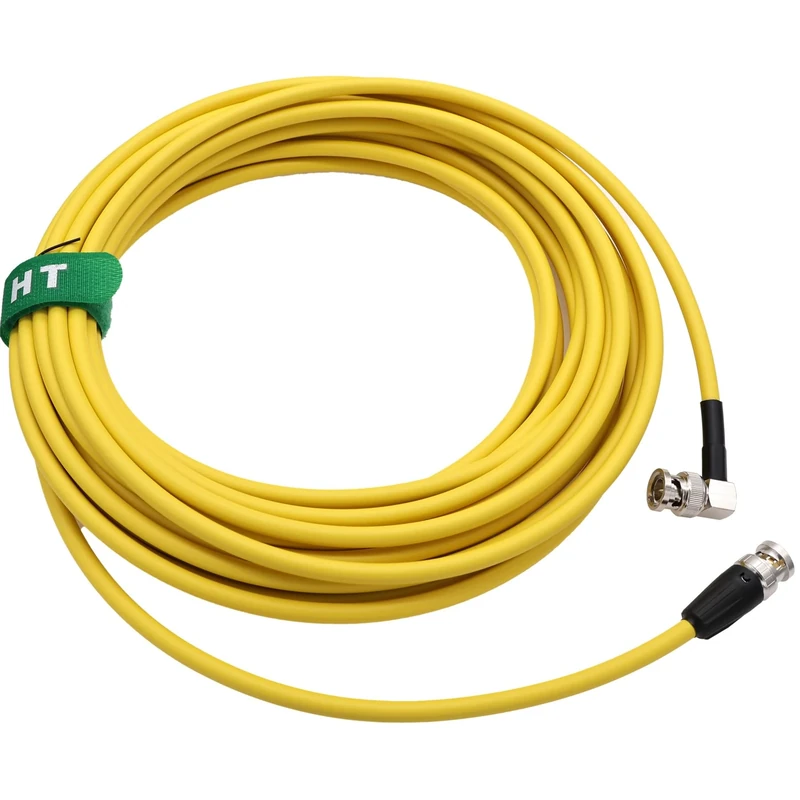

HangTon 12G 4K SDI Coaxial Video Cable BNC to BNC Canare for ARRI Alexa 35 RED Komodo Blackmagic Sony FS7 FX9 FX6 Camera SmallHD Atomos Monitor Shielded 10m Yellow

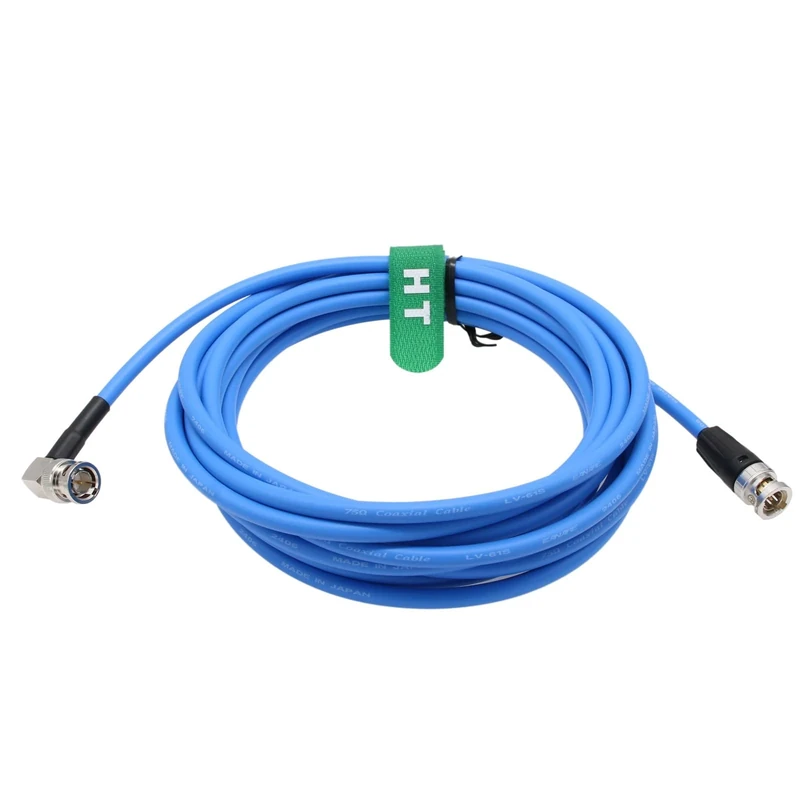

HangTon 12G 4K 60P SDI BNC 75Ω Coaxial Video Cable Canare LV-61S for Blackmagic Decimator Komodo Alexa Atomos Broadcast Camera Monitor (10m, Blue) Right Angle to Straight

HangTon 12G 4K 60P SDI BNC 75Ω Coaxial Video Cable Canare LV-61S for Blackmagic Decimator Komodo Alexa Atomos Broadcast Camera Monitor (10m, Blue)

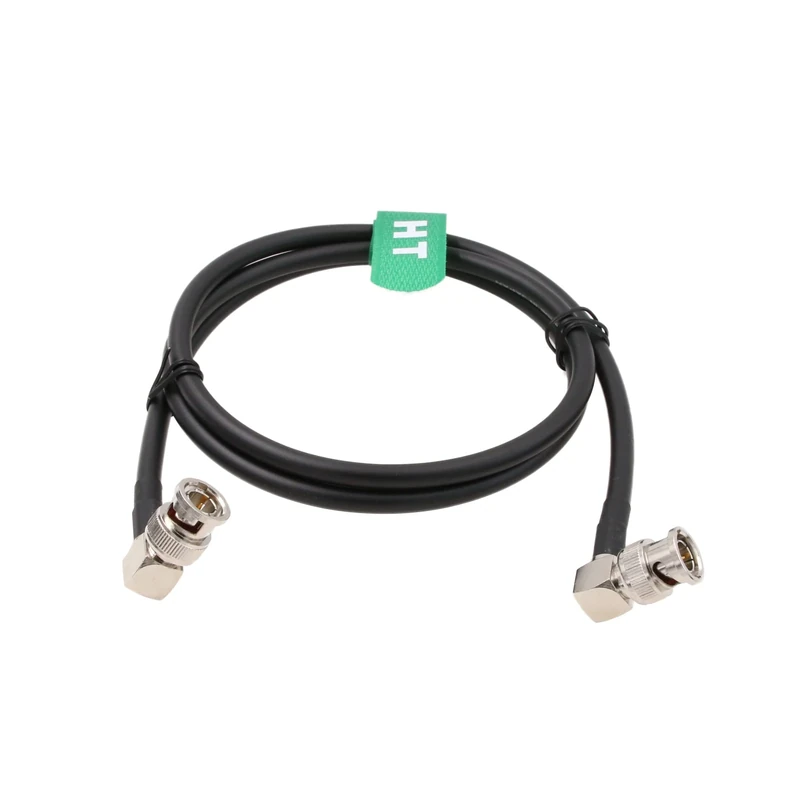

HangTon 12G 4K SDI Coaxial Video Cable BNC to BNC Canare LV-61S 75 ohm for ARRI RED Komodo Blackmagic Sony FS7 FX9 FX6 Camera SmallHD Atomos Monitor Shielded 10m Black

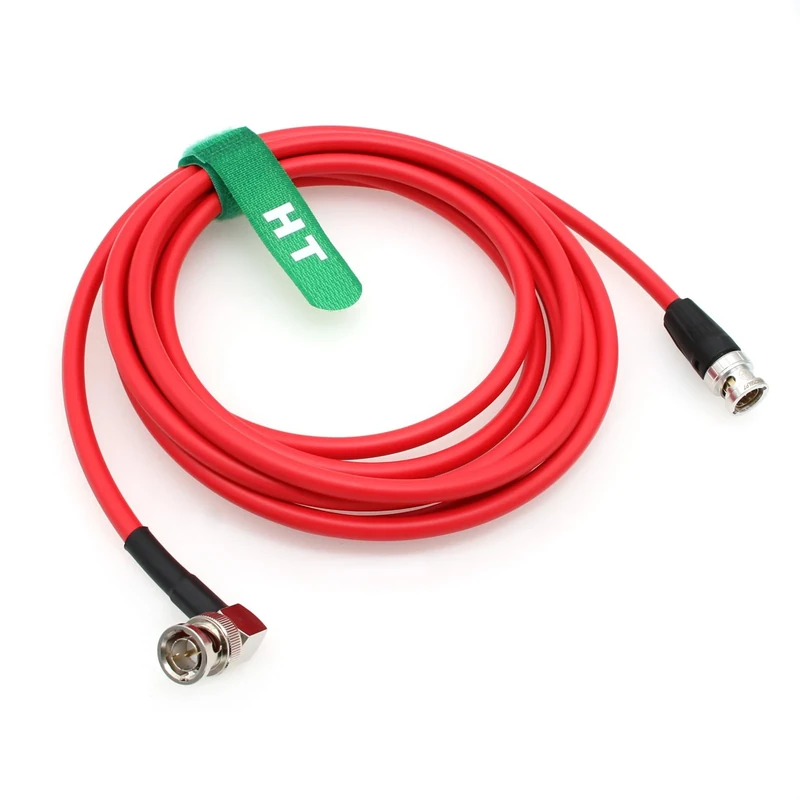

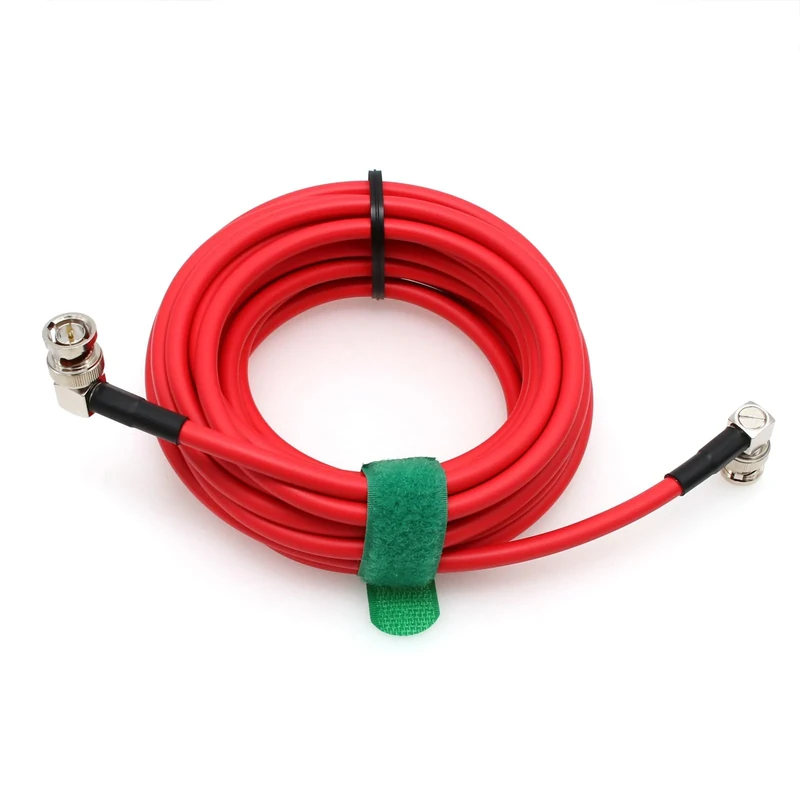

HangTon 12G 4K Raw SDI Coaxial Video Cable BNC to BNC Canare LV-61S 75 ohm for Camera Monitor Flexible Shielded 10M Red Right Angle to Straight

HangTon 12G 4K Raw SDI Coaxial Video Cable BNC to BNC Canare LV-61S 75 ohm for Camera Monitor Flexible Shielded 10M Red

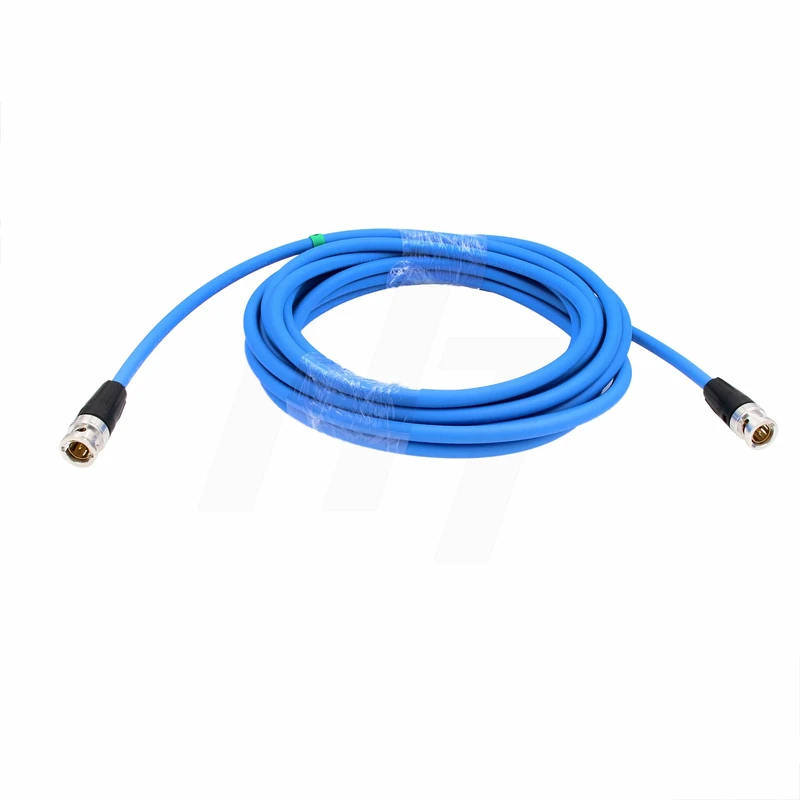

HangTon 12G 4K SDI Video Coaxial Cable BNC to BNC for ARRI Alexa RED Epic Scarlet Camera SmallHD Monitor Canare LV-61S 75 ohm, light flexible video cable 10m Blue

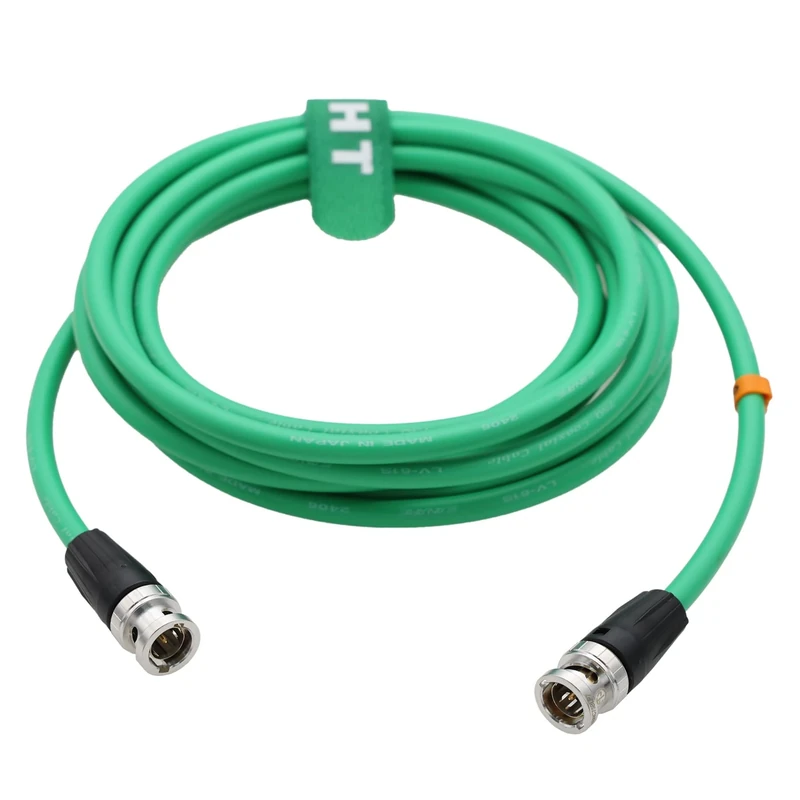

Hangton 12G 4K Raw SDI Coaxial Video Cable BNC to BNC Canare LV-61S 75 ohm for Camera Monitor Flexible Shielded 10M Green

Hangton 12G 4K Raw SDI Coaxial Video Cable BNC to BNC Canare LV-61S 75 ohm for Camera Monitor Flexible Shielded 10M Black

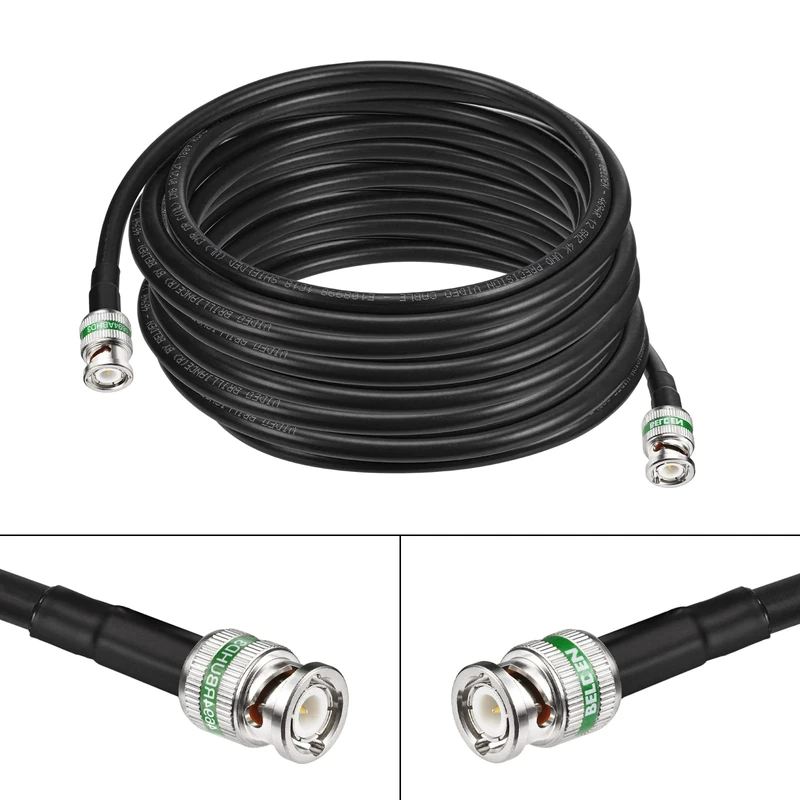

Superbat 12G SDI Cable 7.6m BNC Belden 4694R 75ohm Male to Male 4K UHD SDI Video Cable Supports 6G-SDI/12G-SDI/4K/8K for Security Camera Converter Blackmagic Design Video Hub etc.
