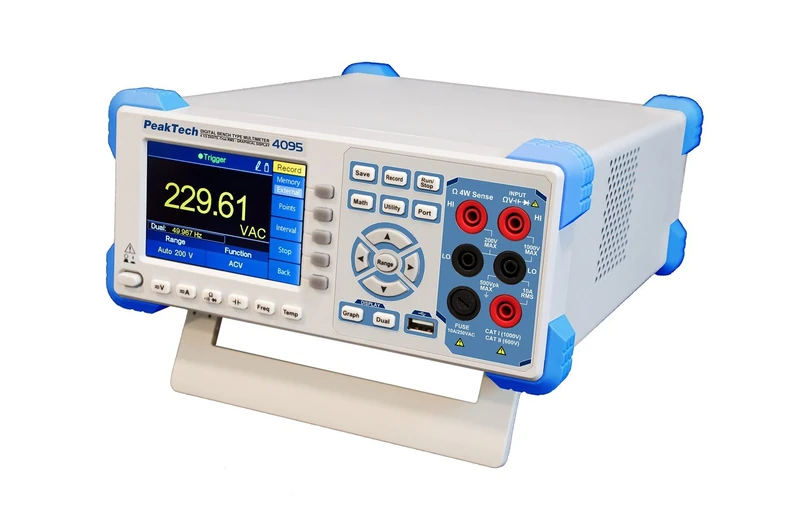

PeakTech Peak Tech P 4095 True RMS 60000 Points Tabletop Multimeter - Digital Multimeter Graphic with Color TFT Display, 100 Million Dots, 150 S / and USB / LAN / RS-232 Data Logger

Graphical desktop multimeter ~ 60,000 counts ~ with TFT, data logger, RS-232, LAN, USB Newly developed precision desktop multimeter with TFT graphic display for high-resolution display of measured values, progression curves, function graphics and much more. up to 150 measurements / second. This model is equipped according to the latest technical standards and has a large number of special functions, such as the dual measurement of two different measurement functions, an internal or external data logger, histogram, dB, pass / fail, thermal resistor or thermocouple measurements , Progression curves, function graphics, averages or bar graphs. The versatile functions are completed by the true effective value (TrueRMS) measurements up to 100kHz. For control via software or the SCPI protocol, the model has USB, RS-232 or a LAN interface for network integration. 4 1/2 digit (60000) 4 "TFT graphic display (480x320 pixels) Up to 150 measured values / SecondDatalogger up to 1 million points (internal) or 100 million points (external) / 5ms interval real effective value measurement (True RMS) up to 100 kHz - depending on the measurement function, histogram, bar meter, trend display, pass / fail and many other additional functions, automatic and manual range selection, AVG, MIN / MAX and relative value measurement diode test / continuity test and 2- or 3-wire resistance / thermocouple measurement temperature measurement via: type B / E / J / K / N / R / S / T or PT100 / PT385 data logger function with internal Memory (8MB) or on an external USB stick RS-232, LAN network connection and USB interfaces Control and data retrieval via SCPI protocol possible Safety: EN 61010-1; CAT I 1000V / CAT II 600 V Accessories: power cable, interface cable, CD-ROM, test equipment services, temperature sensors, operating instructions DCV: 600mV / 6/60/600/1000 V; ± 0.02% + 0.01ACV: 600 mV / 6/60/600/750 V; ± 0.2% + 0.06ACV- TRMS Frequency: 20 Hz - 100 kHzDCA: 600μA / 6/60/600 mA / 6/10 A; ± 0.06% + 0.02ACA: 60 / 600mA / 6/10 A; ± 0.5% + 0.10.ACA- TRMS Frequency: 20 Hz - 10 kHzOhm: 600 Ω / 6/60/600 kΩ / 6/60/100 MΩ; ± 0.03% + 0.01 Frequency: 20 Hz… 1 MHz ± 0.01% + 0.003 Capacitance: 2/20/200 nF / 2/200 / 10000 μF; ± 1% + 0.5 Temperature: -200 ° C… + 660 ° C (RTD); + 0.08% + 0.002 / -200 ° C… + 1372 ° C (type K); ± 0.5 ° C Operating voltage: 110 V / 240 V; 50/60 Hz switchable Dimensions (WxHxD): 235 x 110 x 295 mm Weight: 3 kg
