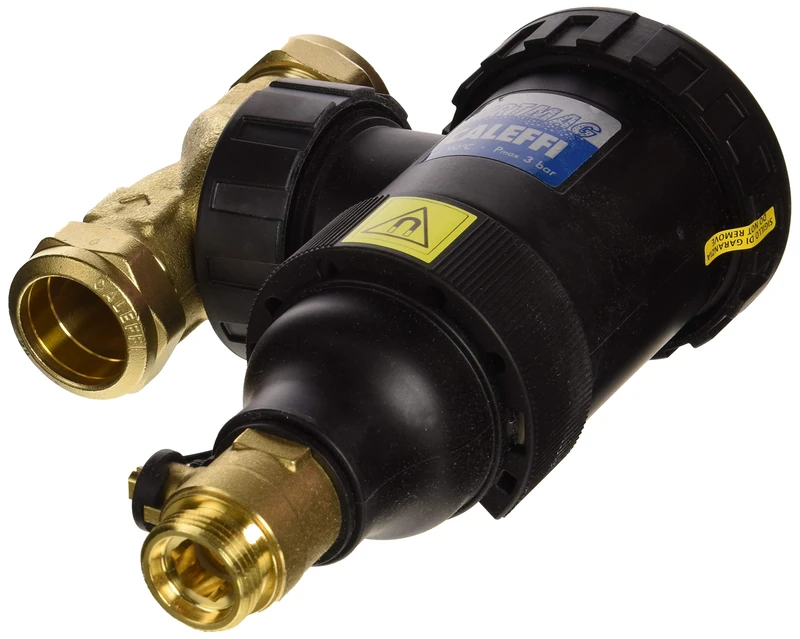

Caleffi Dirtmag Magnetic Mud Separator 28 mm

Sand, mud and ferrous residues collect in heating or cooling circuits and contaminate them. Thanks to the mud separator, these impurities can be separated with minimal pressure loss in closed circuits. Thanks to the high capacity of the magnetite separator, no frequent cleaning is necessary. The desludge is quick and easy by removing the magnetic ring and the included key. The efficient cleaning of the decanting chamber can also be emptied when running systems. The mud separator is versatile and can be installed in vertical as well as horizontal pipes taking into account the flow direction. Product details: Technopolymer mud separator with magnet For water and glycol solutions. Housing made of technical plastic. Connection flange rotatable diameter 28 mm with compression fittings for copper pipes. Can be converted for horizontal and vertical piping. Brass drain tap with hose connection. Dimensions: DN25 Max. Operating pressure: 3 bar. Max. Glycol content: 30% Operating temperature: 0 - 90 °C. Weight: 1.5 kg Box contents: mud separator 28 mm magnet Dirtmag magnetic filter rotatable
