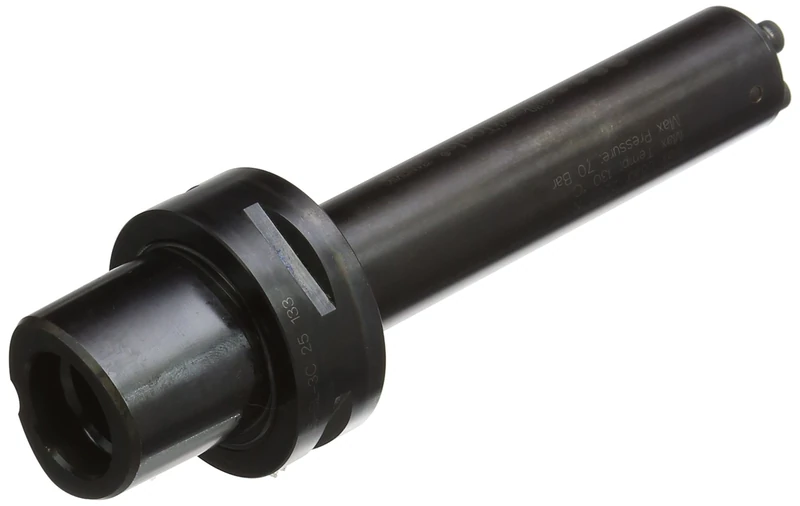

Sandvik Coromant C5-SL-3C25133 Capto to CoroTurn SL Dampened Adaptor

Part of the CoroTurn SL product family. CoroTurn SL is a universal modular system of adaptors with exchangeable cutting heads where you can build customized tools for a variety of machining applications. PRODUCT SPECIFICATION: ADINTMS, Adaptive Interface Machine Direction: Coromant Capto (bolt and segment clamping) -size C5 ; ADINTWS, Adaptive Interface Workpiece Direction: SL (screw mounted) -straight -size 25 ; BD1, Body Diameter: 25 mm ; BD1, Body Diameter: 0.984252 inch ; BMC, Body Material Code: Steel ; CNSC, Coolant Entry Style Code: 3: axial concentric and radial entry ; CP, Coolant Pressure: 70 bar ; CP, Coolant Pressure: 1015.26 lbf/in2 ; CXSC, Coolant Exit Style Code: 1: axial concentric exit ; DCON_WS, Connection Diameter: 25 mm ; DCON_WS, Connection Diameter: 0.984252 inch ; DPC, Damping Property: 1 ; HAND1, Hand: N ; HF, Functional Height: 0 mm ; HF, Functional Height: 0 inch ; LB1, Body Length: 106.6 mm ; LB1, Body Length: 4.19685 inch ; LF, Functional Length: 133 mm ; LF, Functional Length: 5.23622 inch ; OHN, Minimum Overhang: 133 mm ; OHN, Minimum Overhang: 5.23622 inch ; OHX, Maximum Overhang: 133 mm ; OHX, Maximum Overhang: 5.23622 inch ; WF, Functional Width: 0 mm ; WF, Functional Width: 0 inch ; WT, Weight Of Item: 1.045 kg ; WT, Weight Of Item: 2.299 lbs ; Box Contains C5-SL-3C 25 133 + incl. in box: 3671 010-113, O-ring, (pcs. = 1, incl.); 174.1-864, Key, (pcs. = 1, incl.); 3212 010-258, Screw, (pcs. = 3, incl.);
