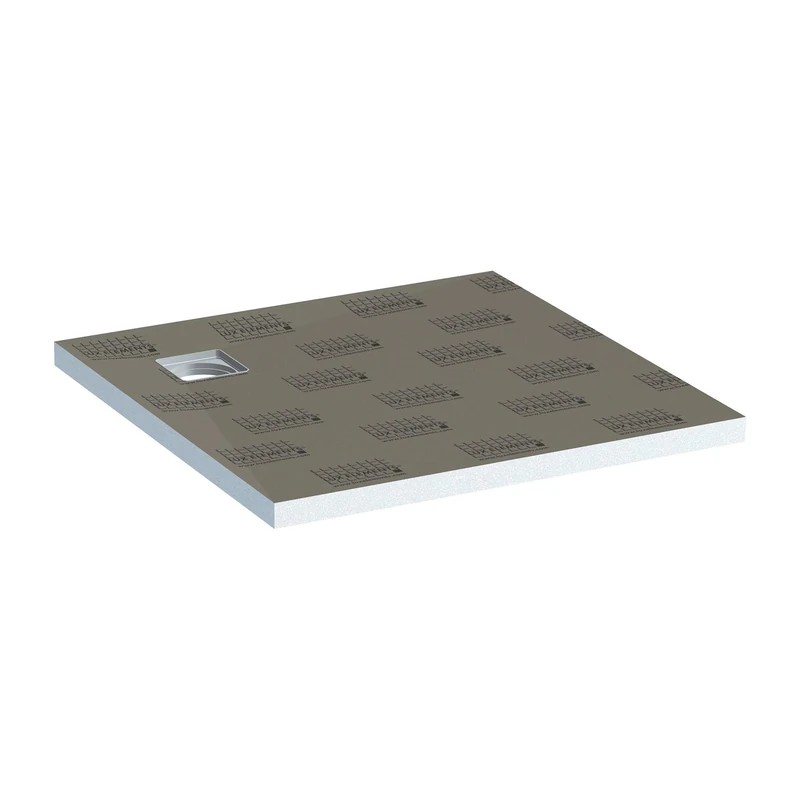

LUX ELEMENTS TUB-MQ 900 LTUBE10101 Sealed Shower Floor, Ready to Tile, Grey, 90 x 90 cm

Sealed shower base - ready to tile. Factory sealed Lux Elements hard foam shower floor element made of blue-coloured, expanded polystyrene with special mortar coating on both sides and fibreglass fabric for reinforcement including factory gradient ready for tiling. Horizontal and vertical drainage possible thanks to the combination with all Lux Elements floor drain pots for point drainage. Built-in and sealed floor drain mounting frame (13.5 x 13.5 cm) and secure click system for attaching the drain pot. For barrier-free building. Can be combined with Lux Elements base element 90 x 90 cm for height adjustment. For minor to higher stress (for example, wheelchair use up to 200 kg), mosaic glued at the front > = 20 x 20 x 4 mm can be used as a covering together with bonding and grouting with reaction resin. With a tile size of >= 50 x 50 mm, it can also be glued with tile adhesives of the quality rating C2 and grout with cementary grout material. Pressure resistance: 0.1 N/mm². Dimensions: 90 x 90 x 3/4.5 cm With inlet openings for the inlet of seepage water (second drainage level). Waterproof and mildew resistant Tested quality - certified according to DIN EN ISO 9001. Environmentally friendly foam production without CO2 and CFCs, HBCD free. Hard foam made from expanded polystyrene (EPS), 100% recyclable. Standard substrate without further sealing according to DIN 18534 – Further information on waterproofing can be found in the booklet "Sealing in wet rooms". Further information on the areas of application and assembly can be found in the brochure "Professional bathroom extension" and the processing instructions (English language not guaranteed).
