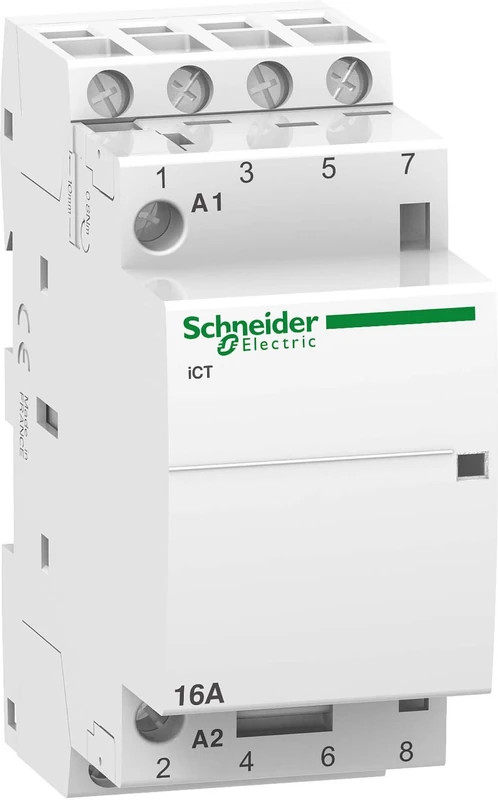

Schneider Electric Installation Relais 1S + A9 °C22115 1à– 16 A 24VAC Acti9 22250 Installation ¼ TZ for Modular 3606480096969

Installation relay 1S+1Ö 16A 24VAC A9C22115 rated operating voltage 250 ... 250 V, rated operating current 16 A, usage category 7, rated actuation voltage 24 ... 24 V, voltage type of operating voltage AC, voltage type of actuation voltage AC, number of contacts as contacts as contact 1. The number of contacts as Opener 1, Max. Bulb load 2000 W, max. Fluorescent lamp load 850 VA, max. Fluorescent lamp load (duo circuit) 1500VA, max. Fluorescent lamp load (parallel compensated) 800VA, number of division units 1, installation depth 43.5 mm, additional equipment possible, protection class (IP) IP20, installation protection Acti 9 iCT. Rated current 16A, 1S, 1Ö, control voltage 24V, 50Hz, insulation voltage (Ui) 500V AC. Switching circuits up to 100 A. Terminals IP 20. Silent switching Mechanical switching position indicator. Installation protectors with pre-selection have a front operating mode selector switch with four switching positions. Compatible with the entire Acti 9 range. The iCT installation protector meets the following standards EN 61095 and IEC 1095. Furthermore, this series is VDE certified.
