£45.56

Schneider Electric A9F06206 Circuit Breaker iC60H 2P 6A B Characteristics 6 Amp B

Name: Schneider Electric A9F06206 Circuit Breaker iC60H 2P 6A B Characteristics 6 Amp B
Brand: Schneider Electric
Price: 32.18 GBP
Availability: InStock

A9F06206

Circuit Breakers

Price History & Forecast

Last 47 days • 47 data points (No recent data available)

Historical

Generating forecast...

Price Distribution

Price distribution over 47 days • 3 price levels

Days at Price

Price Analysis

Most common price: £46 (30 days, 63.8%)

Price range: £31 - £46

Price levels: 3 different prices over 47 days

Description

Circuit breaker Acti 9 iC60H, 10kA (IEC/EN 60898-1), 15kA (IEC/EN 60947-2). 2-pin, rated current 6A, B characteristic, operating voltage (Ue) 380-415V AC, insulation voltage (Ui) 500V AC. Double terminal for cable and pin comb bar on the top and bottom of the device. Jump circuit for low-wear switching of the contacts. Travelling insulation cover. Actuation of the DIN rail mounting element on the front of the device for tool-free installation and easy access for the user. With mechanical front error message indicator (VisiTrip) to indicate overload or short circuit triggers. Safe contact indicator (VisiSafe) of the circuit breaker, when the indicator is green, the safety of voltage clearance on the outlet side. Trigger unit technology - thermomagnetic Can be combined with the Acti 9 iID series FI circuit breakers, as well as the FI Block Vigi iC60. Additional stackable auxiliary modules (optional)- display of switching position, fault triggering, working current trigger, undervoltage trigger, surge trigger. Colour: RAL 9003. The iC60H circuit breaker meets the following standards - IEC/EN 60898-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified.

Key Features

Reliable circuit breaker from Schneider Electric with two poles and a rated current of 6 amps.

Provides protection against overload and short circuit in two-phase circuits.

The circuit breaker has a B characteristic that allows quick shutdown in case of short circuits.

Suitable for use in residential and commercial buildings to protect electrical wiring and equipment from damage.

Meets international safety standards and provides a compact and reliable solution for line protection.

Product Specifications

Brand: Schneider Electric
Model: A9F06206
Size: 6 Ampere B
ASIN: B00B7ZAPSO
Category: DIY & Tools > Electrical > Circuit Breakers
Domain: Amazon UK
Release Date: 08 March 2018
Listed Since: 22 October 2016

Barcode

No barcode data available

Schneider Electric A9F06206 Circuit Breaker iC60H 2P 6A B Characteristics 6 Amp B

Price History & Forecast

Price Distribution

Price Analysis

Description

Key Features

Product Specifications

Barcode

Similar Products You Might Like

Schneider Electric PBT - dit 21 22 A9F04106 Circuit Breaker iC60N, 1P, 6A, C Characteristics, White

Schneider Electric A9D87432 FI/LS Switch iC60N, 4P, 32A, B-Char., 30mA, Type A, 6kA, White

Schneider Electric A9D56613 FI/LS Switch iDPN N Vigi 1P+N, 13A, B-Char, 30mA, Type A, 6kA, 13 Amp

Schneider Electric Residual current circuit breaker IDK 2P 40A 30MA type A, A9Z01240

Schneider Electric Residual Current Circuit Breaker IID 4P 40A 30MA Type B-SI, A9Z61440

Schneider Electric Residual Current Circuit Breaker ACTI9 iID, 4P, 63A, 300mA, Type A, A9Z24463

Schneider Electric A9D32616 FI/LS Switch iDPN N Vigi 1P+N, 16A, C-Char, 30mA, Type A, 6kA, White, 16 Amp

LEGRAND, RX3 Circuit Breaker Thermal Magnetic Circuit Breaker C-Characteristic, 20A, 3-Pole, 6000A Breaking Capacity, 400VAC, 3TE, 419236

Schneider Electric A9D07616 FI/LS Switch IDPN H 1P+N 16A B 30MA Type A

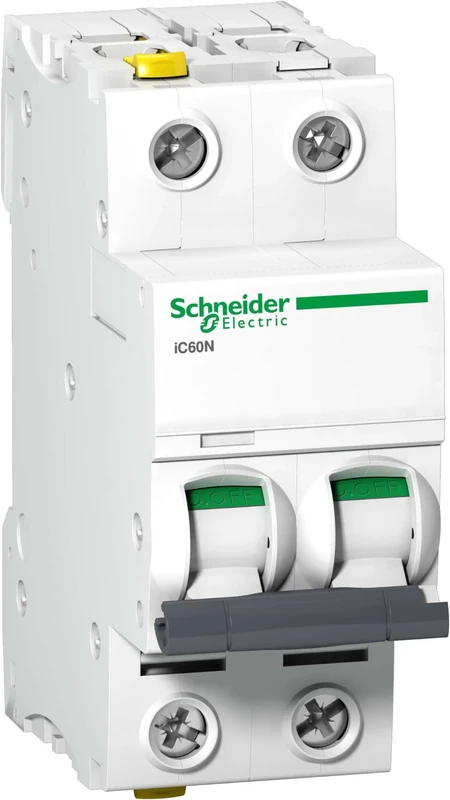

Schneider A9 °F04263 Circuit Breaker IC60 N 2P 63 A, C Characteristic

Schneider Electric A9Z01425 Residual Current Circuit Breaker ID K 4P 25A 30mA Type A 230V 25A

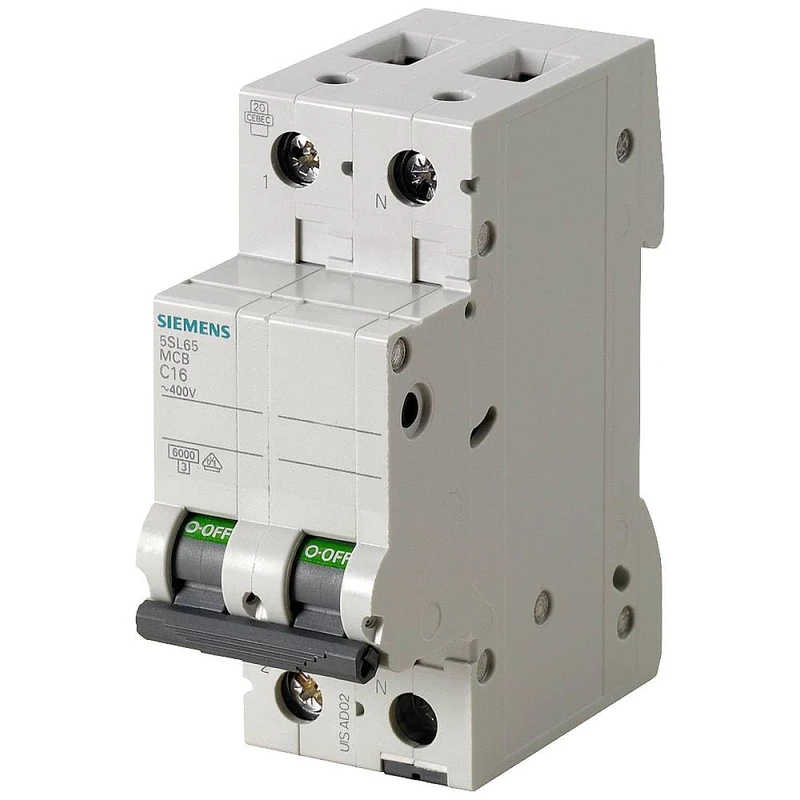

Siemens 5SL6510-6 Miniature Circuit Breaker 6kA 1 P+N B-10A

Siemens 5SL6016-6 Circuit Breaker 230V 6kA 1+N

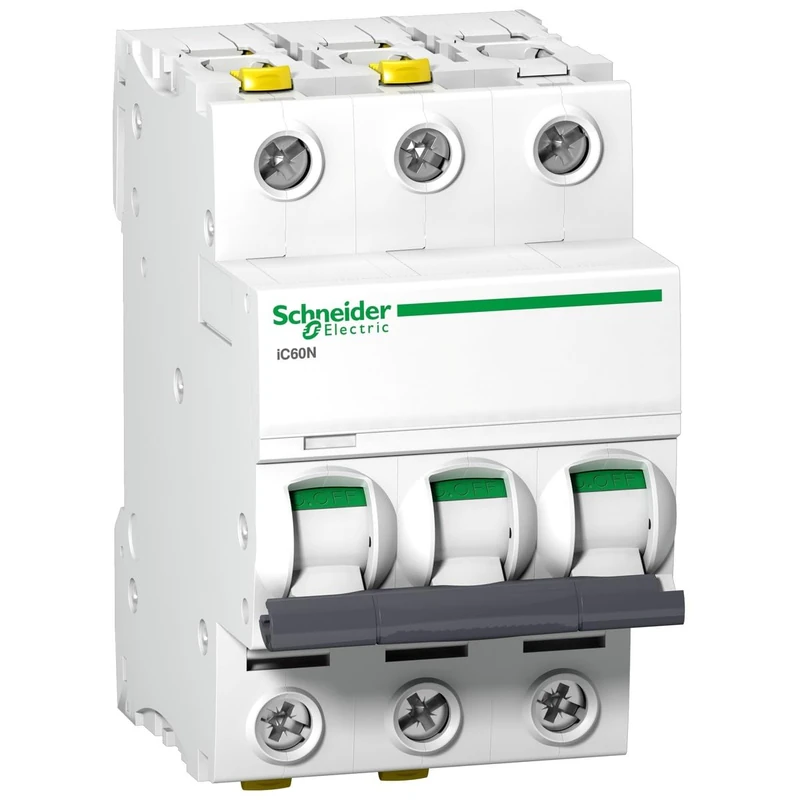

Schneider A9 °F03340 Circuit Breaker IC60 N 3P 40 A w Characteristic

ABB 2 CDS251103R0204 - INT. AUT. S201-C20NA 1P + N 20A C 10KA

Siemens 5sl6 – magnéto-thermique 400 V 6 kA 4 Pole C 20 A

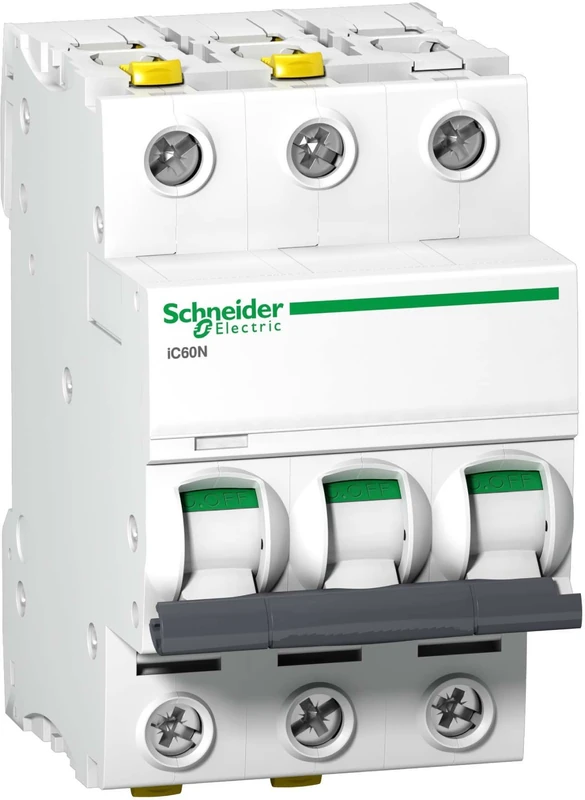

Schneider A9 °F04363 Circuit Breaker IC60 N 3P 63 A, C Characteristic

Legrand leg92898 dx3-id Residual-Current Circuit Breaker 40 A Type A 30 mA TGA 2P

Schneider A9 °F04350 Circuit Breaker IC60 N, 3P, 50 A, C Characteristic

Siemens 5SV13167KK10 FI/LS Compact RCBO 1P+N 6kA TypA 30mA C10 230V, Residual Current and Overload Protection in 1TE (50% Space Saving)

Schneider Electric A9Z01463 Acti 9 Residual Current Circuit Breaker ID K 4P 63A 30mA Type A 230V 63A

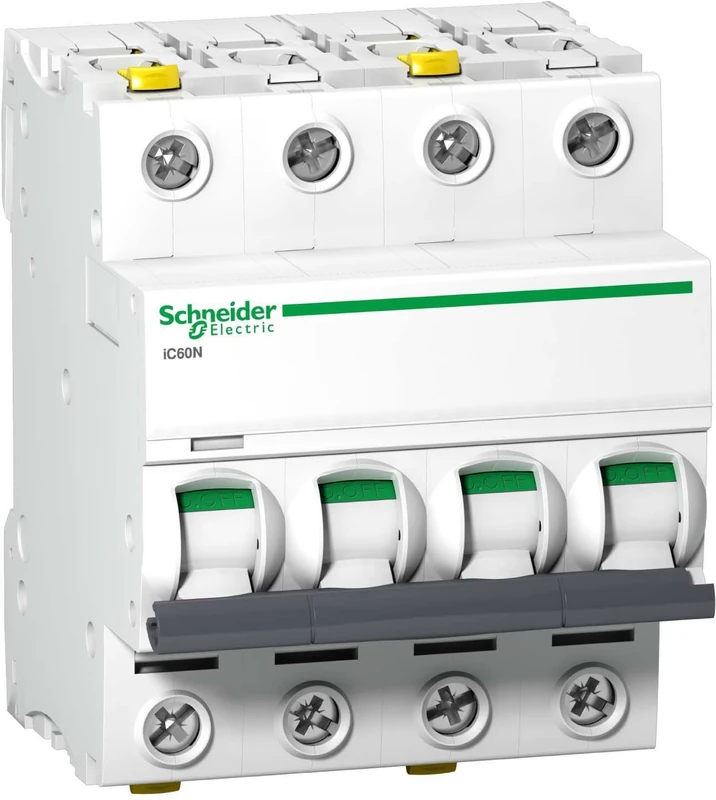

Schneider A9 °F04420 Circuit Breaker IC60 N, 4P, 20 A, C Characteristic
