£61.67

Schneider Electric TeSys D - AC Contactor, 220 V AC, 50/60 Hz, 3 Pole, 3NO, 12A, Fixed & DIN Rail Mounting, LC1D12M7, white

Name: Schneider Electric TeSys D - AC Contactor, 220 V AC, 50/60 Hz, 3 Pole, 3NO, 12A, Fixed & DIN Rail Mounting, LC1D12M7, white
Brand: Schneider Electric
Price: 61.67 GBP
Availability: InStock

White, LC1D12M7

Process Controllers

Price History & Forecast

Last 11 days • 11 data points (No recent data available)

Historical

Generating forecast...

Price Distribution

Price distribution over 11 days • 1 price levels

Days at Price

Price Analysis

Most common price: £62 (11 days, 100.0%)

Price range: £62 - £62

Price levels: 1 different prices over 11 days

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Key Features

3-pole contactor for connection by screw clamp terminals, for motor control and resistive load applications

control circuit voltage: 220 v ac 50/60 hz

rated operational current: 12 a (<= 60 °c) at <= 440 v ac ac-3 for power circuit; 25 a (<= 60 °c) at <= 440 v ac ac-1 for power circuit

3 no pole contact composition; 1 no + 1 nc auxilliary contact composition

operating time: 4-19 ms opening; 12-22 ms closing

; Unit count: 352.0; Included components: TeSys D contactor 3P AC3 12A 220V AC coi

Product Specifications

Brand: Schneider Electric
Model: LC1D12M7
Colour: White
Size: 12a/220v
Format: DIY & Tools
ASIN: B009LAACOE
Category: Business, Industry & Science > Industrial Electrical > Controls & Indicators > Controllers > Process Controllers
Domain: Amazon UK
Release Date: 05 December 2017
Listed Since: 20 November 2013

Barcode

No barcode data available

Schneider Electric TeSys D - AC Contactor, 220 V AC, 50/60 Hz, 3 Pole, 3NO, 12A, Fixed & DIN Rail Mounting, LC1D12M7, white

Price History & Forecast

Price Distribution

Price Analysis

Description

Key Features

Product Specifications

Barcode

Similar Products You Might Like

Schneider Electric TeSys D - AC Contactor, 240 V AC, 50/60 Hz, 3 Pole, 3NO, 32A, Fixed & DIN Rail Mounting, LC1D32U7

Schneider Electric TeSys D - AC Contactor, 110 V AC, 50/60 Hz, 3 Pole, 3NO, 18A, Fixed & DIN Rail Mounting, LC1D18F7

Schneider Electric TeSys D - AC Contactor, 400 V AC, 50/60 Hz, 3 Pole, 3NO, 18A, Fixed & DIN Rail Mounting, LC1D18V7

Schneider Electric, TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 18 A - 240 V AC coil, LC1D18U7

Schneider Electric, TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 40 A - 110 V AC 50/60 Hz coil, LC1D40AF7

Schneider Electric, TeSys D, LC1D95P7, Contactor - 3P(3 NO) - AC-3-440 V 95 A - 230 V AC 50/60 Hz coil

Schneider Electric, TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 18 A - 415 V AC coil, LC1D18N7

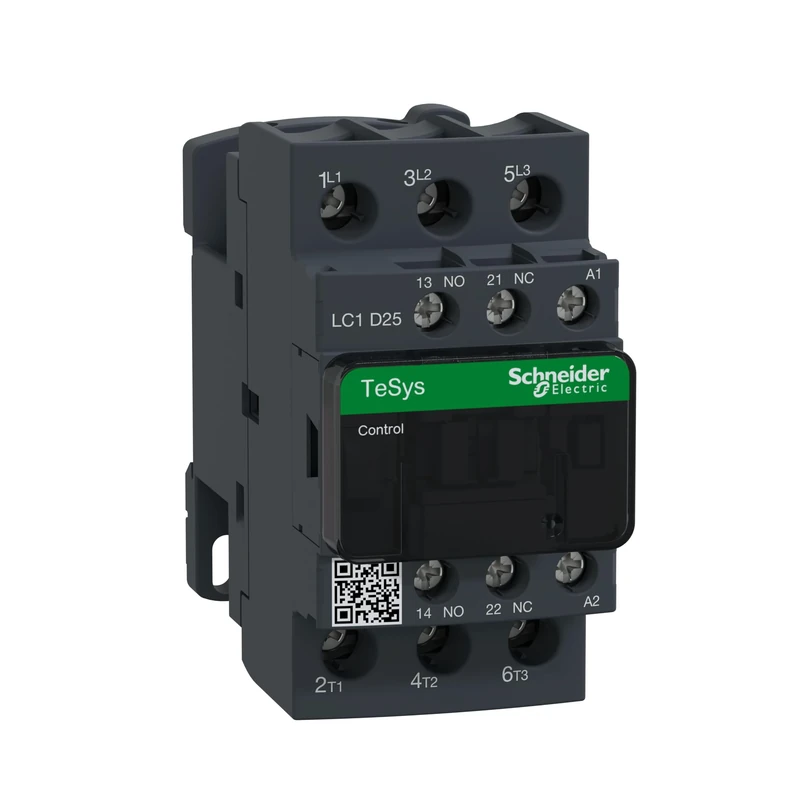

Schneider Electric TeSys D - AC Contactor, 400 V AC, 50/60 Hz, 3 Pole, 3NO, 25A, Fixed & DIN Rail Mounting, LC1D25V7

Schneider Electric TeSys Deca contactor,3P(3NO),AC-3/AC-3e,=440V 12A,120V AC coil,LC1D12G7

Schneider Electric TeSys Deca contactor,3P(3NO),AC-3/AC-3e,=440V 12A,400V AC coil,LC1D12V7

Schneider Electric TeSys Deca contactor,3P(3NO),AC-3/AC-3e,=440V 12A,24V DC low consumption coil,spring,LC1D123BL

Schneider Electric, TeSys D, LC1D25N7, Contactor - 3P(3 NO) - AC-3-440 V 25 A - 415 V AC coil

Schneider Electric, TeSys D, LC1D40AE7, Contactor - 3P(3 NO) - AC-3-440 V 40 A - 48 V AC 50/60 Hz coil

Schneider Electric, TeSys D, LC1D38E7, Contactor - 3P(3 NO) - AC-3-440 V 38 A - 48 V AC 50/60 Hz coil

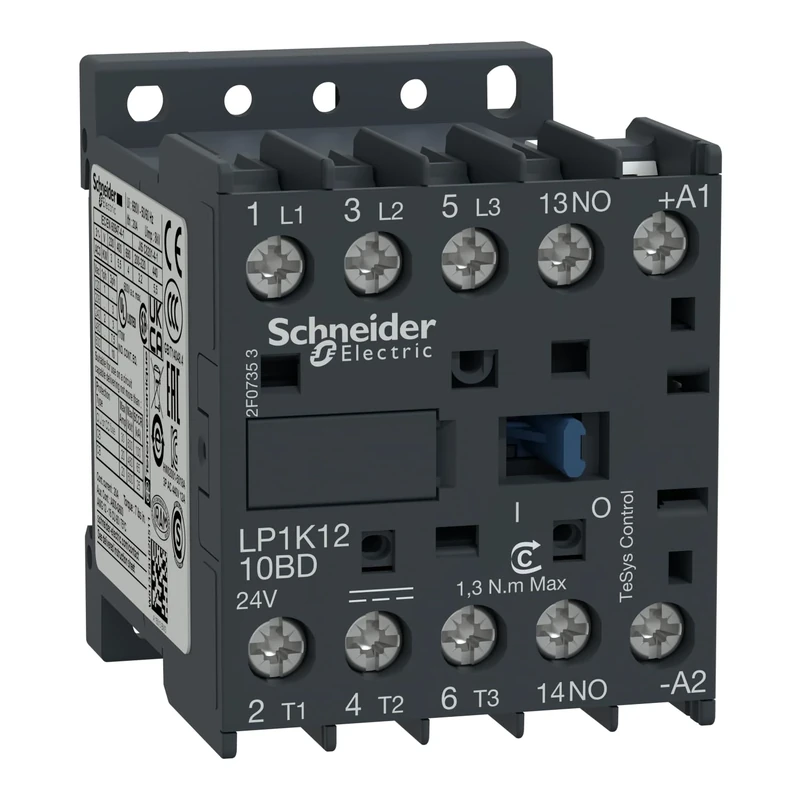

Schneider Electric, TeSys K, LP1K1210JD, Contactor - 3P - AC-3 440 V 12 A - 1 NO aux. - 12 V DC coil
