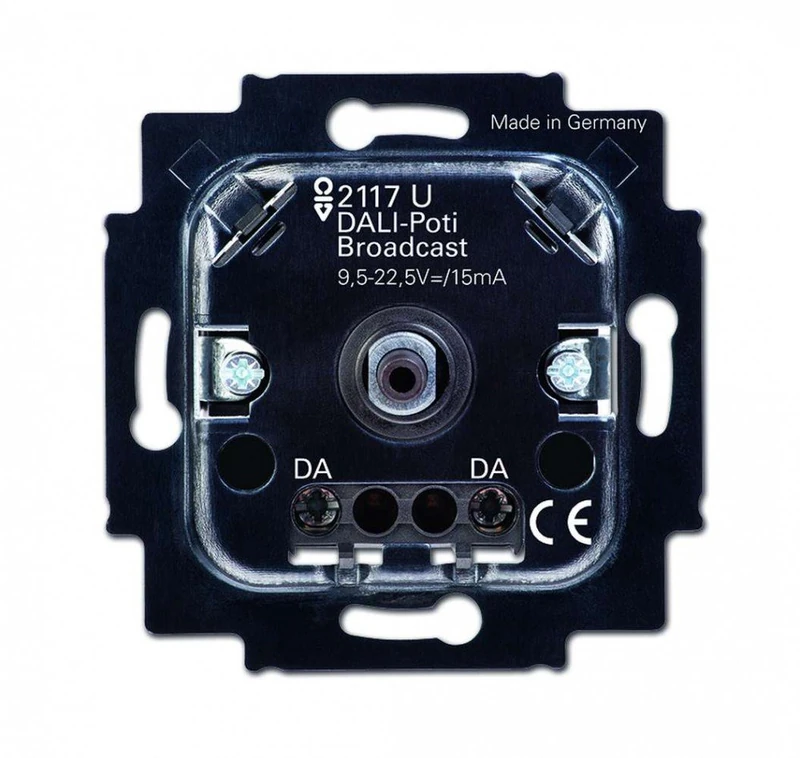

Busch-Jaeger U-DALI 2117 Potentiometer Operator

Busch Jaeger 2117 UBusch-Dimmer Flush-mounted devices DALI Pot use For broadcast operation (central-telegram). For switching and control up to 64 DALI devices according to IEC 62386 (e.g. ballasts and transformers with DALI interface). With rotary actuation and push OFF button. Reverse polarity proof. Switch-on and basic brightness adjustable power failure. With integrated LED orientation light. Colour of the orientation light adjustable (18 presets + OFF). Parallel connection of up to 5 devices in passive mode. Max current consumption.: 15 mA Not suitable for combination with other DALI sensors or centres. To generate the DALI power supply voltage according to IEC 62386 is required; example of Tridonic, Philips, Helvar or BJE-CODE. 2117/11 U. Max. DALI cable length: 300 metres (at 1, 5-2, 5 mm). Without central disk. Protection device: IP 20 Temperature range device: 0°C - 35°C Only install in conjunction with standard flush-mounting boxes according to DIN 49073, part 1 or Busch-Jaeger Art 3040 UP box masonry, 3050 UP box hollow wall or UP box concrete 3060) Specifications
