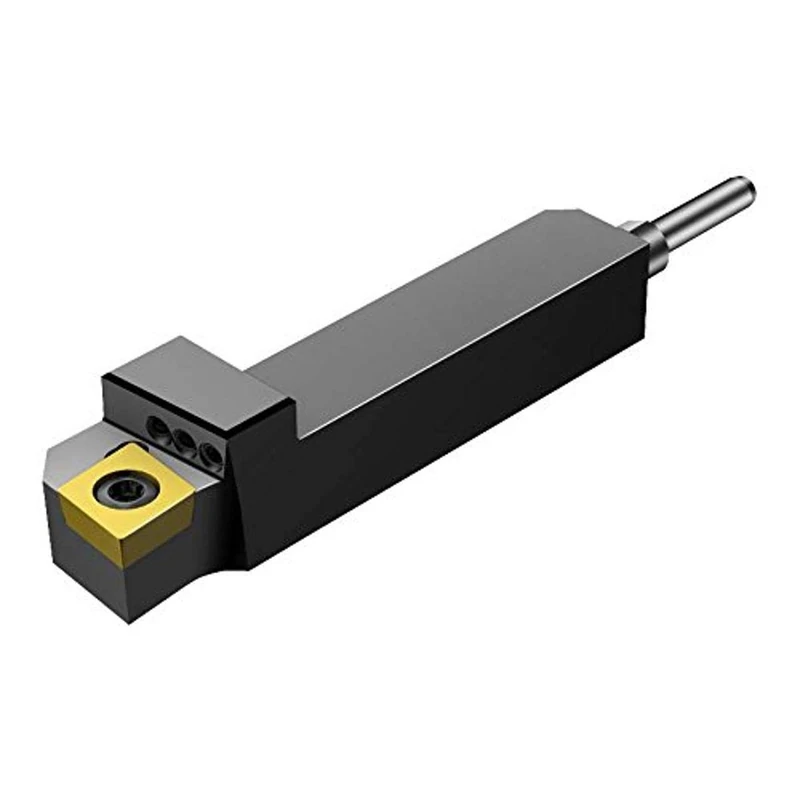

Sandvik Coromant QS-SCLCR083XHP Coroturn 107 Qs Shank Tool For Turning

Part of the CoroTurn 107 product family. CoroTurn 107 is the first choice for external and internal machining of small, long and slender components. Sharp cutting edges and excellent chip control ensure a soft cutting action and low cutting forces, providing an excellent surface finish to the component. Geometries designed for high pressure coolant are also available. PRODUCT SPECIFICATION: ADINTMS, Adaptive Interface Machine Direction: QS-HP shank coupling -inch: 1/2 x 1/2 ; B, Shank Width: 12.7 mm ; B, Shank Width: 0.5 inch ; BAMS, Machine Side Body Angle: 0 deg ; BAWS, Workpiece Side Body Angle: 0 deg ; BMC, Body Material Code: Steel ; CNSC, Coolant Entry Style Code: 1: axial concentric entry ; CP, Coolant Pressure: 80 bar ; CP, Coolant Pressure: 1160.3 lbf/in2 ; CUTINT_MASTER, Part 2 Of Cutting Item Interface Identifiers: CCMT 09T308 ; CXSC, Coolant Exit Style Code: 7: axial inclined focused exit with nozzle ; DPC, Damping Property: 0 ; GAMO, Orthogonal Rake Angle: 0 deg ; H, Shank Height: 12.7 mm ; H, Shank Height: 0.5 inch ; HAND, Hand: R ; HF, Functional Height: 12.7 mm ; HF, Functional Height: 0.5 inch ; KAPR, Tool Cutting Edge Angle: 95 deg ; LAMS, Inclination Angle: 0 deg ; LF, Functional Length: 70 mm ; LF, Functional Length: 2.75591 inch ; MIIDM, Master Insert Identification: CCMT 09 T3 08 ; OHX, Maximum Overhang: 21 mm ; OHX, Maximum Overhang: 0.826772 inch ; PSIR, Tool Lead Angle: -5 deg ; RMPX, Maximum Ramping Angle: 0 deg ; TQ, Torque: 3 Nm ; TQ, Torque: 2.21269 ft lbs ; WF, Functional Width: 12.7 mm ; WF, Functional Width: 0.5 inch ; WT, Weight Of Item: 0.123 kg ; WT, Weight Of Item: 0.2706 lbs ; Box Contains QS-SCLCR083XHP + incl. in box: 5513 020-10, Screw, (pcs. = 1, incl.); 5691 026-13, Nozzle, (pcs. = 3, incl.); 5692 033-05, Coolant tube, (pcs. = 1, incl.); 5680 049-01, Key, (pcs. = 1, incl.);
