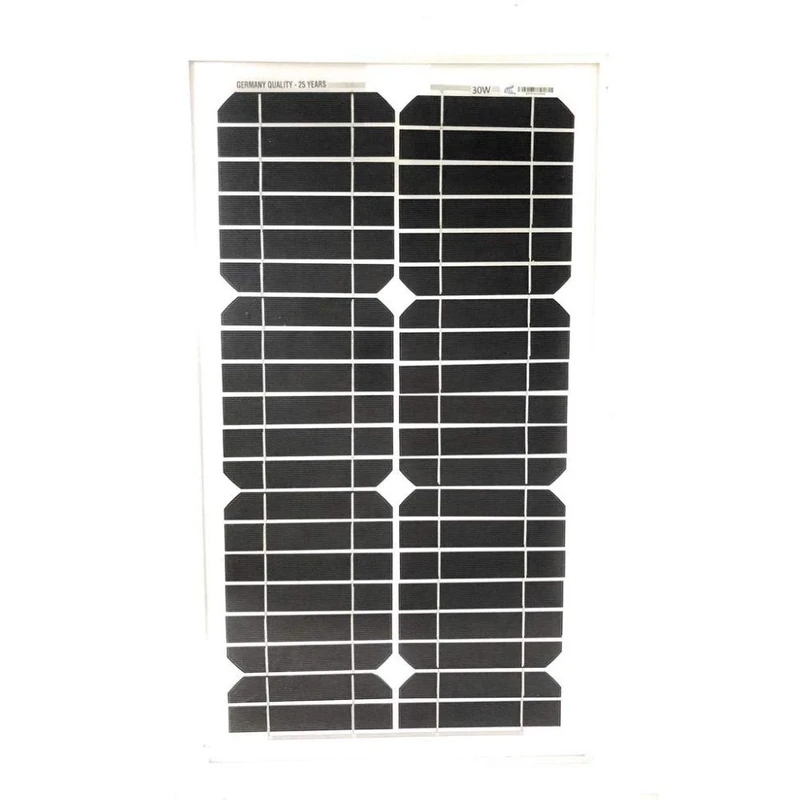

Offgridtec 30 W Solar Panel Mono 12 V Solar Panel Solar Cell Photovoltaic Module – 3/2001 ONWARDS 001530

High-quality monocrystalline solar module, ideal for charging 12 V batteries, only A-grade cells are used, i.e. only cells that have cut above average in the performance tests

The most important technical data at a glance: power (Pmax): 30 W, voltage (Vmp): 20 V, max. Current (Imp): 1.5A ---- Open circuit voltage (Voc): 24V --- Short circuit current (Isc): 1.62A --- Max. System voltage: 600VDC --- Ambient temp. : -40°C to +85°C --- Dimensions (W x L x H): 560 mm x 360 mm x 25 mm --- Weight: 2.5 kg

Bypass diodes: 1 piece IOSQO50 – protection class junction box: IP65 – temperature coefficient: -0.45%/°C – number of cable inputs: 2 x PEG screw connection – cable connection terminal: screw terminal and integrated crimp connector/terminal size: M3.5 ring cable lug – maximum cable cross section: 6 mm²

Permanent monitoring of the module quality and performance data through tests under real and laboratory conditions. Each Offgridtec solar panel is subjected to a flash test before delivery. If you have any questions, Offgridtec GmbH customer service is permanently available. The module is delivered without a connection cable. A matching connection cable from the manufacturer for connection to a charge controller can be found under the ASIN B0784BV. PS2

The cell efficiency of the Offgridtec Mono series is 20.4% (module efficiency depending on the model >18% or >18.5% and is therefore higher than most modules with similar technical specifications – this is particularly noticeable thanks to a positive power tolerance and measurably more yield under real conditions – Offgridtec solar panels with Bypass dio. (quantity varies depending on model), which reduces power loss in shade
