£71.78

PeakTech LCR Meter, Max. 200 µF / 20 H / 20 Mohm, 1 Unit, P 3730

Name: PeakTech LCR Meter, Max. 200 F / 20 H / 20 Mohm, 1 Unit, P 3730
Brand: PeakTech
Price: 77.59 GBP
Availability: InStock

Blue, P 3730

Measuring & Layout Tools

Price History & Forecast

Last 10 days • 10 data points (No recent data available)

Historical

Generating forecast...

Price Distribution

Price distribution over 10 days • 3 price levels

Days at Price

Price Analysis

Most common price: £78 (7 days, 70.0%)

Price range: £72 - £78

Price levels: 3 different prices over 10 days

Description

A new and interesting combination in a modern design, for testing capacitors in the areas of 2 nF. 200 microF, coils of 2 mH - 20 H and resistors of 200 Ω. 20 MΩ. The 3 x 12-digit, 21 mm LCD display (max 1,999) allows you to read the values quickly and accurately and also has a diode, continuity test and transistor test function. The capacitors to be measured can be plugged directly into the clamping socket or connected to the supplied test leads. Features: hFE test function, diode and fast continuity test, battery status indicator. Safety: EN 61010-1 CAT II. Accessories: Holster, tests, battery and operating instructions (English language not guaranteed). Specifications: Capacity 0...2/20/200nF/2/20/200 microF accuracy 1.0% + 5 digits resolution 1pF. Inductive 0...2/20/200 mH/2/20 H accuracy 2.0% + 8 pieces. Resolution 1 microH. Resistance 0...200 Ω/2/20/200 kΩ/2/20 MΩ Accuracy 0.8% + 1 Digit Resolution 0.1 Ω. Measurement sequence: 2-3 measurements per second.

Key Features

Practical device for quick component testing.

Inductance, capacitance and resistance measurement.

Quick continuity test.

HFE test and diode test.

Safety: EN 61010-1; CAT II.

Product Specifications

Brand: PeakTech
Model: P 3730
Colour: Blue
ASIN: B006KCP0BQ
Category: DIY & Tools > Power, Garden & Hand Tools > Measuring & Layout Tools
Domain: Amazon UK
Release Date: 02 January 2019
Listed Since: 13 September 2012

Barcode

No barcode data available

PeakTech LCR Meter, Max. 200 µF / 20 H / 20 Mohm, 1 Unit, P 3730

Price History & Forecast

Price Distribution

Price Analysis

Description

Key Features

Product Specifications

Barcode

Similar Products You Might Like

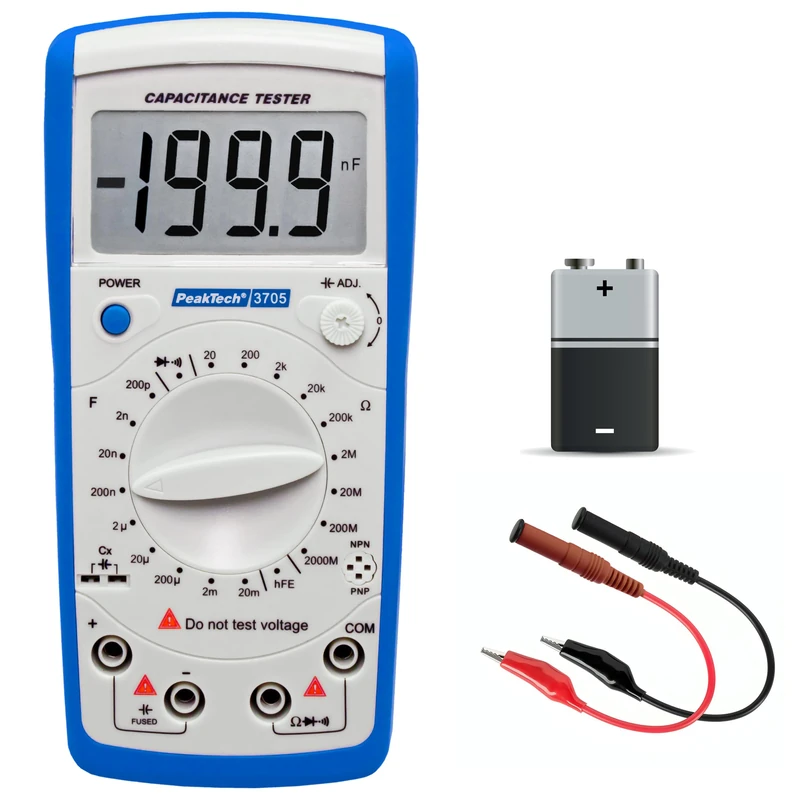

PeakTech P 3705 Digital Capacitance Meter, 2000 Mohm Resistance, Continuity Tester, Diode Test, Transistor Test

PeakTech True RMS Digital Multimeter Counts with Continuity Tester

PeakTech Multimeter, P 3320 - Digital with TrueRMS, 10A AC/DC, 6000 Counts, Portable, Voltmeter, Autorange, Continuity Tester, Power Supply, Data Hold, LCD Display, CAT III 600 V

PeakTech Digital Multimeter with LCR meter, 6000 Counts, Auto-range, Ammeter, Illuminated LCD Display - Cat III 1000 V

PeakTech 1670 - Digital Clamp Meter with True RMS and Bluetooth 4.0, 1000A AC/DC, LED Lighting, 50.000 Counts, Multimeter, Current Measurement, TÜV/GS, Voltmeter, Ammeter, Data Hold, LCD Display

PeakTech 1000 A AC Current Clamp Electrical Tester – 3999 – Digits Voltage Continuity Tester Multimeter/Voltmeter/Diode Test Thermometer Capacity Test – 1 x P 1610

PeakTech P 4350 - Current Clamp Meter with 1 mA Resolution, 80A AC/DC, TrueRMS & DMM, Auto-range, 4.000 Counts, Contactless Voltmeter, Ammeter, Continuity Tester, LCD Display - CAT III 600 V

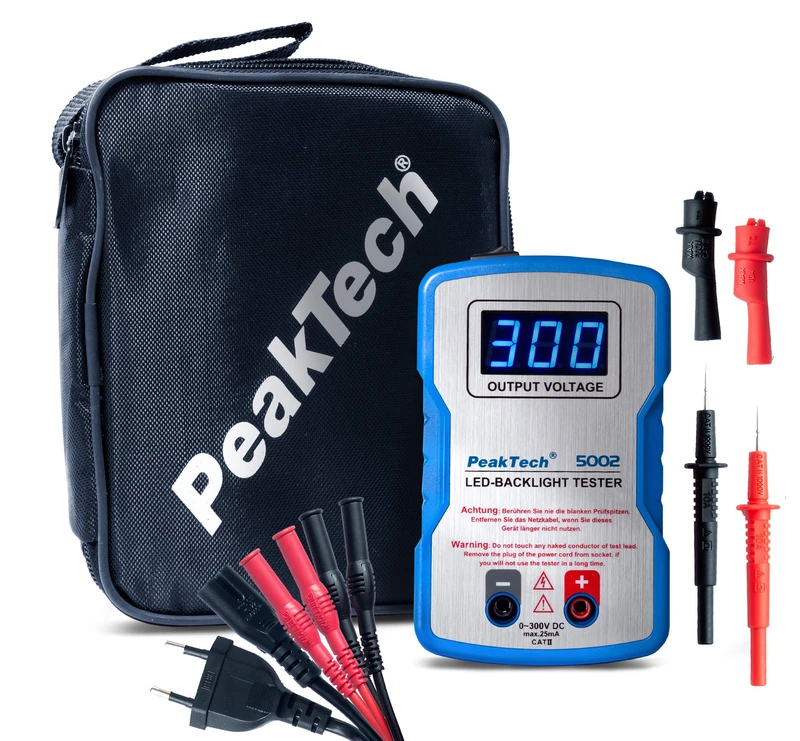

PeakTech P 5002 LED Tester, LED Panel Component Tester, 0-300V DC, 100-200V AC, EN 61010-1, Modern, White

PeakTech P 1640 True RMS 1000A AC/DC Clamp & Multimeter

PeakTech P 4075 Digital multimeter 4 5,6 digits with USB LAN Bluetooth RS-232 SD card interface

PeakTech 1090-2-pole Pen Type Meter, Digital Multimeter with 2.000 Counts, Bar graph & LCD display, Voltage Tester, Flashlight & FI Test, Polarity Detection, Resistance, Capacitance, AC/DC - 690V

PeakTech Digital Current Meter Meter with Multimeter, P 1650, 400A AC/DC, True RMS, 4000 Counts, Contactless Voltmeter, Ammeter, Continuity Tester, Data Hold

PeakTech 4096 - Digital multimeter 200000 RMS graphic accounts (up to 100 kHz) with LAN and USB interface, RS-232 with 4 "TFT color display, 1 million points - Max 150 values / sec

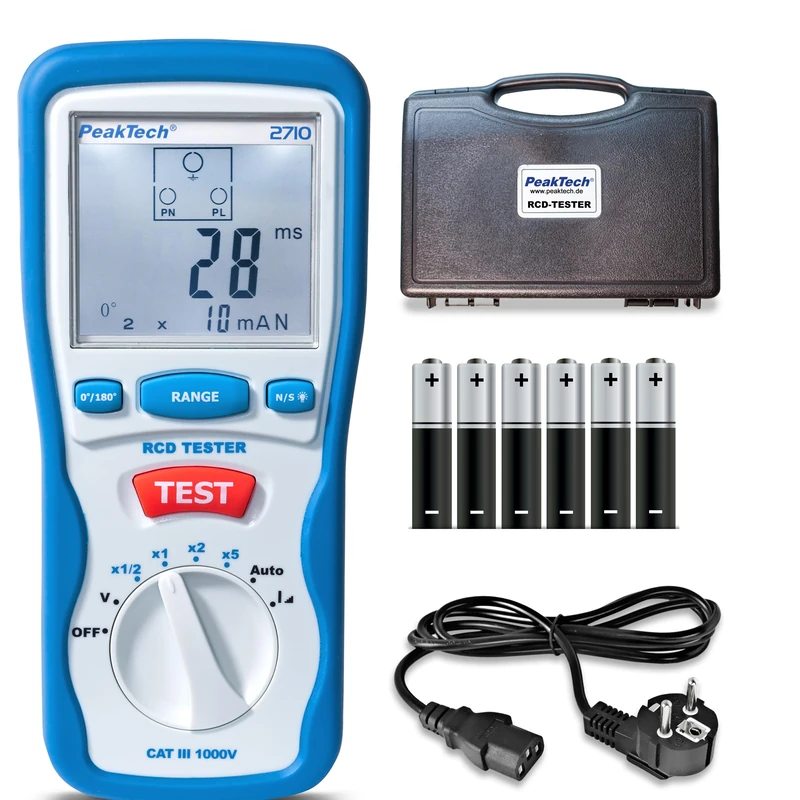

PeakTech P 2710 Digital RCD Tester - CAT III 600 V
