£643.15

Hager X160 – Automatic Switch X160 3P3D 40 KA 160 A TM Adjustable Fixed/or

Name: Hager X160 - Automatic Switch X160 3P3D 40 KA 160 A TM Adjustable Fixed/or
Brand: Hager
Price: 643.15 GBP
Availability: InStock

x160

Price History & Forecast

Last 19 days • 19 data points (No recent data available)

Historical

Generating forecast...

Price Distribution

Price distribution over 19 days • 1 price levels

Days at Price

Price Analysis

Most common price: £643 (19 days, 100.0%)

Price range: £643 - £643

Price levels: 1 different prices over 19 days

Description

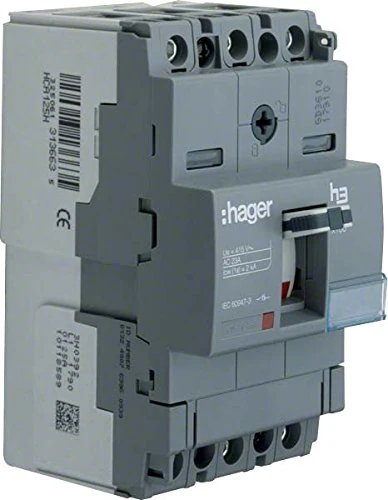

Power switch Size x160 3-pin 40KA 160 A. Power switch in accordance with IEC 60947 Size x160, with thermal (Adjustable) and magnetic (fix) release to protect electrical installations and netting. Mounting onto a DIN rail or mount plate. On the the position of the Knebels are three different operating conditions at a glance (a = at the top, off = below, as is = middle position). Frame clips for copper cable are included as standard. The optional tact switches come with a set of mechanical test button. With the different accessories can be the function of the power switch. Rated continuous current IU is 160 A. Rated Short circuit free state of switching power supply ICU at 400 V, 50 Hz is 40 kA. Überlastauslöser Power Setting is 100.. 160 A. adjustment range of the Kurzzeitverzögerten Short circuit trigger is 0.. 0 A. adjustment range of the Unverzögerten Short circuit trigger is 1600.. 1600 A. Built in Erdschlus protector is no. Type of connection most circuit is screw connection. Device is Ebauart

Key Features

Rated continuous current IU = 160 A

Überlastauslöser energy adjustment = 100.. 160 A

Adjustment range the Kurzzeitverzögerten short circuit shutter = 0.. 0 A

Adjustment range the Unverzögerten short circuit shutter = 1600.. 1600 a

International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.

Product Specifications

Brand: Hager
Model: x160
Format: DIY & Tools
ASIN: B005MIATDI
Domain: Amazon UK
Listed Since: 09 June 2015
