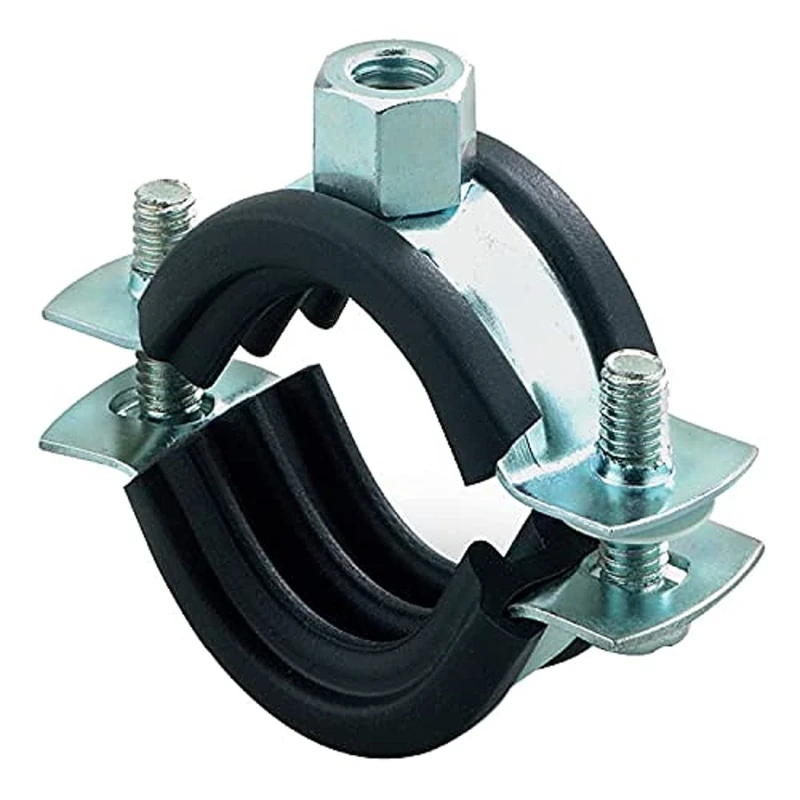

fischer -fischer FRS 72-80, 8 M/M 10 91489 Clamp

Top Features Sound insulation insert. Two screws allow for ideal adaptation to the outer pipe diameter. Loss protection of screw. Fire protection test R120. The advantages / Product description The two-screw pipe clamp with combination connecting thread. Advantages The fire test report guarantees independently tested functional safety. The two screws allow an easy adjustment to suit the outer pipe diameter. The combination connecting nut with thread M8 / M10 enables optimised mounting choices. The sound insulation insert offers noise protection and prevents contact corrosion. The screw's safety feature ensures trouble-free installation. The fischer pipe clamp FRS is a two-screw pipe clamp made from zinc-plated steel in material quality DD11 with an M8/M10 combination connecting thread. The two-screw version enables optimised adjustment in line with the outer diameter of the pipe. Together with the combination connecting thread, this increases flexibility. This enables pipelines with an outer diameter of 12 to 168 mm to be securely fixed with a threaded rod or stud screw indoors in accordance with the fire protection requirements of fire resistance class R 120 and MLAR. With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109. The fischer FRS is suitable for applications in the temperature range from -40°C to +100°C. Properties Material: steel DC01 (material no. 1.0330) acc. to DIN EN 10130 Zinc plating: electro zinc plated Connecting nut: resistance welded, M8 / M10, SW 13 Locking screw: flat head screw with combination recessed head Material sound insulation insert: EPDM; chlorine-free; silicone-free Sound insulation: for DIN 4109 Temperature range: -40 °C to +100 °C Hardness: 55 ± 5° Shore A Fire behaviour: DIN 4102: Class B2 The two-screw pipe clamp with combination connecting thread. Advantages The fire test report guarantees independently tested functional safety. The two screws allow an easy adjustment to suit the outer pipe diameter. The combination connecting nut with thread M8 / M10 enables optimised mounting choices. The sound insulation insert offers noise protection and prevents contact corrosion. The screw's safety feature ensures trouble-free installation. The fischer pipe clamp FRS is a two-screw pipe clamp made from zinc-plated steel in material quality DD11 with an M8/M10 combination connecting thread. The two-screw version enables optimised adjustment in line with the outer diameter of the pipe. Together with the combination connecting thread, this increases flexibility. This enables pipelines with an outer diameter of 12 to 168 mm to be securely fixed with a threaded rod or stud screw indoors in accordance with the fire protection requirements of fire resistance class R 120 and MLAR. With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109. The fischer FRS is suitable for applications in the temperature range from -40°C to +100°C. Properties Material: steel DC01 (material no. 1.0330) acc. to DIN EN 10130 Zinc plating: electro zinc plated Connecting nut: resistance welded, M8 / M10, SW 13 Locking screw: flat head screw with combination recessed head Material sound insulation insert: EPDM; chlorine-free; silicone-free Sound insulation: for DIN 4109 Temperature range: -40 °C to +100 °C Hardness: 55 ± 5° Shore A Fire behaviour: DIN 4102: Class B2 Application and approval Applications Secure fixing for pipes with threaded rods or stud screws (also when there are fire protection requirements) Approvals ETA-21/0253 GS 3.2/14-175-2 FEB/FS-75/13 - 2 Applications Secure fixing for pipes with threaded rods or stud screws (also when there are fire protection requirements) Approvals ETA-21/0253 GS 3.2/14-175-2 FEB/FS-75/13 - 2 Applications Secure fixing for pipes with threaded rods or stud screws (also when there are fire protection requirements) Approvals ETA-21/0253 GS 3.2/14-175-2 FEB/FS-75/13 - 2 Assembly instruction Functionality Functionality
