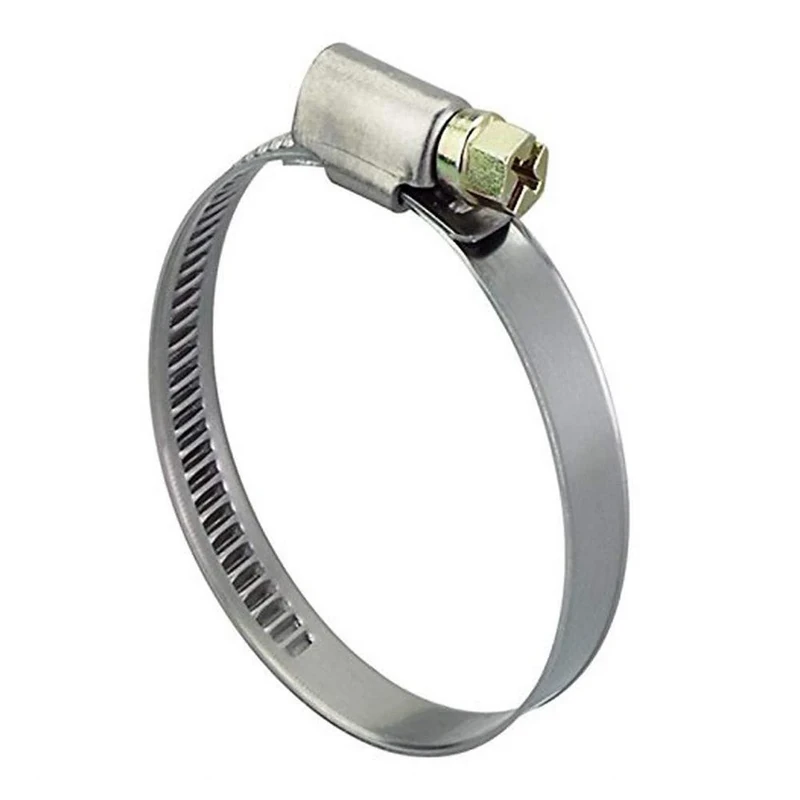

fischer Fischer SGS 9, W220to 32Hose Clips 45521

Top Features Crimped band edges. Short housing base. Combination cross-recess thread. The advantages / Product description The hose clamp for large expansion areas. Advantages The crimped band edges offer protection against damage to the hose. The short base of the hosing allows an ideal adjustment and high, radial forces on the hose diameter. The screw's combination cross-drive thread enables installation flexibility. The high-quality fischer hose clamp SGS with a 32-50 mm clamping range enables hoses to be sealed or hoses to be fastened to nozzles. The crimped band edges offer reliable protection against damage to the hose. The short base of the housing allows for ideal adjustment and high, evenly distributed radial forces on the hose diameter. The combination cross-drive thread increases installation flexibility. Properties Material class: W2 Worm: CQ 15 (material no. 1.1132) acc. to DIN EN 10263 Housing and band: chromium steel (material no. 1.4016) acc. to DIN EN 10088 or equivalent corrosion-resistant steel The hose clamp for large expansion areas. Advantages The crimped band edges offer protection against damage to the hose. The short base of the hosing allows an ideal adjustment and high, radial forces on the hose diameter. The screw's combination cross-drive thread enables installation flexibility. The high-quality fischer hose clamp SGS with a 32-50 mm clamping range enables hoses to be sealed or hoses to be fastened to nozzles. The crimped band edges offer reliable protection against damage to the hose. The short base of the housing allows for ideal adjustment and high, evenly distributed radial forces on the hose diameter. The combination cross-drive thread increases installation flexibility. Properties Material class: W2 Worm: CQ 15 (material no. 1.1132) acc. to DIN EN 10263 Housing and band: chromium steel (material no. 1.4016) acc. to DIN EN 10088 or equivalent corrosion-resistant steel Application and approval Applications Sealing of hoses Fixing hoses to adapters Applications Sealing of hoses Fixing hoses to adapters Assembly instruction Functionality Functionality
