Starrett 256MPN-25 Disc-Type Micrometer, Plain Thimble, 0-25 mm Range, 0.01" Graduation, +/-0.003 mm Accuracy

Name: Starrett 256MPN-25 Disc-Type Micrometer, Plain Thimble, 0-25 mm Range, 0.01" Graduation, +/-0.003 mm Accuracy
Brand: Starrett

256MPN-25

Outside Micrometres

Price History & Forecast

No Price Data Available

Price history will appear here once data is collected from Amazon.

Price Distribution

No price data available for histogram

Description

It is used to measure the thickness of workpieces such as ribs, bridges, slats, cutting edges on shaping tools and the tendon strength of serrations. Due to the large anvil and large spindle area, the 25mm size is suitable for measuring the thickness of board materials such as paper, cardboard, rubber and plastic. The combination of ratchet and speeder ensures even pressure and faster adjustment on all sizes. Streamlined tapered frame for use in tight slots and tight spaces. Anvil and spindle discs have a diameter of 12.7 mm and taper to a rim thickness of 0.4 mm, allowing them to penetrate into tight grooves and depressions. Rigid, one-piece frame made of drop forged steel. Extremely hard and stable one-piece spindle. Micro-lapped measuring surfaces. Quick and easy to adjust. Starrett Verarbeitung. The measurement accuracy of this tool is +/- 0.003mm across the entire area and +/- 0.004mm at the edges.

Key Features

Starrett Satin chrome finish, no glare, resists rust.

Advanced sleeve design with staggered lines and unique numbers for precise and easy readability.

Quick to read digits for every thousandth of inch tools.

Knurled nut for quick and secure locking

The balanced frame and design of the thimble ensure easy handling and better readability

Product Specifications

Brand: Starrett
Model: 256MPN-25
ASIN: B000VDVP2I
Category: Business, Industry & Science > Test & Measurement > Dimensional Measurement > Micrometres & Accessories > Outside Micrometres
Domain: Amazon UK
Listed Since: 26 March 2016

Barcode

No barcode data available

Starrett 256MPN-25 Disc-Type Micrometer, Plain Thimble, 0-25 mm Range, 0.01" Graduation, +/-0.003 mm Accuracy

Price History & Forecast

No Price Data Available

Price Distribution

Description

Key Features

Product Specifications

Barcode

Similar Products You Might Like

Starrett 256PN-1 Disc-Type Micrometer, Plain Thimble, 0-1" Range, 0.001" Graduation, +/-0.00015" Accuracy

Starrett 756FL-1 LCD Disc-Type Micrometre, Friction Thimble, Lock Nut, 0-1" Range, 0.00005" Graduation

Starrett 256MRL-25 Disc-Type Micrometer, Ratchet Stop, Lock Nut, 0-25 mm Range, 0.01" Graduation, +/-0.003 mm Accuracy

Starrett Precision Mechanical Micrometer 25mm

Starrett 256RL-1 Disc-Type Micrometer, Ratchet Stop, Lock Nut, 0-1" Range, 0.001" Graduation, +/-0.00015" Accuracy

Starrett 263MP Micrometer Head, 0-25 mm Range, 0.01 mm Graduation, +/-0.002 mm Accuracy, Plain Thimble

Starrett 436.1MXFL-25 Outside Micrometre, Friction Thimble, Lock Nut, Carbide Faces, 0-25mm Range, 0.01mm Graduation, +/-0.002mm Accuracy

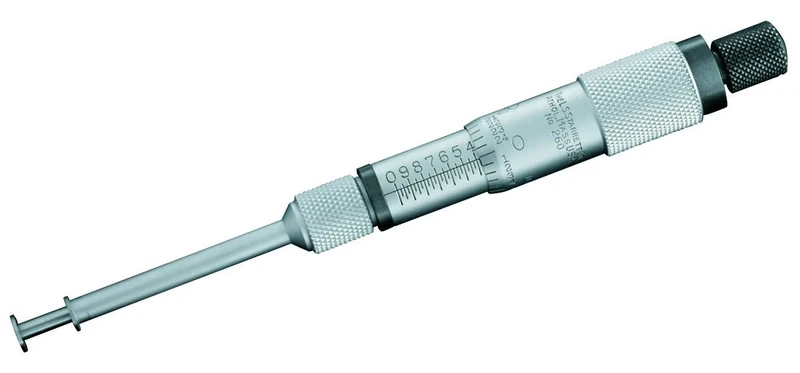

Starrett 260MZ Groove Micrometer, 1.27-26.27 mm Range, 0.01 mm Graduation

Starrett 263ML Micrometer Head, 0-25 mm Range, 0.01 mm Graduation, +/-0.002 mm Accuracy, Plain Thimble, Lock Nut

Starrett 577MXP Micrometre, Plain Thimble, Carbide Faces, 0-25mm Range, 0.01mm Graduation, Full Finish Tapered Frame

Starrett 262MRL Micrometer Head, Non-Rotating Spindle, 0-25 mm Range, 0.01 mm Graduation, +/-0.002 mm Accuracy, Ratchet Stop Thimble, Lock Nut

Starrett V216MXRL-25 Digital Micrometer, Ratchet Stop, Lock Nut, Carbide Faces, 0-25 mm Range, 0.001 mm Graduation, +/-0.002 mm Accuracy

Starrett 120MZ-225 Dial Calliper, Stainless Steel, Yellow Face, 0-225 mm Range, +/-0.03 mm Accuracy, 0.02 mm Resolution

Starrett 762MEXFL-25 Digital Micrometer Head, Non-Rotating Spindle, 0-25mm Range, 0.001mm Graduation, +/-0.003mm Accuracy, Friction Thimble, Lock Nut, Carbide Face

Starrett V263MRL Micrometer Head, 0-25 mm Range, 0.001 mm Graduation, +/-0.00075" Accuracy, Ratchet Stop Thimble, Lock Nut

Starrett 216MXRL-25 Digital Micrometer, Ratchet Stop, Lock Nut, Carbide Faces, 0-25 mm Range, 0.01 mm Graduation, +/-0.002 mm Accuracy

Starrett 120M-225 Dial Calliper, Stainless Steel, Yellow Face, 0-225 mm Range, +/-0.03 mm Accuracy, 0.02 mm Resolution

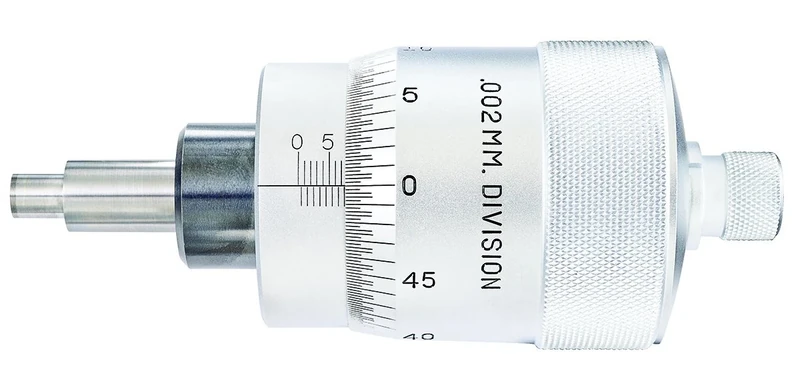

Starrett 465MXSP-25 Large Micrometre Head, 0-25mm Range, 0.002mm Graduation, +/-0.00125mm Accuracy, Plain Thimble, Carbide Face
